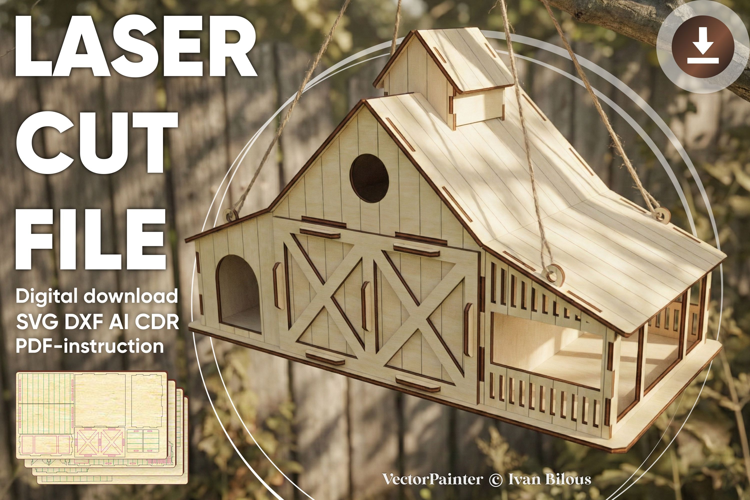

Barn Bird's feeder - laser cut file, Glowforge pattern

Laser cut design "Bird Feeder". Vector plan for laser cutting machine

Material thickness (versions of the files): 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)

Sizes:

3 mm thickness: 320 x 170 x 201 mm (12,60 x 6,69 x 7,91'')

1/8''(3.175mm) thickness: 339 x 180 x 213 mm (13,33 x 7,08 x 8,38'')

4 mm thickness: 427 x 227 x 268 mm (16,80 x 8,92 x 10,55'')

6 mm thickness: 640 x 340 x 402 mm (25,20 x 13,39 x 15,83'')

1/4''(6.35mm) thickness: 677 x 360 x 425 mm (26,67 x 14,17 x 16,75'')

Work area:

3 mm thickness: 860 x 487 mm (33,86 x 19,17'')

1/8''(3.175mm) thickness: 910 x 515 mm (35,83 x 20,29'')

4 mm thickness: 1147 x 649 mm (45,14 x 25,56'')

6 mm thickness: 1720 x 974 mm (67,72 x 38,35'')

1/4''(6.35mm) thickness: 1820 x 1031 mm (71,67 x 40,58'')

Biggest part:

3 mm thickness: 320 x 170 mm (12,60 x 6,69'')

1/8''(3.175mm) thickness: 339 x 180 mm (13,33 x 7,08'')

4 mm thickness: 427 x 227 mm (16,80 x 8,92'')

6 mm thickness: 640 x 340 mm (25,20 x 13,39'')

1/4''(6.35mm) thickness: 677 x 360 mm (26,67 x 14,17'')

In the file:

green color - score/drawing (cut mode with low power and high speed)

blue color - engrave

pink color - cut

black color - cut

What you receive:

You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:

the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction

If you have any questions feel free to contact me:)
