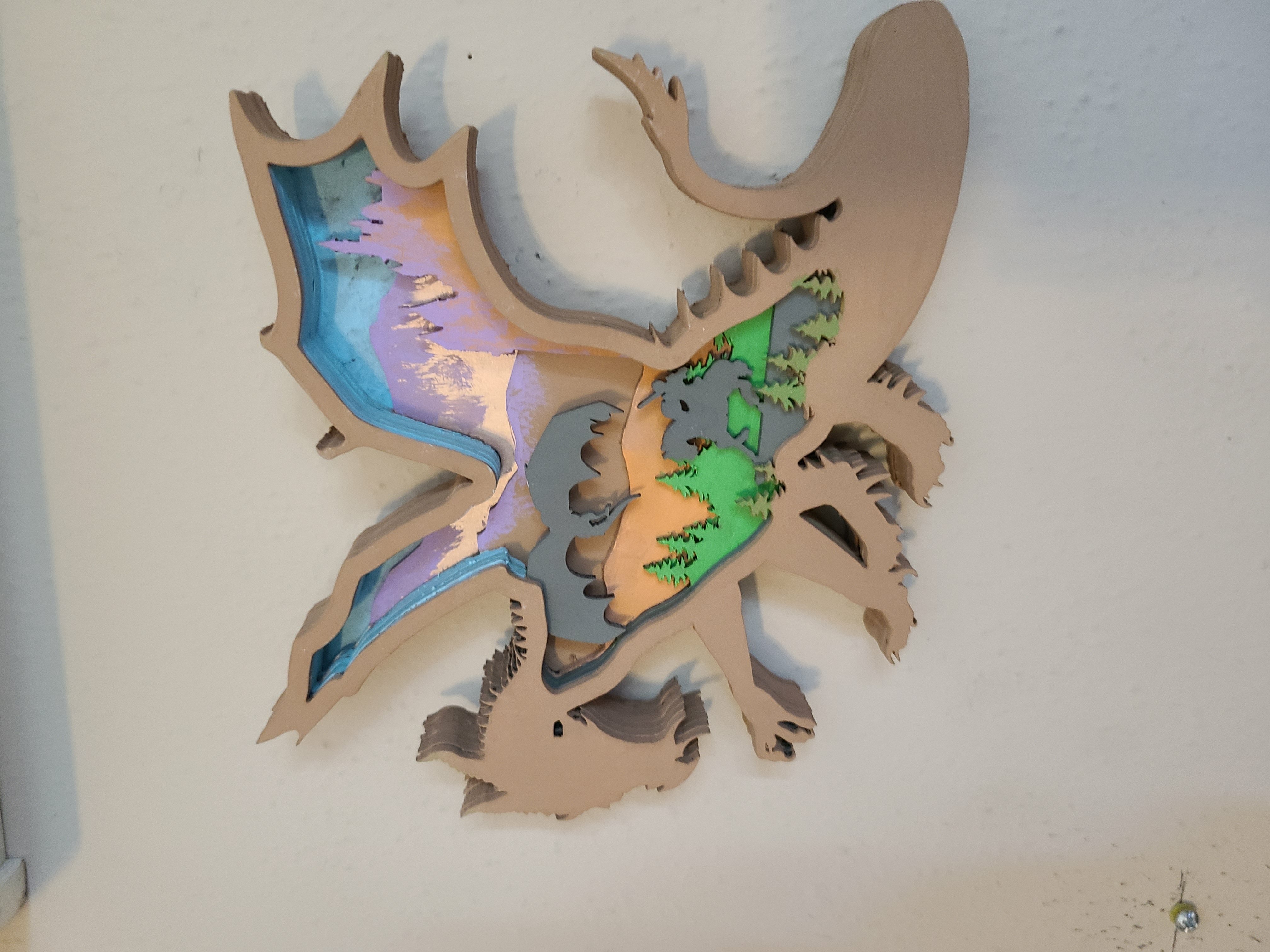

Dragon / Multi Layer SVG DXF AI Files

Dragon / Multi Layer SVG DXF AI Files

This is a project for Glowforge and other CNC machines. This is a vector drawing in digital format. Optimalised for laser cutting.

The finished size of the design is 11,75"x9,8" (width x height) with 7 layers. You can resize the files if you want to.

The design comes with an arrangement of the cutting files for 3 and a half pieces of 12"x20" standard size Glowforge sheets.

All files are archived. Just download the file, modify the design layout to suit your requirements, and you're done. After cutting, you can paint in any color or decorate with decorative elements.

You will get a ZIP archive that includes, DXF/SVG/EPS/AI/PDF files.

Just download the ZIP file, extract it, modify it if you want or just cut it out and you're done. After cutting, you can paint, or add a colored glazing finish to the panels.

You can use wood, plywood, mdf. I recommend using 3-4mm plywood.

This project is designed to be economical, easy to assemble, and to be suited for mass production.

You can get some idea how to assemble the panels if you look at the provided exploded figure of the panels.
