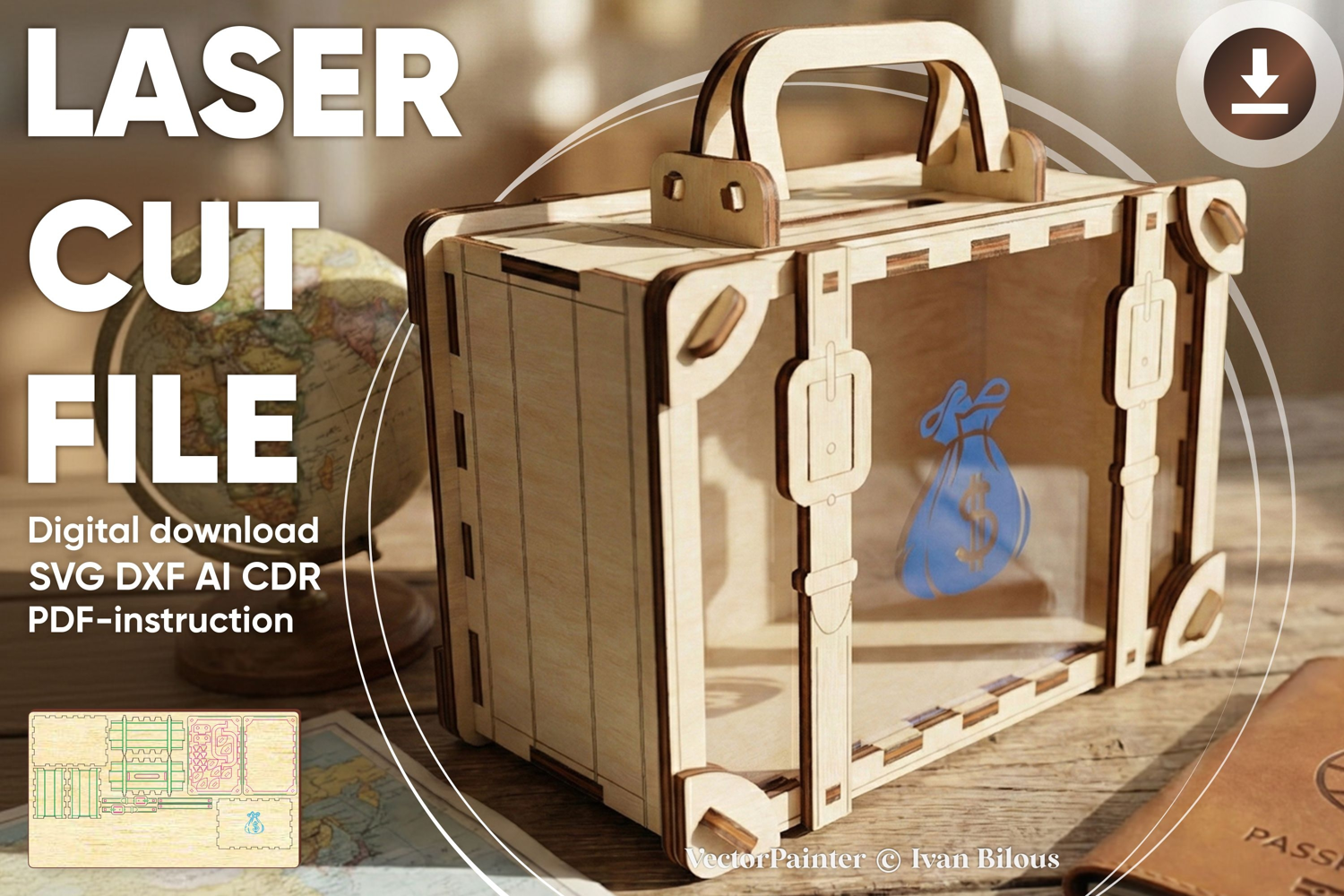

Travel Bag Money Box - laser cut file, Glowforge pattern

Model "Travel Bag Moneybox". Vector plan for CNC.

Material thickness: 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)

Sizes:

3 mm thickness: 64 x 126 x 113 mm (2,52 x 4,96 x 4,45'')

1/8''(3.175mm) thickness: 68 x 133 x 120 mm (2,67 x 5,25 x 4,71'')

4 mm thickness: 85 x 168 x 151 mm (3,36 x 6,61 x 5,93'')

6 mm thickness: 128 x 252 x 226 mm (5,04 x 9,92 x 8,90'')

1/4''(6.35mm) thickness: 135 x 267 x 239 mm (5,33 x 10,50 x 9,42'')

Work area:

3 mm thickness: 503 x 164 mm (19,80 x 6,46'')

1/8''(3.175mm) thickness: 532 x 174 mm (20,96 x 6,83'')

4 mm thickness: 671 x 219 mm (26,40 x 8,61'')

6 mm thickness: 1006 x 328 mm (39,61 x 12,91'')

1/4''(6.35mm) thickness: 1065 x 347 mm (41,92 x 13,67'')

Biggest part:

3 mm thickness: 86 x 126 mm (3,39 x 4,96'')

1/8''(3.175mm) thickness: 91 x 133 mm (3,58 x 5,25'')

4 mm thickness: 115 x 168 mm (4,51 x 6,61'')

6 mm thickness: 172 x 252 mm (6,77 x 9,92'')

1/4''(6.35mm) thickness: 182 x 267 mm (7,17 x 10,50'')

In the file:

green color - draw (cut with little power and big speed)

pink color - cut

black color - cut

What you receive:

You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:

the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction

If you have any questions feel free to contact me:)
