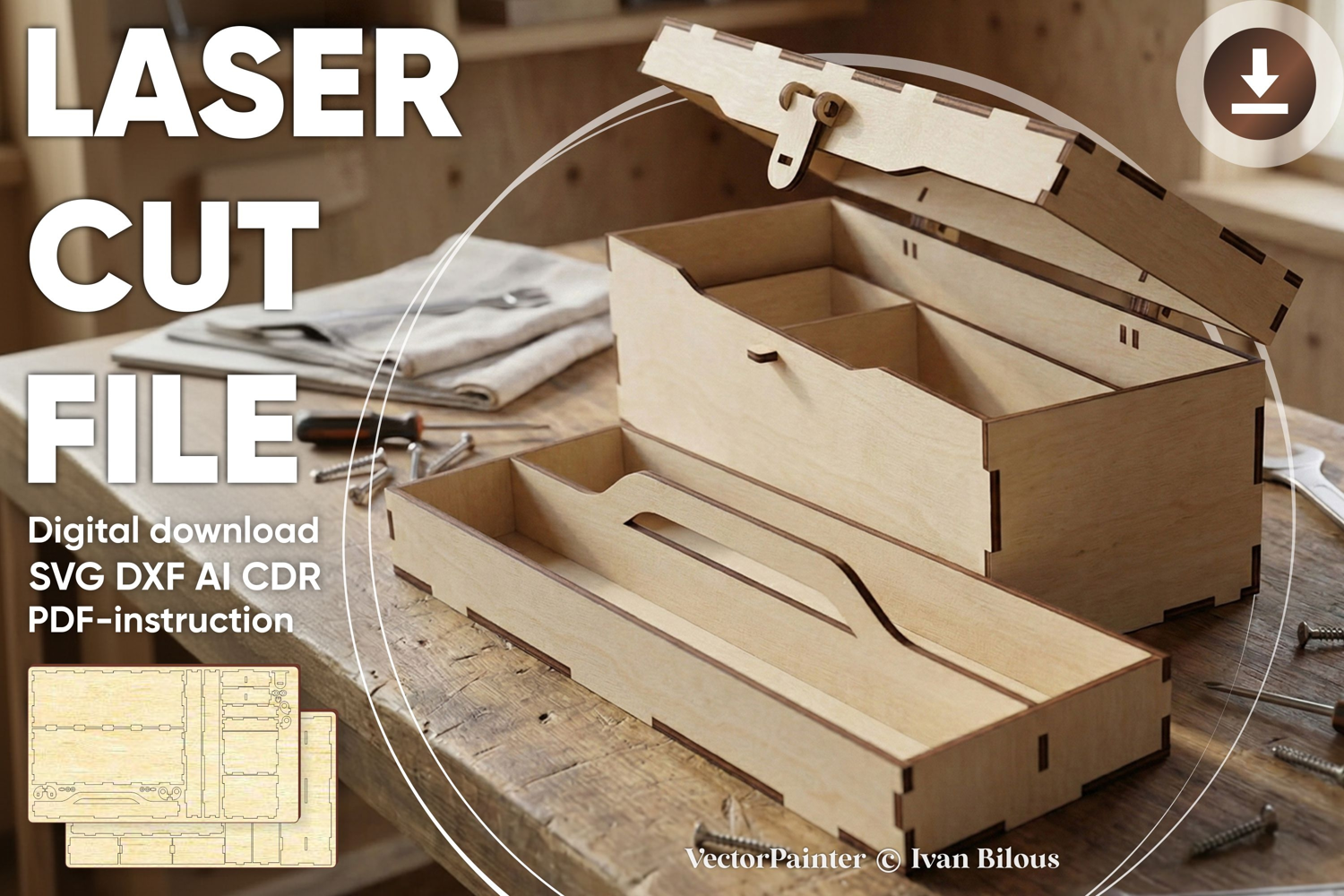

Model "Tool Box". Vector plan for CNC.
Material thickness: 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)
Sizes:
3 mm thickness: 241 x 89 x 89 mm (9,50 x 3,50 x 3,50'')
1/8''(3.175mm) thickness: 255 x 94 x 94 mm (10,05 x 3,70 x 3,70'')
4 mm thickness: 322 x 119 x 119 mm (12,67 x 4,67 x 4,67'')
6 mm thickness: 483 x 178 x 178 mm (19,00 x 7,00 x 7,00'')
1/4''(6.35mm) thickness: 511 x 188 x 188 mm (20,11 x 7,41 x 7,41'')
Work area:
3 mm thickness: 835 x 237 mm (32,87 x 9,33'')
1/8''(3.175mm) thickness: 884 x 251 mm (34,79 x 9,88'') - 2 Glowforge sheets
4 mm thickness: 1113 x 316 mm (43,83 x 12,44'')
6 mm thickness: 1670 x 474 mm (65,75 x 18,66'')
1/4''(6.35mm) thickness: 1767 x 502 mm (69,58 x 19,75'')
Biggest part:
3 mm thickness: 241 x 89 mm (9,50 x 3,50'')
1/8''(3.175mm) thickness: 255 x 94 mm (10,05 x 3,70'')
4 mm thickness: 322 x 119 mm (12,67 x 4,67'')
6 mm thickness: 483 x 178 mm (19,00 x 7,00'')
1/4''(6.35mm) thickness: 511 x 188 mm (20,11 x 7,41'')
In the file:
black color - cut
What you receive:
You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:
the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction
If you have any questions feel free to contact me:)
