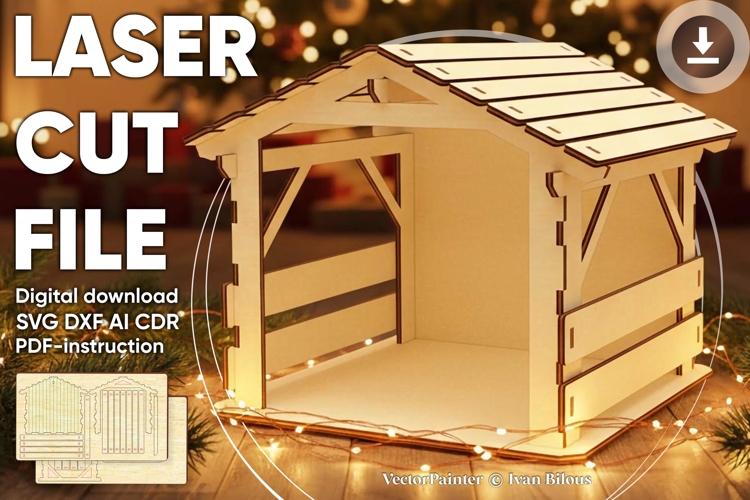

Laser cut design "Nativity barn #3". Vector plan for CNC.
Material thickness: 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)
Sizes:
3 mm thickness: 197 x 180 x 163 mm (7,76 x 7,09 x 6,42'')
1/8''(3.175mm) thickness: 208 x 191 x 173 mm (8,21 x 7,50 x 6,79'')
4 mm thickness: 263 x 240 x 217 mm (10,34 x 9,45 x 8,56'')
6 mm thickness: 394 x 360 x 326 mm (15,51 x 14,17 x 12,83'')
1/4''(6.35mm) thickness: 417 x 381 x 345 mm (16,42 x 15,00 x 13,58'')
Work area:
3 mm thickness: 425 x 355 mm (16,73 x 13,98'')
1/8''(3.175mm) thickness: 450 x 376 mm (17,71 x 14,79'')
4 mm thickness: 567 x 473 mm (22,31 x 18,64'')
6 mm thickness: 850 x 710 mm (33,46 x 27,95'')
1/4''(6.35mm) thickness: 900 x 751 mm (35,42 x 29,58'')
Biggest part:
3 mm thickness: 160 x 220 mm (6,30 x 8,66'')
1/8''(3.175mm) thickness: 169 x 233 mm (6,67 x 9,17'')
4 mm thickness: 213 x 293 mm (8,40 x 11,55'')
6 mm thickness: 320 x 440 mm (12,60 x 17,32'')
1/4''(6.35mm) thickness: 339 x 466 mm (13,33 x 18,33'')
In the file:
green color - draw (cut with little power and big speed)
pink color - cut
black color - cut
What you receive:
You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:
the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction
If you have any questions feel free to contact me:)
