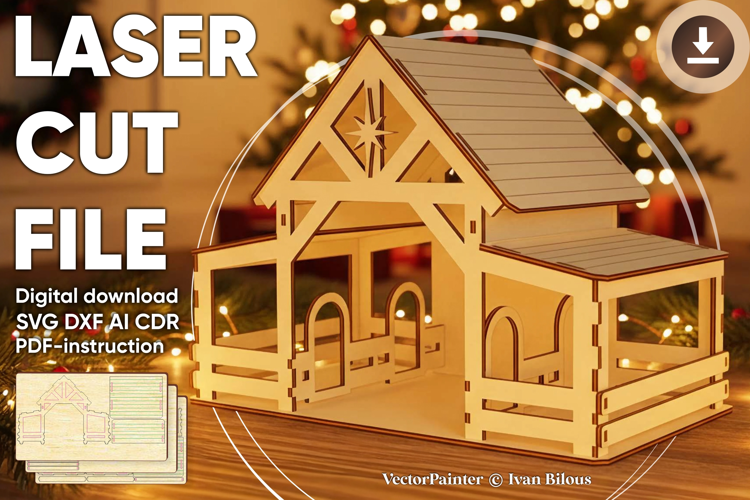

Nativity barn #5 - laser cutting file, Glowforge pattern

Laser cut design "Nativity barn #5". Vector plan for CNC.

Material thickness: 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)

Sizes:

3 mm thickness: 266 x 150 x 195 mm (10,47 x 5,91 x 7,68'')

1/8''(3.175mm) thickness: 282 x 159 x 206 mm (11,08 x 6,25 x 8,13'')

4 mm thickness: 355 x 200 x 260 mm (13,96 x 7,87 x 10,24'')

6 mm thickness: 532 x 300 x 390 mm (20,94 x 11,81 x 15,35'')

1/4''(6.35mm) thickness: 563 x 318 x 413 mm (22,17 x 12,50 x 16,25'')

Work area:

3 mm thickness: 795 x 430 mm (31,30 x 16,93'')

1/8''(3.175mm) thickness: 841 x 455 mm (33,13 x 17,92'')

4 mm thickness: 1060 x 573 mm (41,73 x 22,57'')

6 mm thickness: 1590 x 860 mm (62,60 x 33,86'')

1/4''(6.35mm) thickness: 1683 x 910 mm (66,25 x 35,83'')

Biggest part:

3 mm thickness: 266 x 150 mm (10,47 x 5,91'')

1/8''(3.175mm) thickness: 282 x 159 mm (11,08 x 6,25'')

4 mm thickness: 355 x 200 mm (13,96 x 7,87'')

6 mm thickness: 532 x 300 mm (20,94 x 11,81'')

1/4''(6.35mm) thickness: 563 x 318 mm (22,17 x 12,50'')

In the file:

green color - draw (cut with little power and big speed)

pink color - cut

black color - cut

What you receive:

You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:

the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction

If you have any questions feel free to contact me:)
