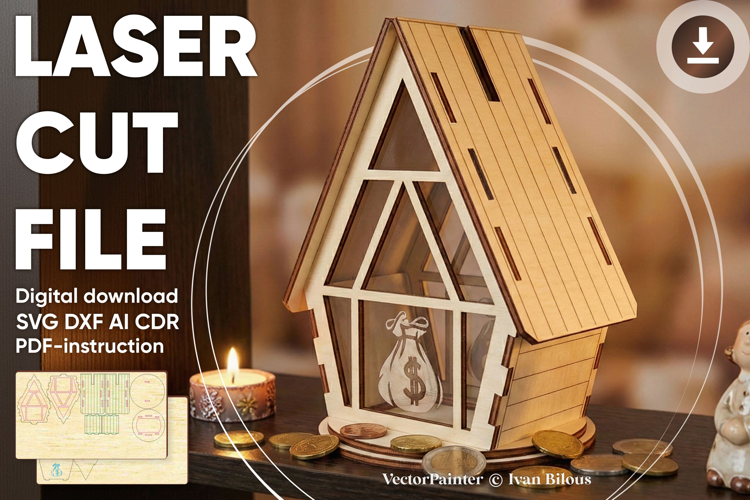

House Money Box - laser cut file, Glowforge pattern

Laser cut design "Money box house". Vector plan for CNC.

Material thickness: 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)

Sizes:

3 mm thickness: 114 x 101 x 146 mm (4,49 x 3,98 x 5,75'')

1/8''(3.175mm) thickness: 121 x 107 x 155 mm (4,75 x 4,21 x 6,08'')

4 mm thickness: 152 x 135 x 195 mm (5,98 x 5,30 x 7,66'')

6 mm thickness: 228 x 202 x 292 mm (8,98 x 7,95 x 11,50'')

1/4''(6.35mm) thickness: 241 x 214 x 309 mm (9,50 x 8,42 x 12,17'')

Work area:

3 mm thickness: 538 x 149 mm (21,18 x 5,87'')

1/8''(3.175mm) thickness: 569 x 158 mm (22,42 x 6,21'')

4 mm thickness: 717 x 199 mm (28,24 x 7,82'')

6 mm thickness: 1076 x 298 mm (42,36 x 11,73'')

1/4''(6.35mm) thickness: 1139 x 315 mm (44,83 x 12,42'')

Biggest part:

3 mm thickness: 98 x 146 mm (3,86 x 5,75'')

1/8''(3.175mm) thickness: 104 x 155 mm (4,08 x 6,08'')

4 mm thickness: 131 x 195 mm (5,14 x 7,66'')

6 mm thickness: 196 x 292 mm (7,72 x 11,50'')

1/4''(6.35mm) thickness: 207 x 309 mm (8,17 x 12,17'')

In the file:

blue color - engrave

green color - draw (cut with low power and high speed)

pink color - cut

black color - cut

What you receive:

You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:

the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction

If you have any questions feel free to contact me:)
