Helicopter - laser cut file, Glowforge pattern, CNC plan

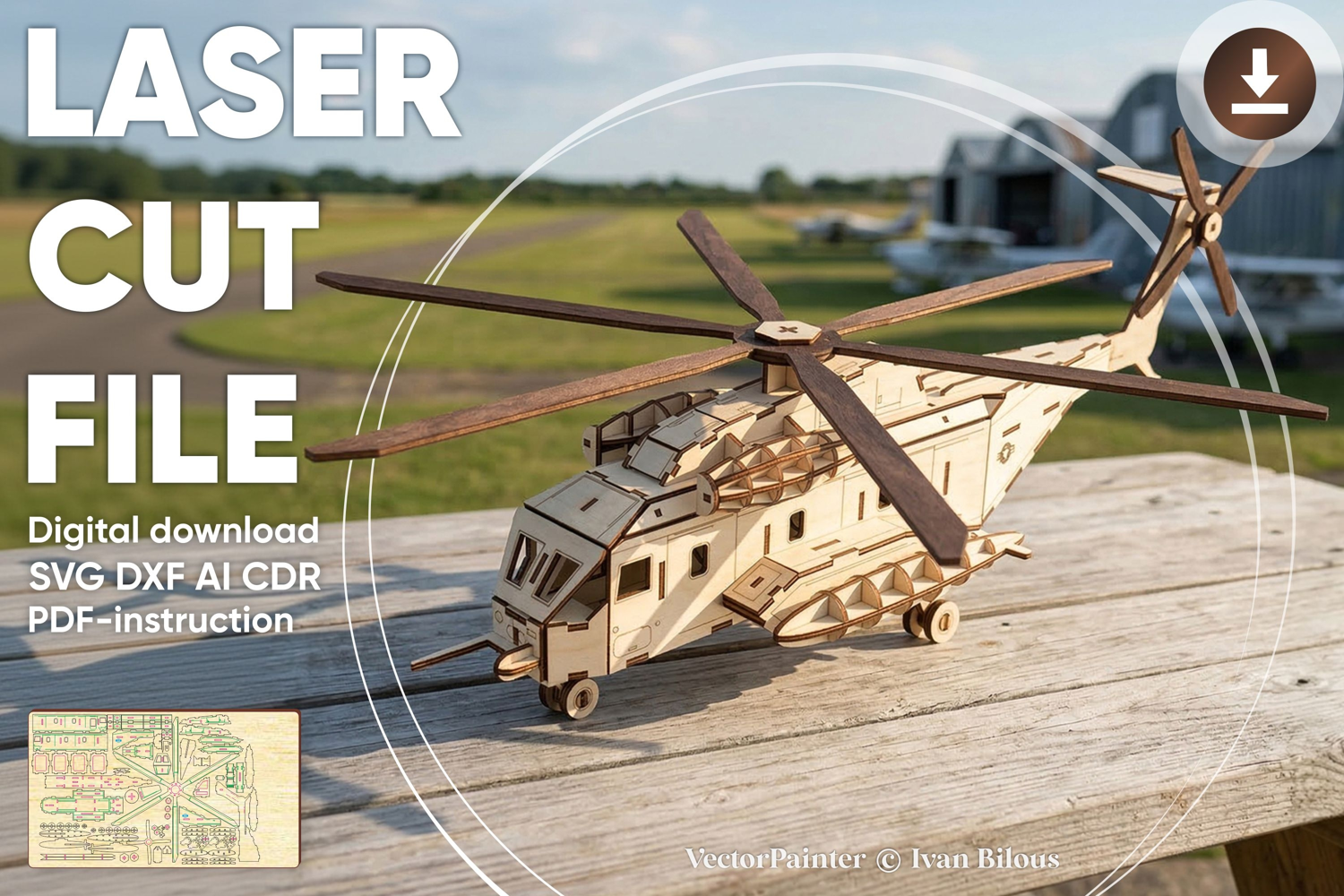

Model "Big helicopter". Vector plan for CNC.

Material thickness: 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)

Sizes:

3 mm thickness: 507 x 159 x 148 mm (19,96 x 6,26 x 5,83'')

1/8''(3.175mm) thickness: 537 x 168 x 157 mm (21,13 x 6,63 x 6,17'')

4 mm thickness: 676 x 212 x 197 mm (26,61 x 8,35 x 7,77'')

6 mm thickness: 1014 x 318 x 296 mm (39,92 x 12,52 x 11,65'')

1/4''(6.35mm) thickness: 1073 x 337 x 313 mm (42,25 x 13,25 x 12,33'')

Work area:

3 mm thickness: 698 x 459 mm (27,48 x 18,07'')

1/8''(3.175mm) thickness: 739 x 486 mm (29,08 x 19,13'')

4 mm thickness: 931 x 612 mm (36,64 x 24,09'')

6 mm thickness: 1396 x 918 mm (54,96 x 36,14'')

1/4''(6.35mm) thickness: 1477 x 972 mm (58,17 x 38,25'')

Biggest part:

3 mm thickness: 393 x 445 mm (15,47 x 17,52'')

1/8''(3.175mm) thickness: 416 x 471 mm (16,38 x 18,54'')

4 mm thickness: 524 x 593 mm (20,63 x 23,36'')

6 mm thickness: 786 x 890 mm (30,94 x 35,04'')

1/4''(6.35mm) thickness: 832 x 942 mm (32,75 x 37,08'')

In the file:

blue color - engrave

green color - draw (score - cut with little power and high speed)

pink color - cut (inner cut lines)

black color - cut (outer cut lines)

What you receive:

You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:

the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instructions

If you have any questions feel free to contact me:)
