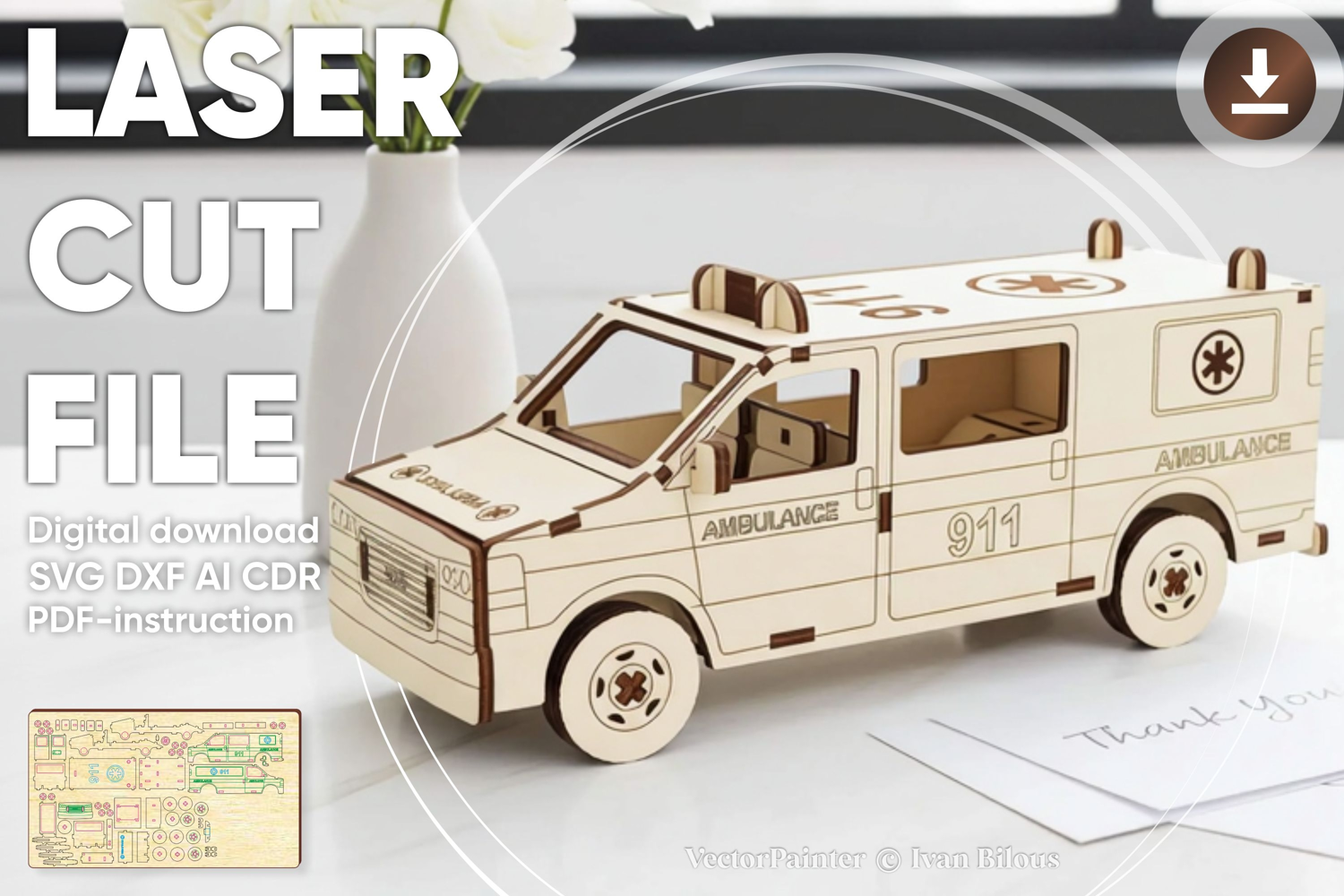

Ambulance medical car - laser cut file, vector cut file

Model "Ambulance". Vector plan for CNC.

Material thickness: 3mm, 4mm, 6mm, 1/4'', 1/8''

Sizes:

3 mm thickness: 206 x 88 x 86 mm (8,11 x 3,46 x 3,39'')

1/8''(3.175mm) thickness: 218 x 93 x 91 mm (8,58 x 3,67 x 3,58'')

4 mm thickness: 275 x 117 x 115 mm (10,81 x 4,62 x 4,51'')

6 mm thickness: 412 x 176 x 172 mm (16,22 x 6,93 x 6,77'')

1/4''(6.35mm) thickness: 436 x 186 x 182 mm (17,17 x 7,33 x 7,17'')

Work area:

3 mm thickness: 920 x 172 mm (36,22 x 6,77'')

1/8''(3.175mm) thickness: 974 x 182 mm (38,33 x 7,17'')

4 mm thickness: 1227 x 229 mm (48,29 x 9,03'')

6 mm thickness: 1840 x 344 mm (72,44 x 13,54'')

1/4''(6.35mm) thickness: 1947 x 364 mm (76,67 x 14,33'')

Biggest part:

3 mm thickness: 203 x 62 mm (7,99 x 2,44'')

1/8''(3.175mm) thickness: 215 x 66 mm (8,46 x 2,58'')

4 mm thickness: 271 x 83 mm (10,66 x 3,25'')

6 mm thickness: 406 x 124 mm (15,98 x 4,88'')

1/4''(6.35mm) thickness: 430 x 131 mm (16,92 x 5,17'')

Biggest part:

3 mm thickness: 241 x 89 mm (9,50 x 3,50'')

1/8''(3.175mm) thickness: 255 x 94 mm (10,05 x 3,70'')

4 mm thickness: 322 x 119 mm (12,67 x 4,67'')

6 mm thickness: 483 x 178 mm (19,00 x 7,00'')

1/4''(6.35mm) thickness: 511 x 188 mm (20,11 x 7,41'')

In the file:

green color - draw (cut with little power and high speed)

blue color - engrave

pink color - cut

black color - cut

What you receive:

You will download 1 ZIP files for 3 mm, 4 mm and 6 mm containing the following:

the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction

If you have any questions feel free to contact me:)
