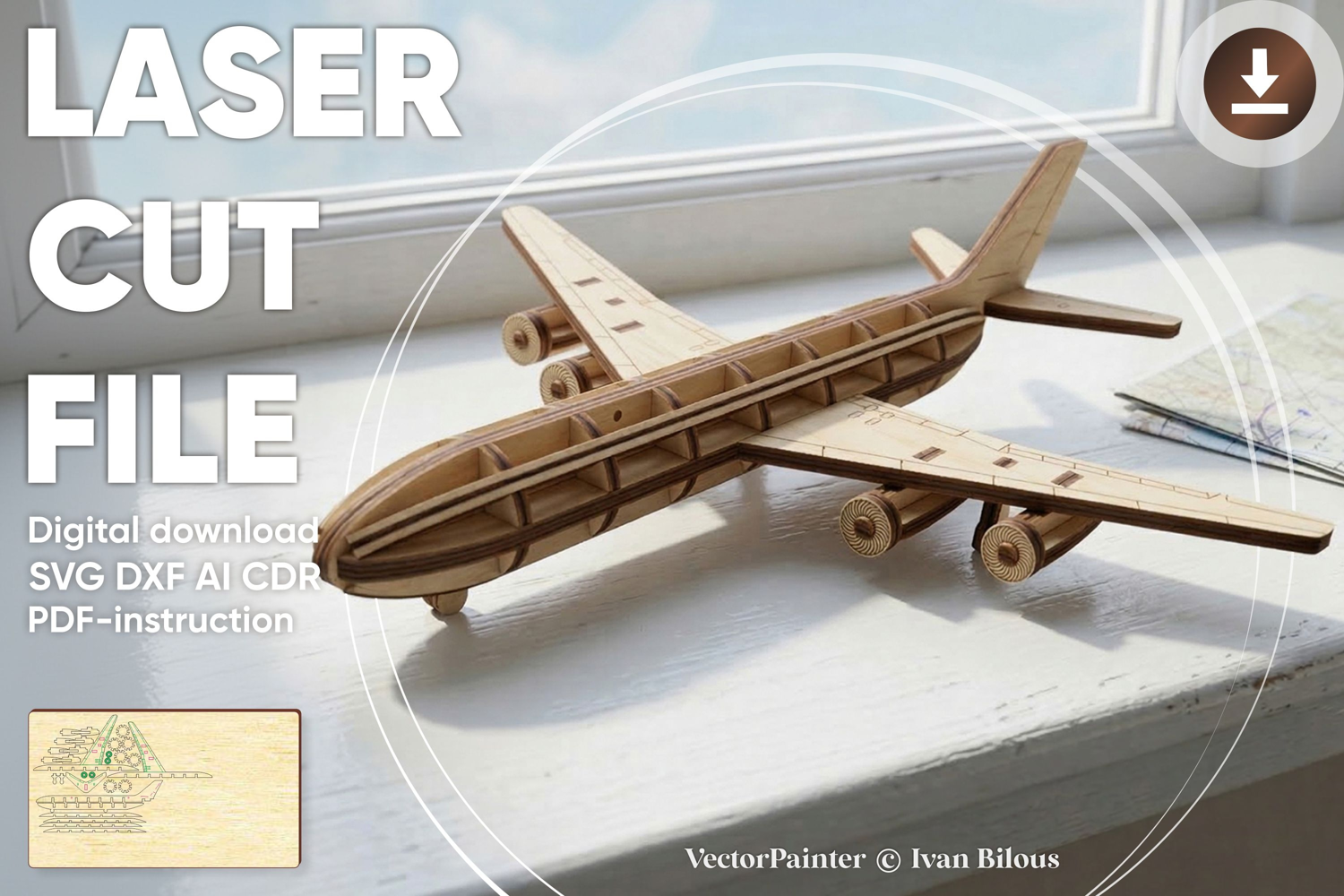

Airplane - laser cut file, Glowforge pattern

Model "Airplane". Vector plan for CNC.

Material thickness: 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)

Sizes:

3 mm thickness: 181 x 161 x 44 mm (7.13 x 6.34 x 1.73'')

1/8''(3.175mm) thickness: 192 x 170 x 47 mm (7.54 x 6.71 x 1.83'')

4 mm thickness: 241 x 215 x 59 mm (9.50 x 8.45 x 2.31'')

6 mm thickness: 362 x 322 x 886 mm (14.25 x 12.68 x 3.46'')

1/4''(6.35mm) thickness: 383 x 341 x 93 mm (15.08 x 13.42 x 3.67'')

Work area:

3 mm thickness: 255 x 168 mm (10.04 x 6.61'')

1/8''(3.175mm) thickness: 270 x 178 mm (10.63 x 7.00'')

4 mm thickness: 340 x 224 mm (13.39 x 8.82'')

6 mm thickness: 510 x 336 mm (20.08 x 13.23'')

1/4''(6.35mm) thickness: 540 x 356 mm (21.25 x 14.00'')

In the file:

green color - draw (cut with little power and big speed)

pink color - cut

black color - cut

What you receive:

You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:

the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction

If you have any questions feel free to contact me:)
