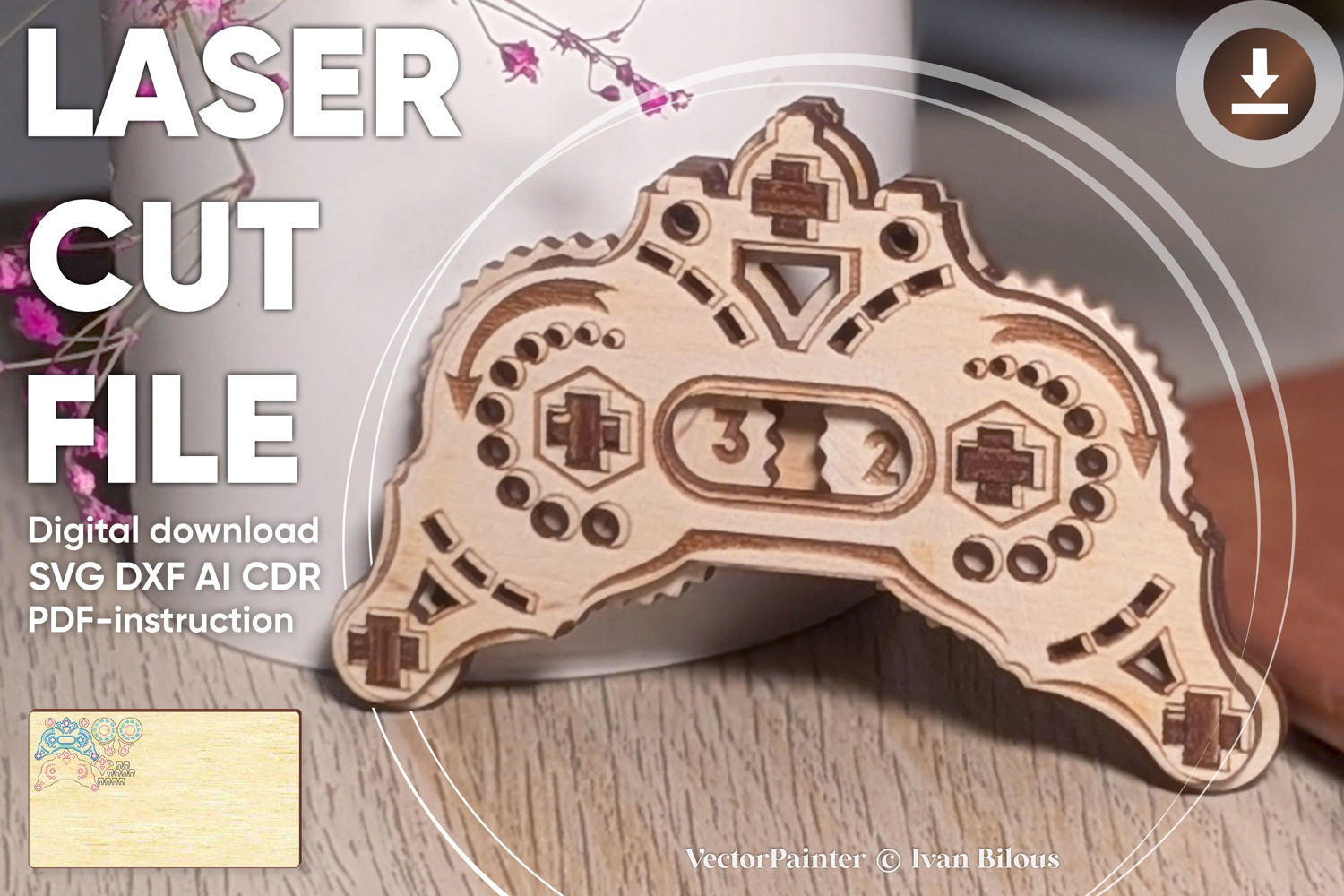

Game counter - laser cut file, Glowforge pattern

Laser cut design "Game counter". Vector plan for CNC.

Material thickness: 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)

Sizes:

3 mm thickness: 91 x 61 x 9 mm (3,58 x 2,40 x 0,35'')

1/8''(3.175mm) thickness: 91 x 61 x 9 mm (3,58 x 2,40 x 0,35'')

4 mm thickness: 91 x 61 x 9 mm (3,58 x 2,40 x 0,35'')

6 mm thickness: 137 x 91.5 x 18 mm (5.37 x 3.6 x 0.71'')

1/4''(6.35mm) thickness: 145 x 97 x 19 mm (5.68 x 5.4 x 0.75'')

Work area:

3 mm thickness: 150 x 101 mm (5,91 x 3,98'')

1/8''(3.175mm) thickness: 150 x 101 mm (5,91 x 3,98'')

4 mm thickness: 150 x 101 mm (5,91 x 3,98'')

6 mm thickness: 225 x 151.5 mm (8.86 x 5.97'')

1/4''(6.35mm) thickness: 238 x 160 mm (9.37 x 6.32'')

Biggest part:

3 mm thickness: 88 x 59 mm (3,46 x 2,32'')

1/8''(3.175mm) thickness: 88 x 59 mm (3,46 x 2,32'')

4 mm thickness: 88 x 59 mm (3,46 x 2,32'')

6 mm thickness: 132 x 88.5 mm (5.19 x 3.48'')

1/4''(6.35mm) thickness: 140 x 94 mm (5.49 x 3.65'')

In the file:

blue color - engrave

pink color - cut (inner cut lines)

black color - cut (outer cut lines)

What you receive:

You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:

the CDR, DXF, AI and SVG file for laser cutting.

If you have any questions feel free to contact me:)
