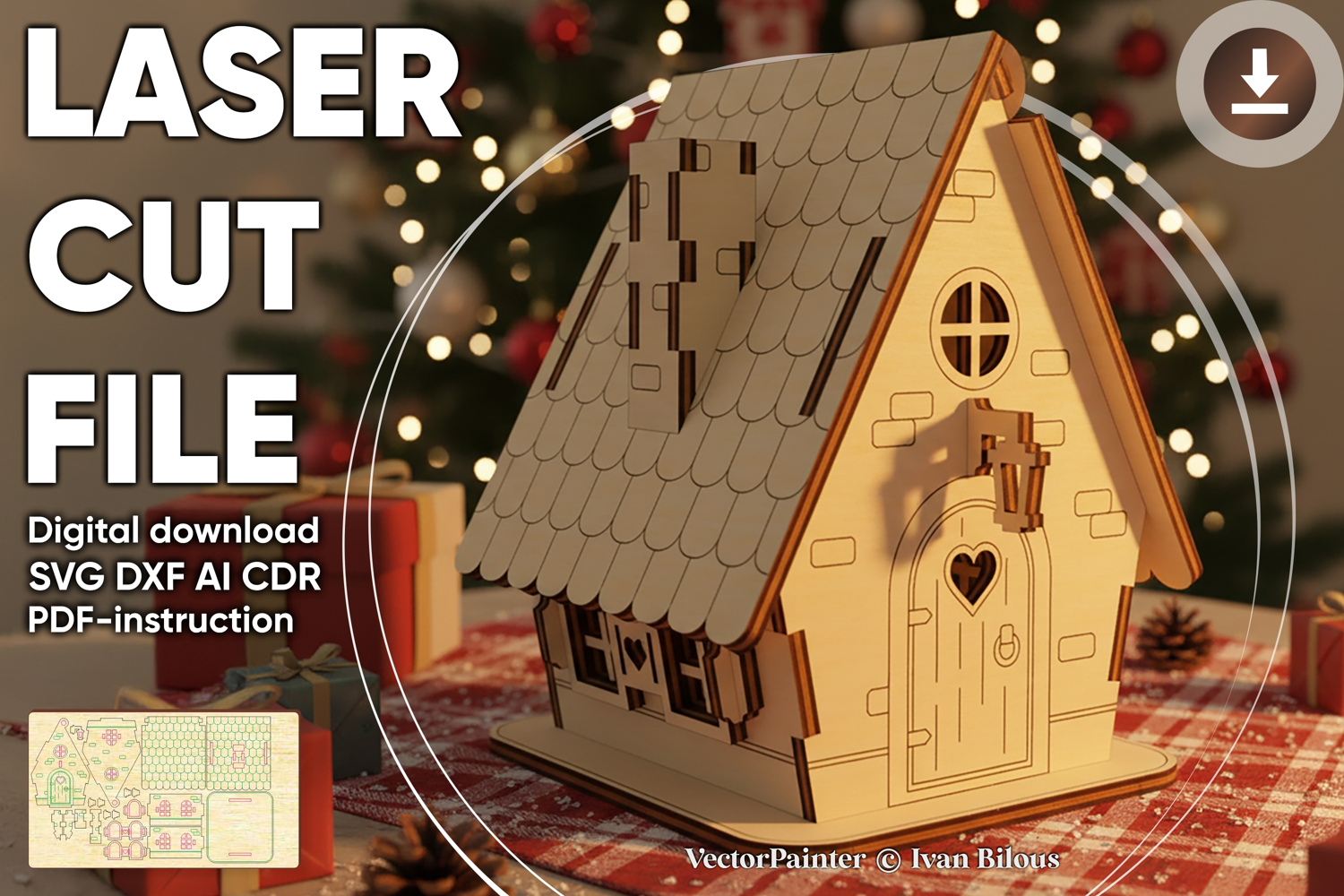

Laser cut design "House box". Vector plan for CNC.
Material thickness: 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)
Sizes:
3 mm thickness: 90 x 95 x 114 mm (3.54 x 3.74 x 4.49'')
1/8''(3.175mm) thickness: 95 x 101 x 121 mm (3.75 x 3.96 x 4.75'')
4 mm thickness: 120 x 127 x 152 mm (4.72 x 4.99 x 5.98'')
6 mm thickness: 180 x 190 x 228 mm (7.09 x 7.48 x 8.98'')
1/4''(6.35mm) thickness: 191 x 201 x 241 mm (7.50 x 7.92 x 9.50'')
Work area:
3 mm thickness: 310 x 187 mm (12.20 x 7.36'')
1/8''(3.175mm) thickness: 328 x 198 mm (12.92 x 7.79'')
4 mm thickness: 413 x 249 mm (16.27 x 9.82'')
6 mm thickness: 620 x 374 mm (24.41 x 14.72'')
1/4''(6.35mm) thickness: 656 x 396 mm (25.83 x 15.58'')
In the file:
green color - draw (cut with little power and big speed)
pink color - cut
black color - cut
What you receive:
You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:
the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction
If you have any questions feel free to contact me:)
