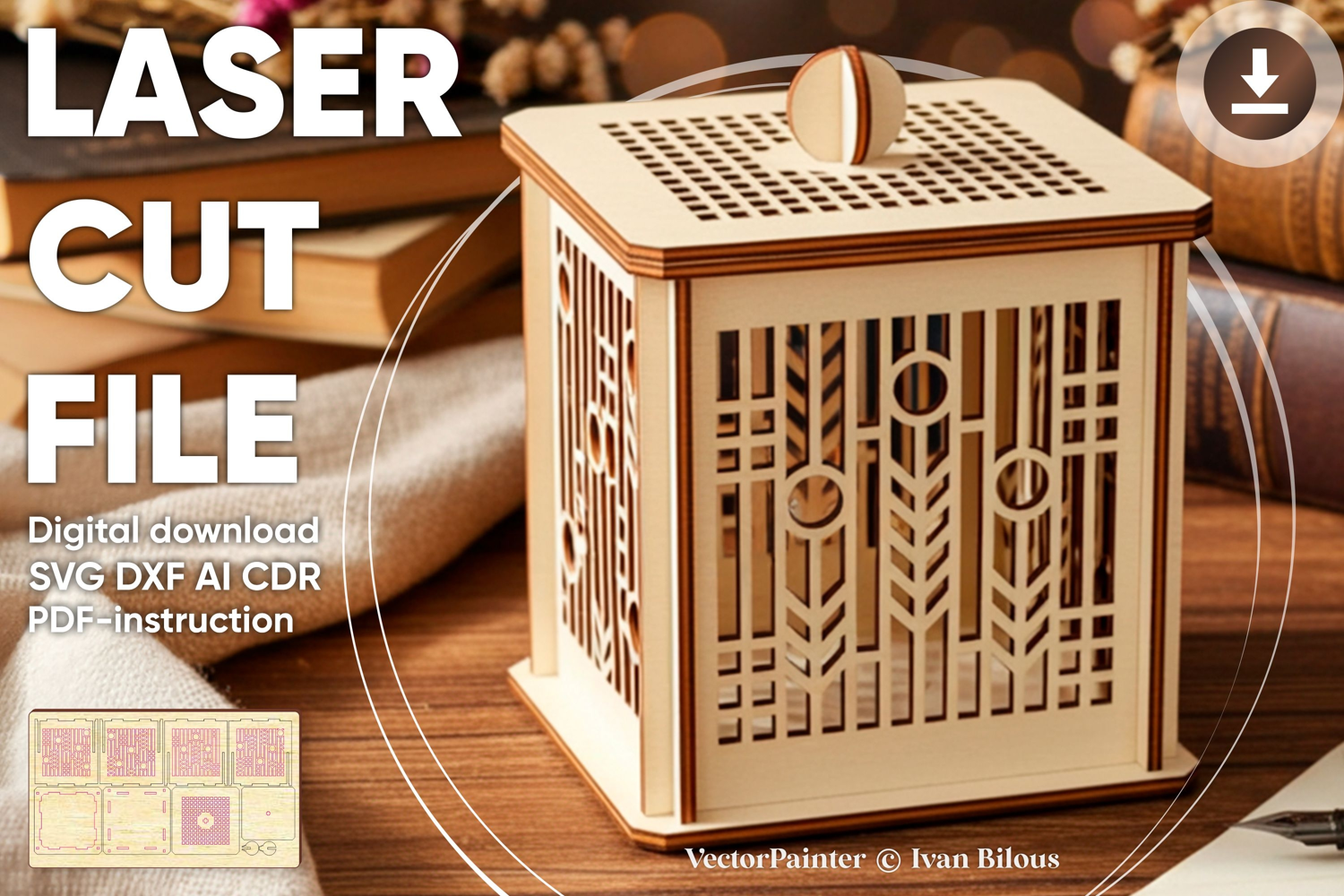

Laser cut design "Ornament box". Vector plan for CNC.
Material thickness: 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)
Sizes:
3 mm thickness: 107 x 107 x 130 mm (4.21 x 4.21 x 5.12'')
1/8''(3.175mm) thickness: 113 x 113 x 138 mm (4.46 x 4.46 x 5.42'')
4 mm thickness: 143 x 143 x 173 mm (5.62 x 5.62 x 6.82'')
6 mm thickness: 214 x 214 x 260 mm (8.43 x 8.43 x 10.24'')
1/4''(6.35mm) thickness: 226 x 226 x 275 mm (8.92 x 8.92 x 10.83'')
Work area:
3 mm thickness: 415 x 217 mm (16.34 x 8.54'')
1/8''(3.175mm) thickness: 439 x 230 mm (17.29 x 9.04'')
4 mm thickness: 553 x 289 mm (21.78 x 11.39'')
6 mm thickness: 830 x 434 mm (32.68 x 17.09'')
1/4''(6.35mm) thickness: 878 x 459 mm (34.58 x 18.08'')
Biggest part:
3 mm thickness: 107 x 107 mm (4.21 x 4.21'')
1/8''(3.175mm) thickness: 113 x 113 mm (4.46 x 4.46'')
4 mm thickness: 143 x 143 mm (5.62 x 5.62'')
6 mm thickness: 214 x 214 mm (8.43 x 8.43'')
1/4''(6.35mm) thickness: 226 x 226 mm (8.92 x 8.92'')
In the file:
pink color - cut
black color - cut
What you receive:
You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:
the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction
If you have any questions feel free to contact me:)
