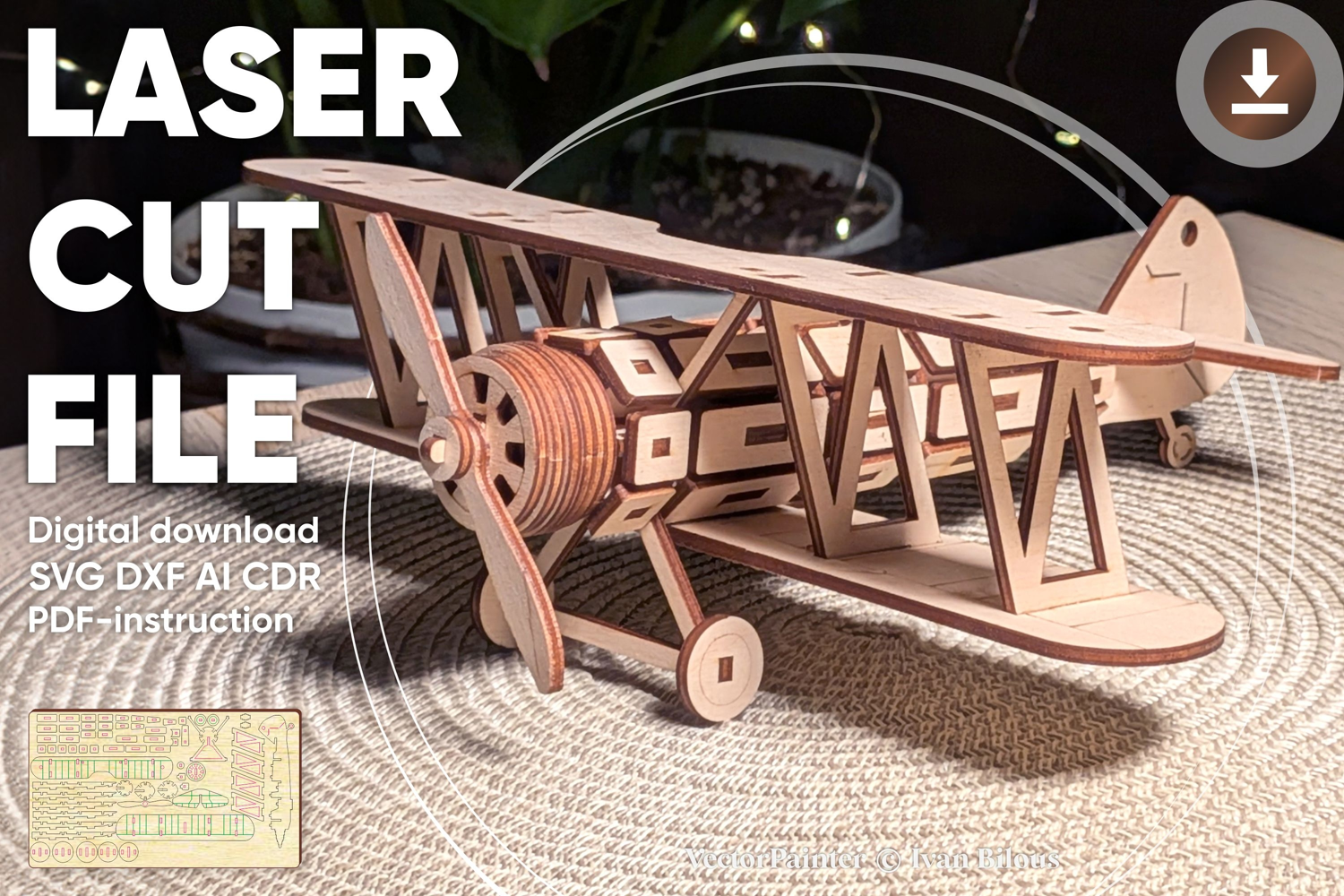

Biplane Airplane - laser cut file, Glowforge pattern

Laser cut design "Biplane Airplane". Vector plan for CNC.

The wheels move

Material thickness: 3mm, 3.175mm (1/8in), 4mm, 6mm,

Sizes:

3 mm: 209 x 219 x 56 mm (8.23 x 8.62 x 2.21'')

3.175 mm (1/8in): 221 x 232 x 59 mm (8.71 x 9.12 x 2.34'')

4 mm: 279 x 292 x 75 mm (10.97 x 11.5 x 2.94'')

6 mm: 418 x 438 x 112 mm (16.46 x 17.24 x 4.41'')

Work area:

3 mm: 600 x 213 mm (23.62 x 8.39'')

4 mm: 800 x 284 mm (31.5 x 11.18'')

6 mm: 1200 x 426 mm (47.24 x 16.77'')

In the file:

green color - draw (cut with little power and high speed)

pink color - cut

black color - cut

What you receive:

You will download 1 ZIP files for 3 mm, 4 mm and 6 mm containing the following:

the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction

If you have any questions feel free to contact me:)
