Retro Gas Station - laser cut file, SVG DXF AI CDR

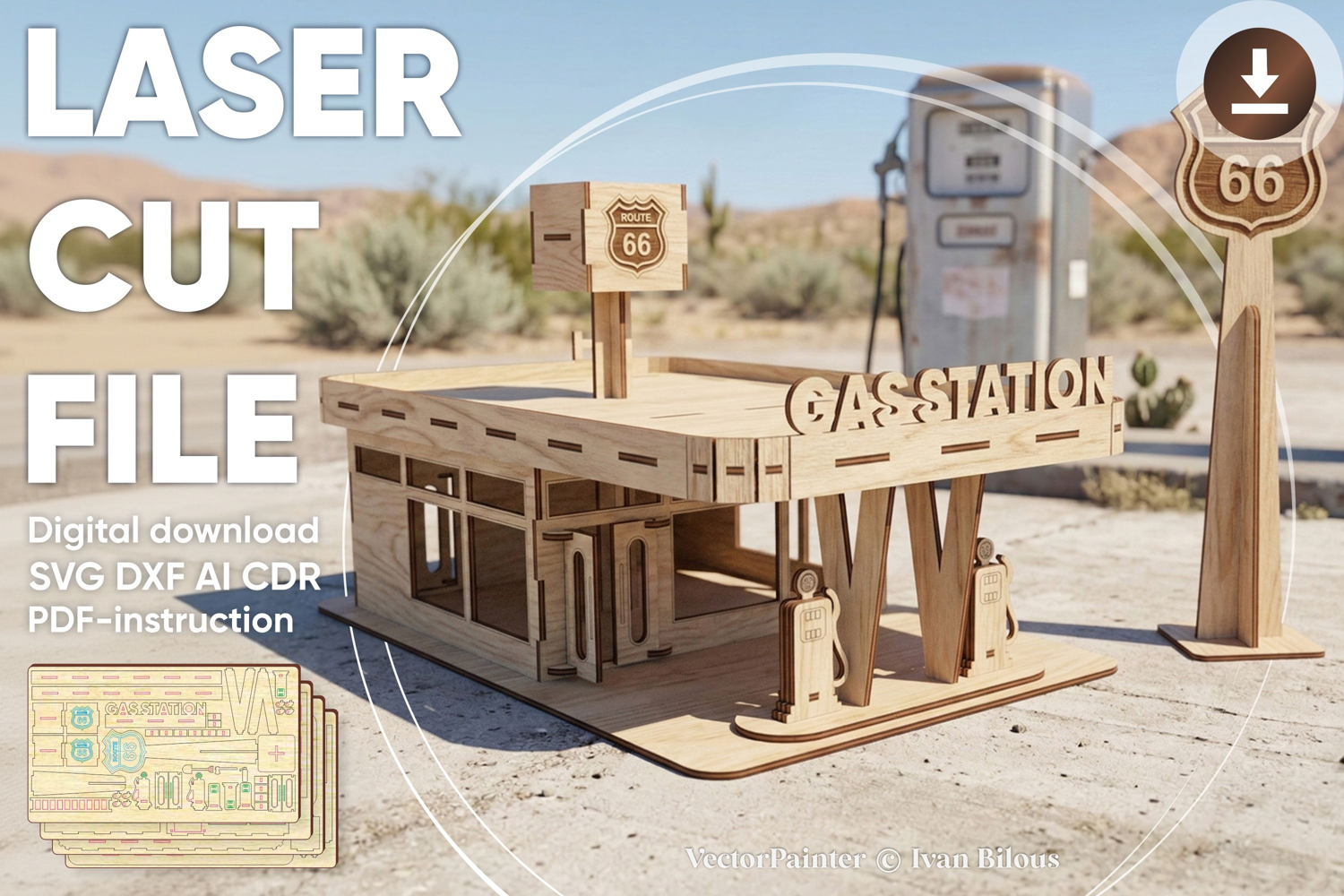

Laser cut design "Retro gas station". Vector plan for CNC.

Material thickness: 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)

Sizes:

3 mm thickness: 360 x 219 x 209 mm (14,17 x 8,62 x 8,23'')

1/8''(3.175mm) thickness: 381 x 232 x 221 mm (15,00 x 9,13 x 8,71'')

4 mm thickness: 480 x 292 x 279 mm (18,90 x 11,50 x 10,97'')

6 mm thickness: 720 x 438 x 418 mm (28,35 x 17,24 x 16,46'')

1/4''(6.35mm) thickness: 762 x 464 x 442 mm (30,00 x 18,25 x 17,42'')

Work area:

3 mm thickness: 851 x 460 mm (33,50 x 18,11'')

1/8''(3.175mm) thickness: 901 x 487 mm (35,46 x 19,17'')

4 mm thickness: 1135 x 613 mm (44,67 x 24,15'')

6 mm thickness: 1702 x 920 mm (67,01 x 36,22'')

1/4''(6.35mm) thickness: 1801 x 974 mm (70,92 x 38,33'')

Biggest part:

3 mm thickness: 350 x 219 mm (13,78 x 8,62'')

1/8''(3.175mm) thickness: 370 x 232 mm (14,58 x 9,13'')

4 mm thickness: 467 x 292 mm (18,37 x 11,50'')

6 mm thickness: 700 x 438 mm (27,56 x 17,24'')

1/4''(6.35mm) thickness: 741 x 464 mm (29,17 x 18,25'')

In the file:

blue color - engrave

pink color - cut

black color - cut

What you receive:

You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:

the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction

If you have any questions feel free to contact me:)
