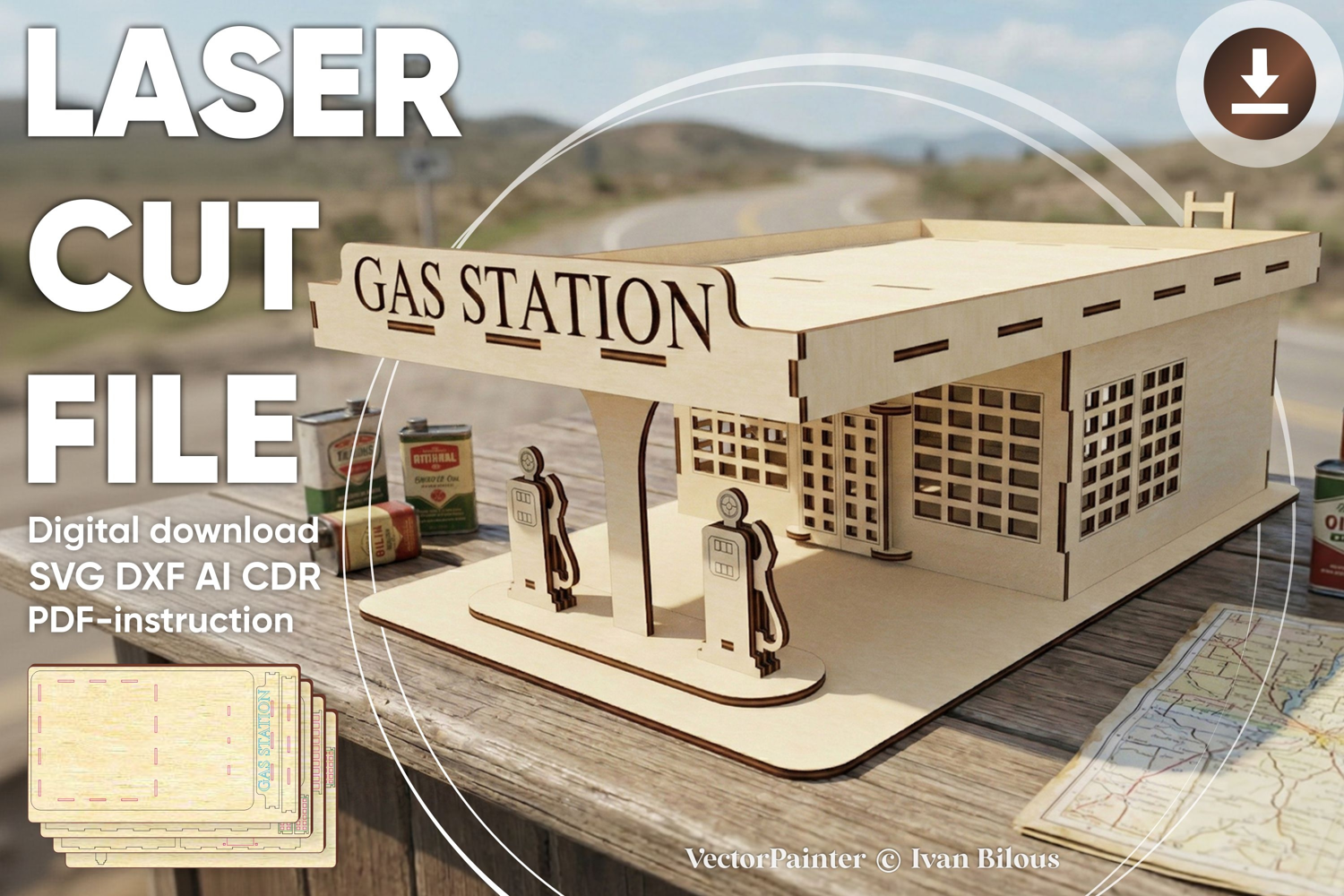

Old Style Gas Station - laser cut file, SVG DXF AI CDR

Laser cut design "Old style gas station". Vector plan for CNC.

Material thickness: 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)

Sizes:

3 mm thickness: 219 x 350 x 133 mm (8,62 x 13,78 x 5,24'')

1/8''(3.175mm) thickness: 232 x 370 x 141 mm (9,13 x 14,58 x 5,54'')

4 mm thickness: 292 x 467 x 177 mm (11,50 x 18,37 x 6,98'')

6 mm thickness: 438 x 700 x 266 mm (17,24 x 27,56 x 10,47'')

1/4''(6.35mm) thickness: 464 x 741 x 282 mm (18,25 x 29,17 x 11,08'')

Work area:

3 mm thickness: 833 x 453 mm (32,80 x 17,83'')

1/8''(3.175mm) thickness: 882 x 479 mm (34,71 x 18,88'')

4 mm thickness: 1111 x 604 mm (43,73 x 23,78'')

6 mm thickness: 1666 x 906 mm (65,59 x 35,67'')

1/4''(6.35mm) thickness: 1763 x 959 mm (69,42 x 37,75'')

Biggest part:

3 mm thickness: 350 x 219 mm (13,78 x 8,62'')

1/8''(3.175mm) thickness: 370 x 232 mm (14,58 x 9,13'')

4 mm thickness: 467 x 292 mm (18,37 x 11,50'')

6 mm thickness: 700 x 438 mm (27,56 x 17,24'')

1/4''(6.35mm) thickness: 741 x 464 mm (29,17 x 18,25'')

In the file:

blue color - engrave

pink color - cut

black color - cut

What you receive:

You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:

the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction

If you have any questions feel free to contact me:)
