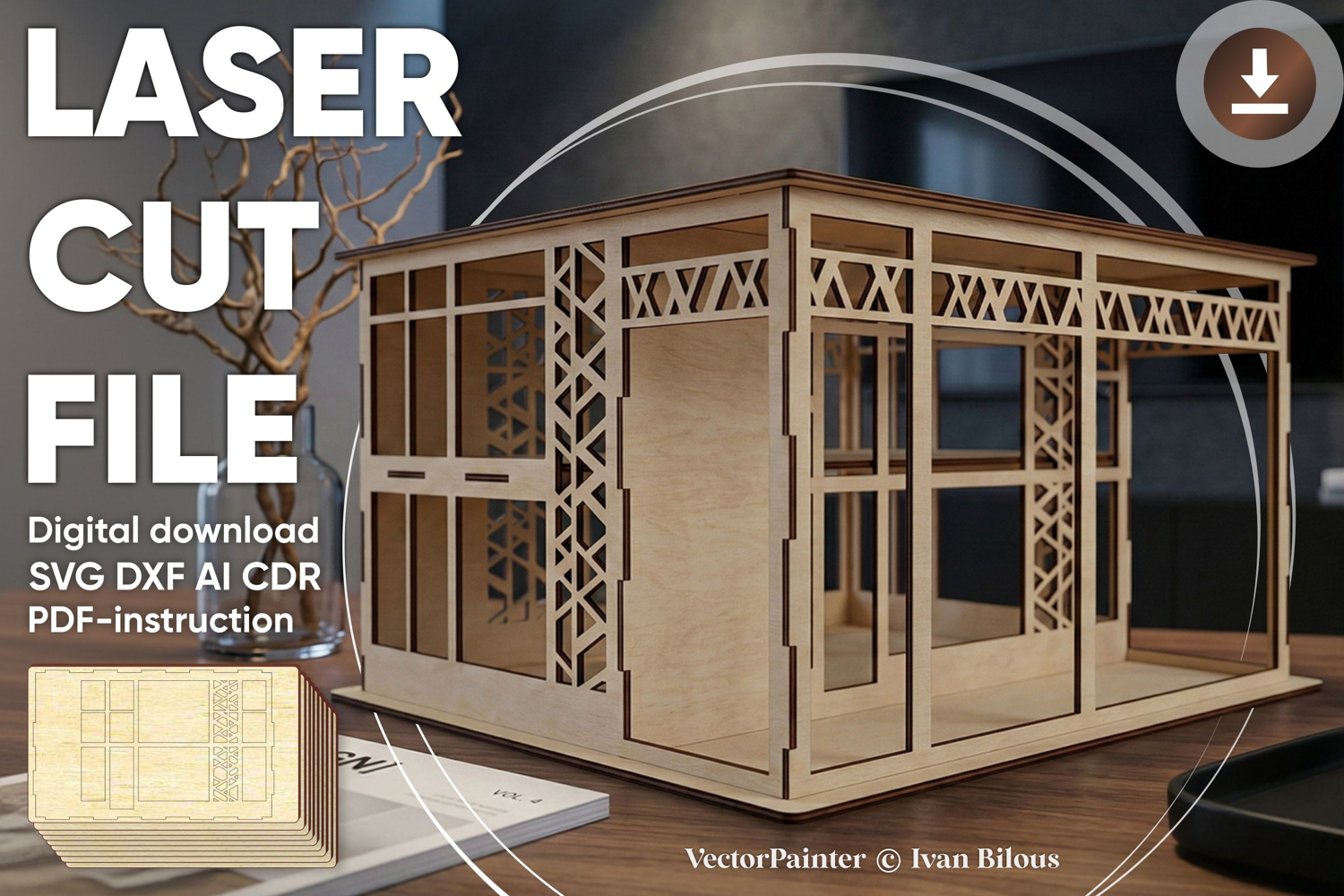

Laser cut design "Big Hi Tech Dollhouse". Vector plan for laser cutting machine
Material thickness (versions of the files): 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)
Sizes:
3 mm thickness: 288 x 320 x 186 mm (11,34 x 12,60 x 7,32'')
1/8''(3.175mm) thickness: 305 x 339 x 197 mm (12,00 x 13,33 x 7,75'')
4 mm thickness: 384 x 427 x 248 mm (15,12 x 16,80 x 9,76'')
6 mm thickness: 576 x 640 x 372 mm (22,68 x 25,20 x 14,65'')
1/4''(6.35mm) thickness: 610 x 677 x 394 mm (24,00 x 26,67 x 15,50'')
Work area (the area of plywood you need to make this design) :
3 mm thickness: 650 x 896 mm (25,59 x 35,28'')
1/8''(3.175mm) thickness: 688 x 948 mm (27,08 x 37,33'') (9 Glowforge sheets)
4 mm thickness: 867 x 1195 mm (34,12 x 47,03'')
6 mm thickness: 1300 x 1792 mm (51,18 x 70,55'')
1/4''(6.35mm) thickness: 1376 x 1897 mm (54,17 x 74,67'')
Biggest part:
3 mm thickness: 300 x 186 mm (11,81 x 7,32'')
1/8''(3.175mm) thickness: 318 x 197 mm (12,50 x 7,75'')
4 mm thickness: 400 x 248 mm (15,75 x 9,76'')
6 mm thickness: 600 x 372 mm (23,62 x 14,65'')
1/4''(6.35mm) thickness: 635 x 394 mm (25,00 x 15,50'')
What you receive:
You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:
the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction
If you have any questions feel free to contact me:)
