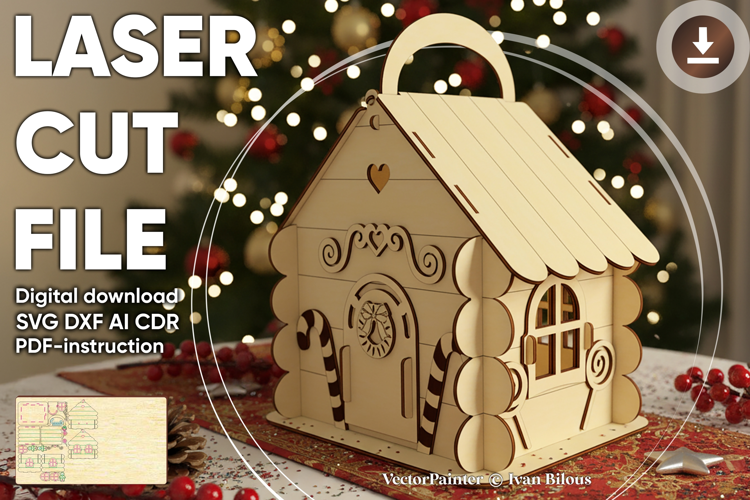

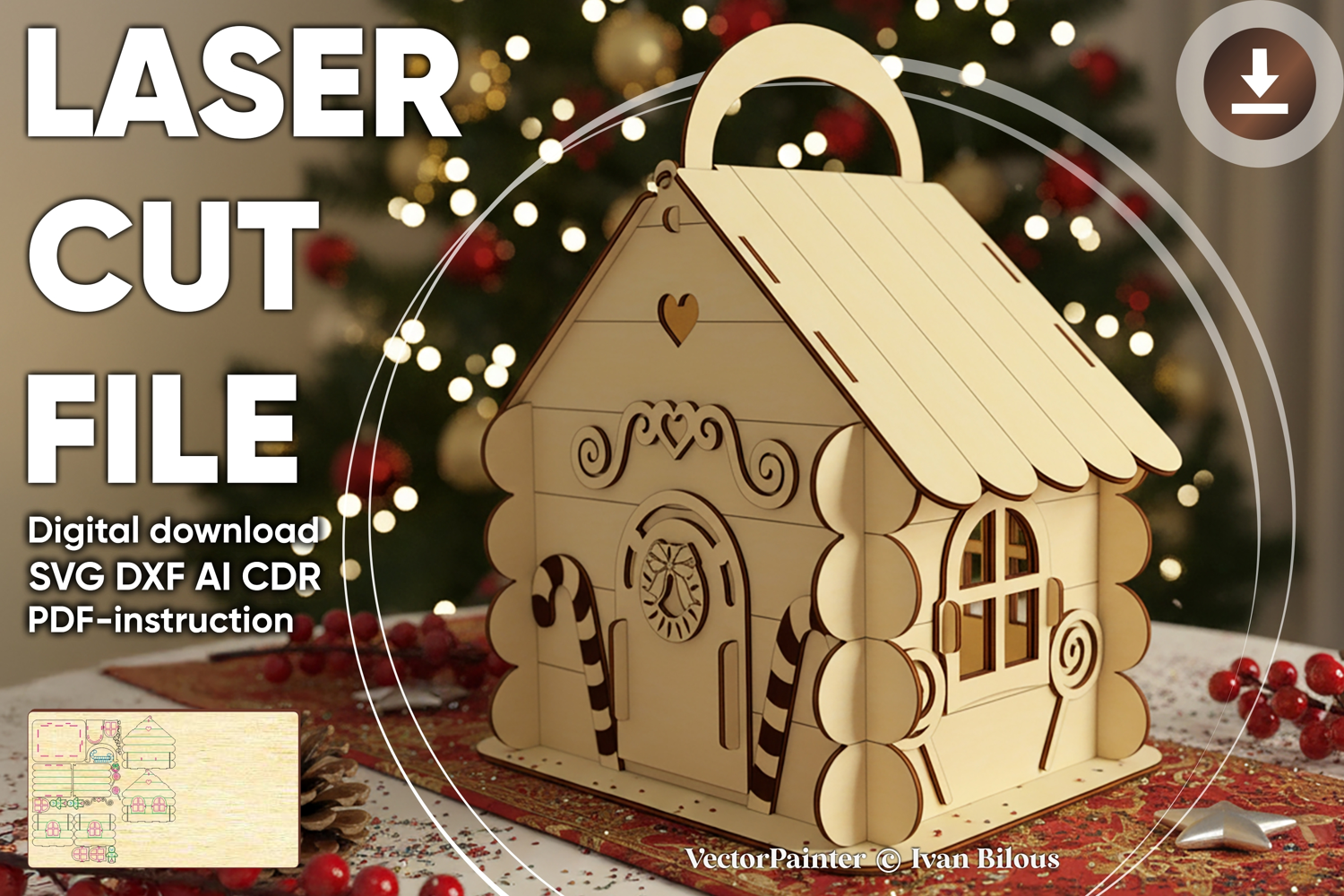

Laser cut design "Gingerbread House Box for sweets". Vector plan for laser cutting machine
Material thickness (versions of the files): 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)
Sizes:
3 mm thickness: 290 x 202 x 175 mm (11,42 x 7,95 x 6,89'')
1/8''(3.175mm) thickness: 307 x 214 x 185 mm (12,08 x 8,42 x 7,29'')
4 mm thickness: 387 x 269 x 233 mm (15,22 x 10,60 x 9,19'')
6 mm thickness: 580 x 404 x 350 mm (22,83 x 15,91 x 13,78'')
1/4''(6.35mm) thickness: 614 x 428 x 370 mm (24,17 x 16,83 x 14,58'')
Work area:
3 mm thickness: 693 x 714 mm (27,28 x 28,11'')
1/8''(3.175mm) thickness: 733 x 756 mm (28,88 x 29,75'')
4 mm thickness: 924 x 952 mm (36,38 x 37,48'')
6 mm thickness: 1386 x 1428 mm (54,57 x 56,22'')
1/4''(6.35mm) thickness: 1467 x 1511 mm (57,75 x 59,50'')
Biggest part:
3 mm thickness: 258 x 258 mm (10,16 x 10,16'')
1/8''(3.175mm) thickness: 273 x 273 mm (10,75 x 10,75'')
4 mm thickness: 344 x 344 mm (13,54 x 13,54'')
6 mm thickness: 516 x 516 mm (20,31 x 20,31'')
1/4''(6.35mm) thickness: 546 x 546 mm (21,50 x 21,50'')
In the file:
green color - score/drawing (cut mode with low power and high speed)
blue color - engrave
pink color - cut
black color - cut
What you receive:
You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:
the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction
If you have any questions feel free to contact me:)
