Laser cut design "Fireplace". Vector plan for laser cutting machine

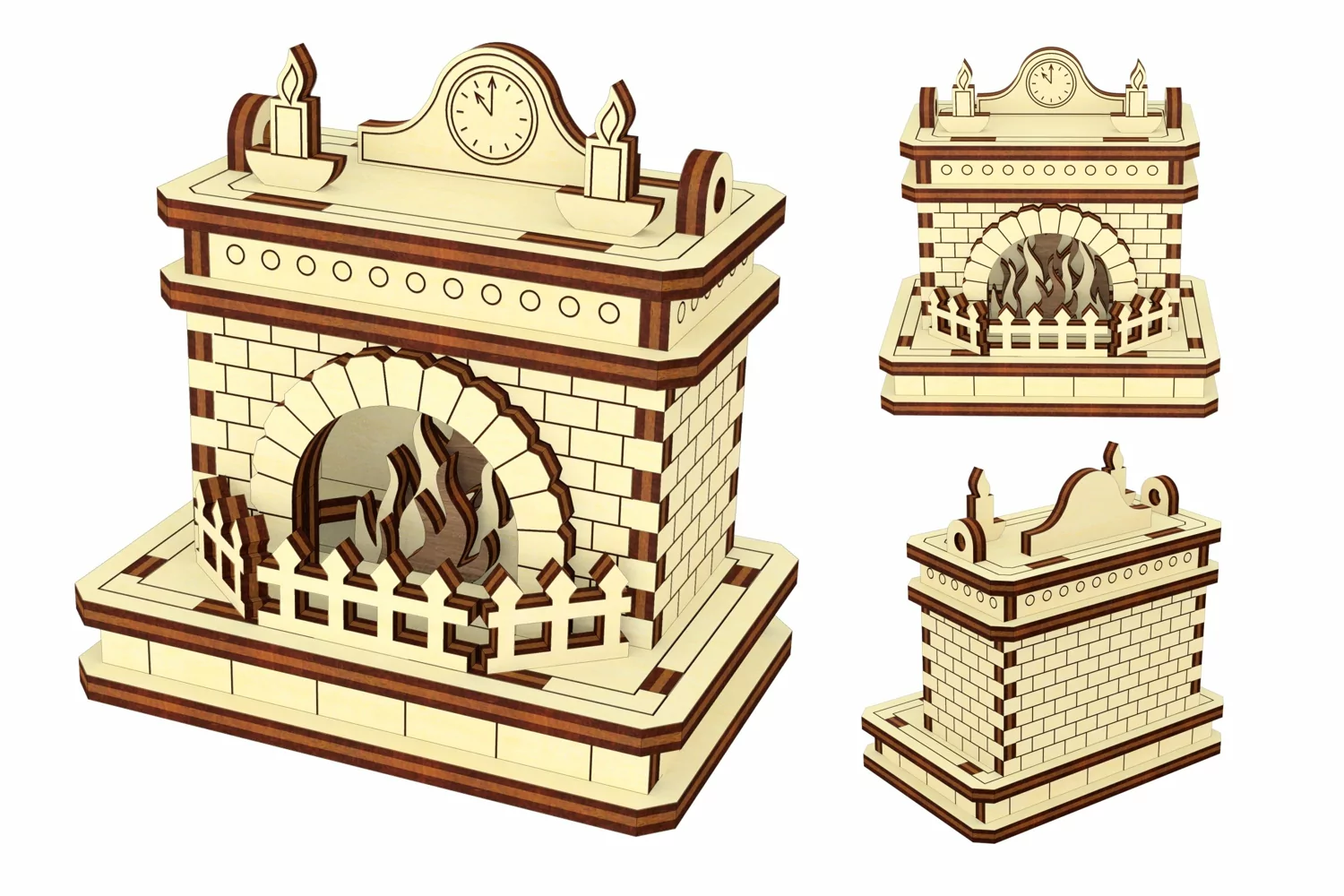

This is a small miniature of fireplace that can be used not only as a doll's furniture, but also as an ornament. The fireplace includes rings on which it can be hung
Material thickness (versions of the files): 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)
Sizes:
3 mm thickness: 68 x 46 x 67 mm (2,68 x 1,81 x 2,64'')
1/8''(3.175mm) thickness: 72 x 49 x 71 mm (2,83 x 1,92 x 2,79'')
4 mm thickness: 91 x 61 x 89 mm (3,57 x 2,41 x 3,52'')
6 mm thickness: 136 x 92 x 134 mm (5,35 x 3,62 x 5,28'')
1/4''(6.35mm) thickness: 144 x 97 x 142 mm (5,67 x 3,83 x 5,58'')
Work area:
3 mm thickness: 233 x 118 mm (9,17 x 4,65'')
1/8''(3.175mm) thickness: 247 x 125 mm (9,71 x 4,92'')
4 mm thickness: 311 x 157 mm (12,23 x 6,19'')
6 mm thickness: 466 x 236 mm (18,35 x 9,29'')
1/4''(6.35mm) thickness: 493 x 250 mm (19,42 x 9,83'')
In the file:
green color - score/drawing (cut mode with low power and high speed)
pink color - cut
black color - cut
What you receive:
You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:
the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction
If you have any questions feel free to contact me:)
