Sideboard ornament miniature Cupboard Cabinet laser cut file

Laser cut design "Sideboard". Vector plan for laser cutting machine

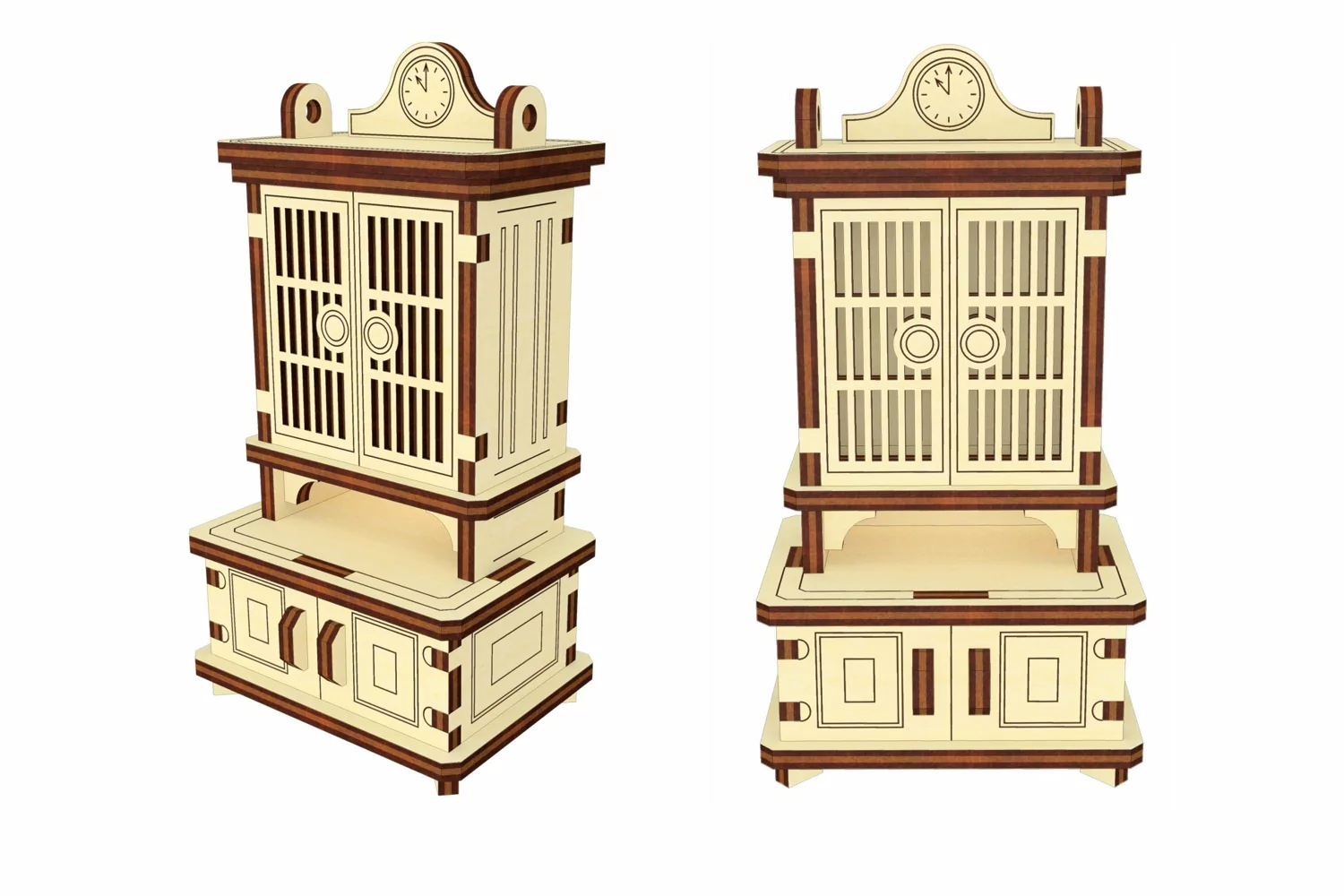

This is a small miniature of sideboard that can be used not only as a doll's furniture, but also as an ornament. The sideboard includes rings on which it can be hung

Material thickness (versions of the files): 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)

Sizes:

3 mm thickness: 55 x 41 x 99 mm (2,17 x 1,61 x 3,90'')

1/8''(3.175mm) thickness: 58 x 43 x 105 mm (2,29 x 1,71 x 4,13'')

4 mm thickness: 73 x 55 x 132 mm (2,89 x 2,15 x 5,20'')

6 mm thickness: 110 x 82 x 198 mm (4,33 x 3,23 x 7,80'')

1/4''(6.35mm) thickness: 116 x 87 x 210 mm (4,58 x 3,42 x 8,25'')

Work area:

3 mm thickness: 245 x 105 mm (9,65 x 4,13'')

1/8''(3.175mm) thickness: 259 x 111 mm (10,21 x 4,38'')

4 mm thickness: 327 x 140 mm (12,86 x 5,51'')

6 mm thickness: 490 x 210 mm (19,29 x 8,27'')

1/4''(6.35mm) thickness: 519 x 222 mm (20,42 x 8,75'')

In the file:

green color - score/drawing (cut mode with low power and high speed)

pink color - cut

black color - cut

What you receive:

You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:

the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction

If you have any questions feel free to contact me:)
