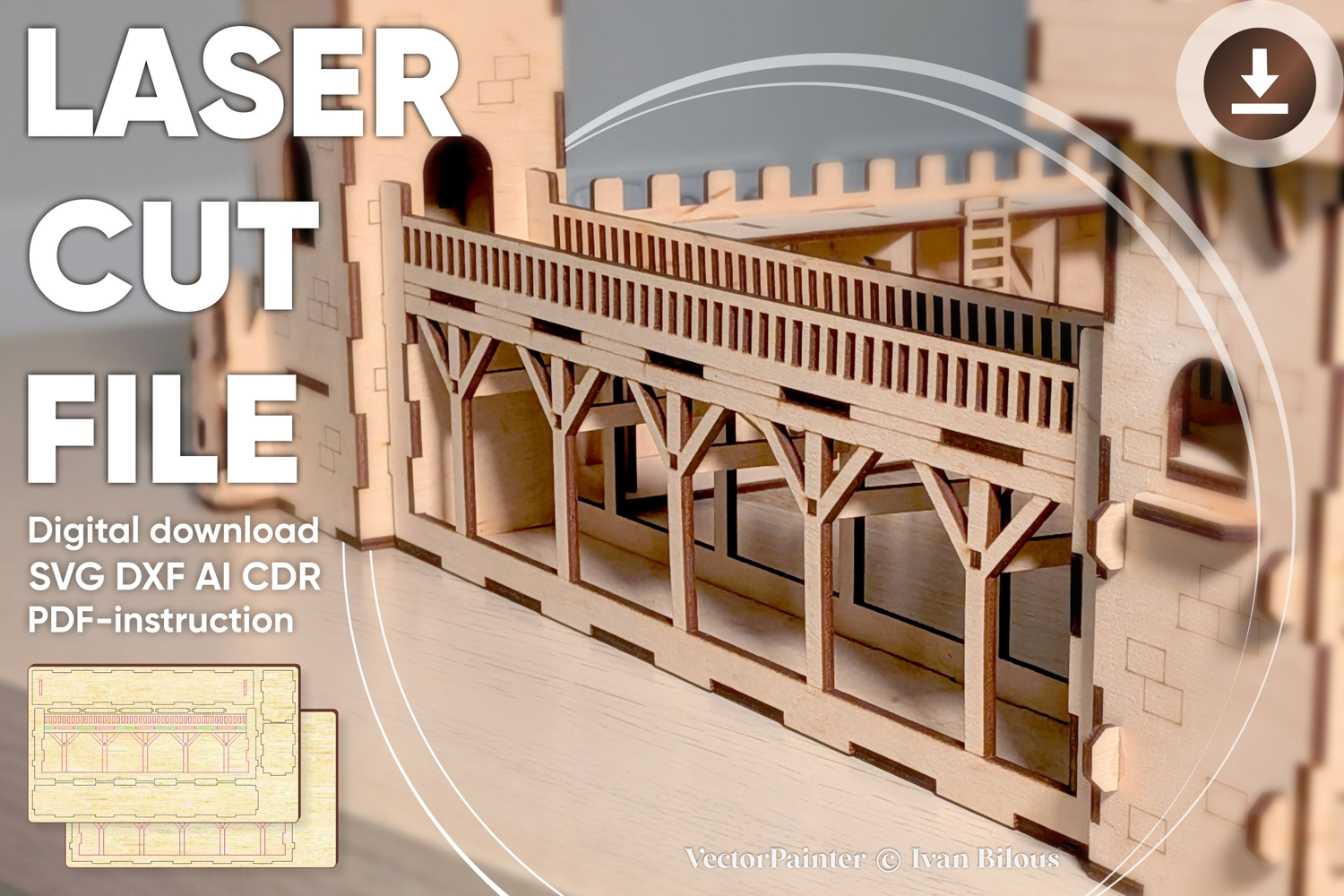

Laser cut design "Bridge of the Castle Set". Vector plan for CNC laser machines.
This is one of the blocks of the Castle. In the future, I plan to expand this design and create many additions for it (towers, walls, gates, bridges, etc.) that can be combined with each other.
You will be able to design and connect these blocks to create a wide variety of the castles.
Watch for new additions in my store in a separate category "Castle set" or just text in the search field "Castle" to see everything that is available at the moment
Also you can see full blocks of the Castle designs by this link
https://designbundles.net/vectorpainter/castle-set
Material thickness: 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)
Sizes:
3 mm thickness: 304 x 46 x 98 mm (11,97 x 1,81 x 3,86'')
1/8''(3.175mm) thickness: 322 x 49 x 104 mm (12,67 x 1,92 x 4,08'')
4 mm thickness: 405 x 61 x 131 mm (15,96 x 2,41 x 5,14'')
6 mm thickness: 608 x 92 x 196 mm (23,94 x 3,62 x 7,72'')
1/4''(6.35mm) thickness: 643 x 97 x 207 mm (25,33 x 3,83 x 8,17'')
Work area:
3 mm thickness: 354 x 294 mm (13,94 x 11,57'')
1/8''(3.175mm) thickness: 375 x 311 mm (14,75 x 12,25'')
4 mm thickness: 472 x 392 mm (18,58 x 15,43'')
6 mm thickness: 708 x 588 mm (27,87 x 23,15'')
1/4''(6.35mm) thickness: 749 x 622 mm (29,50 x 24,50'')
Biggest part:
3 mm thickness: 304 x 98 mm (11,97 x 3,86'')
1/8''(3.175mm) thickness: 322 x 104 mm (12,67 x 4,08'')
4 mm thickness: 405 x 131 mm (15,96 x 5,14'')
6 mm thickness: 608 x 196 mm (23,94 x 7,72'')
1/4''(6.35mm) thickness: 643 x 207 mm (25,33 x 8,17'')
In the file:
green color - draw (cut with little power and big speed)
pink color - cut
black color - cut
What you receive:
You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:
the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction
