Lantern Lamp -3d SVG laser cut file, Glowforge file

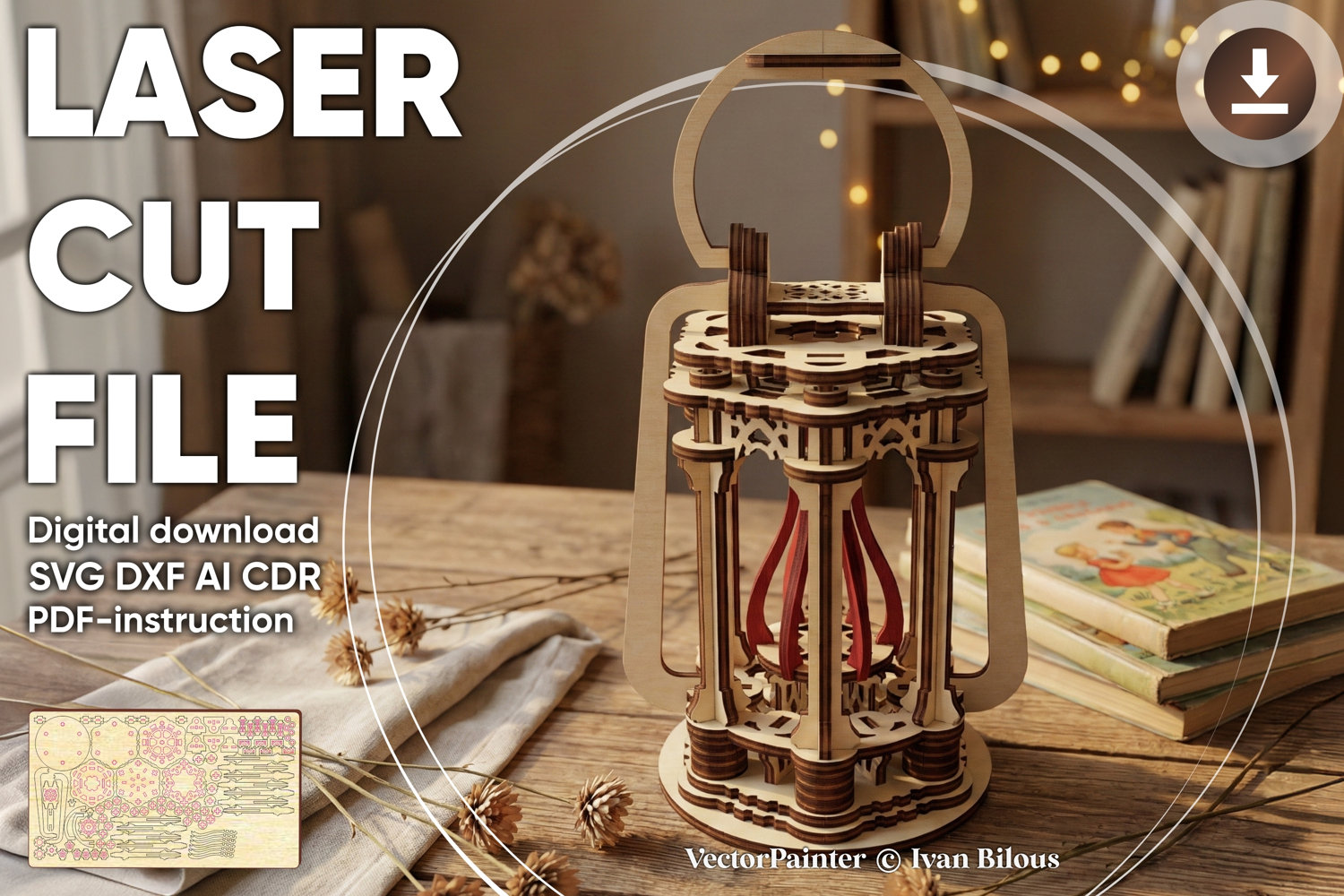

Laser cut design "Lantern". Vector plan for laser cutting machine

Material thickness (versions of the files): 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)

Sizes:

3 mm thickness: 107 x 90 x 189 mm (4,21 x 3,54 x 7,44'')

1/8''(3.175mm) thickness: 113 x 95 x 200 mm (4,46 x 3,75 x 7,88'')

4 mm thickness: 143 x 120 x 252 mm (5,62 x 4,72 x 9,92'')

6 mm thickness: 214 x 180 x 378 mm (8,43 x 7,09 x 14,88'')

1/4''(6.35mm) thickness: 226 x 191 x 400 mm (8,92 x 7,50 x 15,75'')

Work area:

3 mm thickness: 430 x 237 mm (16,93 x 9,33'')

1/8''(3.175mm) thickness: 455 x 251 mm (17,92 x 9,88'')

4 mm thickness: 573 x 316 mm (22,57 x 12,44'')

6 mm thickness: 860 x 474 mm (33,86 x 18,66'')

1/4''(6.35mm) thickness: 910 x 502 mm (35,83 x 19,75'')

In the file:

pink color - cut (inner cut lines)

black color - cut (outer cut lines)

What you receive:

You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:

the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction

If you have any questions feel free to contact me:)
