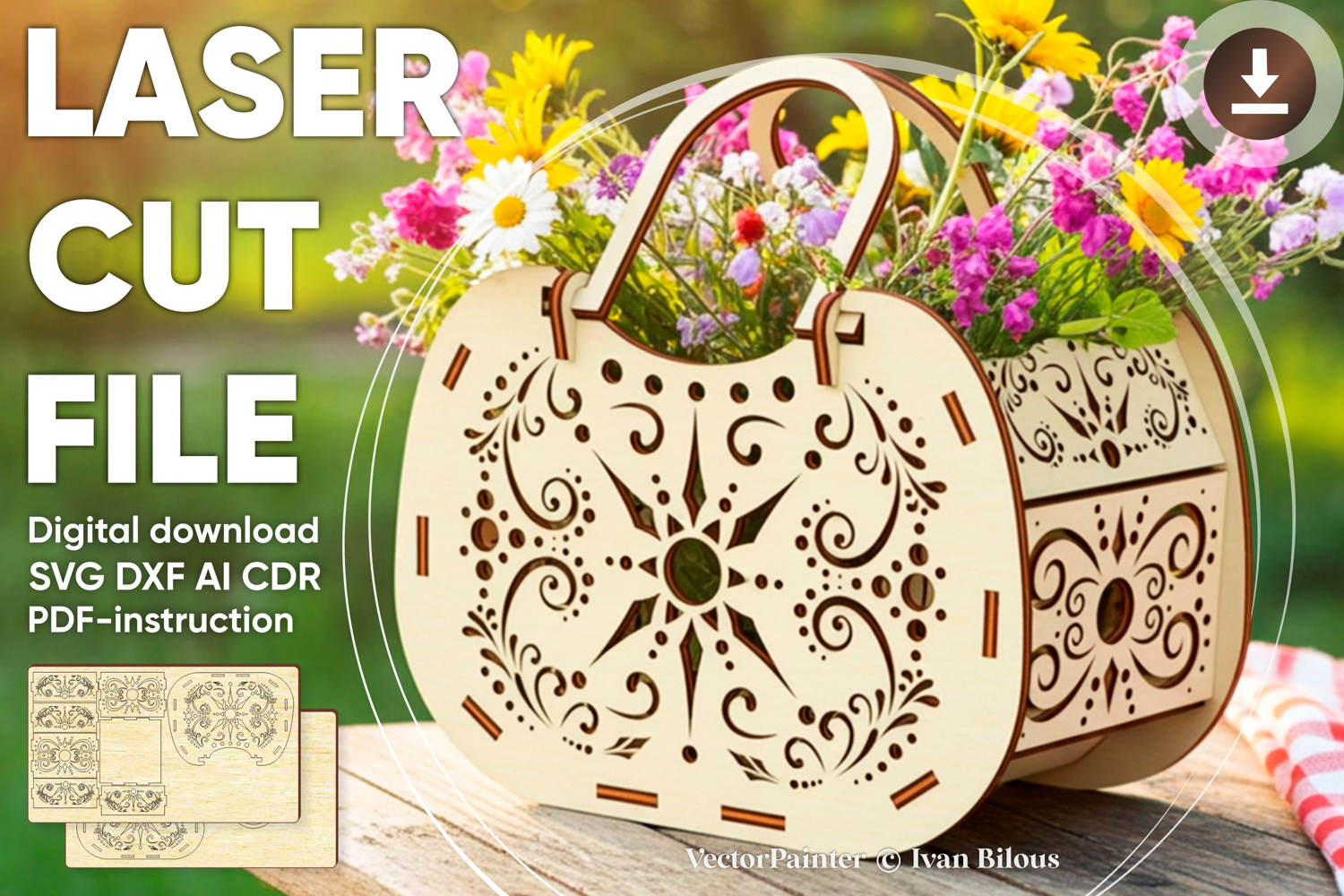

Laser cut design "Set of baskets". Vector plan for laser cutting machine
Material thickness (versions of the files): 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)
SMALL BASKET
Sizes:
3 mm thickness: 150 x 80 x 110 mm (5,91 x 3,15 x 4,33'')
1/8''(3.175mm) thickness: 159 x 85 x 116 mm (6,25 x 3,33 x 4,58'')
4 mm thickness: 200 x 107 x 147 mm (7,87 x 4,20 x 5,77'')
6 mm thickness: 300 x 160 x 220 mm (11,81 x 6,30 x 8,66'')
1/4''(6.35mm) thickness: 318 x 169 x 233 mm (12,50 x 6,67 x 9,17'')
Work area:
3 mm thickness: 332 x 224 mm (13,07 x 8,82'')
1/8''(3.175mm) thickness: 351 x 237 mm (13,83 x 9,33'')
4 mm thickness: 443 x 299 mm (17,43 x 11,76'')
6 mm thickness: 664 x 448 mm (26,14 x 17,64'')
1/4''(6.35mm) thickness: 703 x 474 mm (27,67 x 18,67'')
Biggest part:
3 mm thickness: 150 x 110 mm (5,91 x 4,33'')
1/8''(3.175mm) thickness: 159 x 116 mm (6,25 x 4,58'')
4 mm thickness: 200 x 147 mm (7,87 x 5,77'')
6 mm thickness: 300 x 220 mm (11,81 x 8,66'')
1/4''(6.35mm) thickness: 318 x 233 mm (12,50 x 9,17'')
_____________________
AVERAGE BASKET
Sizes:
3 mm thickness: 200 x 106 x 147 mm (7,87 x 4,17 x 5,79'')
1/8''(3.175mm) thickness: 212 x 112 x 156 mm (8,33 x 4,42 x 6,13'')
4 mm thickness: 267 x 141 x 196 mm (10,50 x 5,56 x 7,72'')
6 mm thickness: 400 x 212 x 294 mm (15,75 x 8,35 x 11,57'')
1/4''(6.35mm) thickness: 423 x 224 x 311 mm (16,67 x 8,83 x 12,25'')
Work area:
3 mm thickness: 432 x 380 mm (17,01 x 14,96'')
1/8''(3.175mm) thickness: 457 x 402 mm (18,00 x 15,83'')
4 mm thickness: 576 x 507 mm (22,68 x 19,95'')
6 mm thickness: 864 x 760 mm (34,02 x 29,92'')
1/4''(6.35mm) thickness: 914 x 804 mm (36,00 x 31,67'')
Biggest part:
3 mm thickness: 200 x 147 mm (7,87 x 5,79'')
1/8''(3.175mm) thickness: 212 x 156 mm (8,33 x 6,13'')
4 mm thickness: 267 x 196 mm (10,50 x 7,72'')
6 mm thickness: 400 x 294 mm (15,75 x 11,57'')
1/4''(6.35mm) thickness: 423 x 311 mm (16,67 x 12,25'')
_____________________
BIG BASKET
Sizes:
3 mm thickness: 250 x 133 x 183 mm (9,84 x 5,24 x 7,20'')
1/8''(3.175mm) thickness: 265 x 141 x 194 mm (10,42 x 5,54 x 7,63'')
4 mm thickness: 333 x 177 x 244 mm (13,12 x 6,98 x 9,61'')
6 mm thickness: 500 x 266 x 366 mm (19,69 x 10,47 x 14,41'')
1/4''(6.35mm) thickness: 529 x 282 x 387 mm (20,83 x 11,08 x 15,25'')
Work area:
3 mm thickness: 900 x 225 mm (35,43 x 8,86'')
1/8''(3.175mm) thickness: 953 x 238 mm (37,50 x 9,38'')
4 mm thickness: 1200 x 300 mm (47,24 x 11,81'')
6 mm thickness: 1800 x 450 mm (70,87 x 17,72'')
1/4''(6.35mm) thickness: 1905 x 476 mm (75,00 x 18,75'')
Biggest part:
3 mm thickness: 250 x 183 mm (9,84 x 7,20'')
1/8''(3.175mm) thickness: 265 x 194 mm (10,42 x 7,63'')
4 mm thickness: 333 x 244 mm (13,12 x 9,61'')
6 mm thickness: 500 x 366 mm (19,69 x 14,41'')
1/4''(6.35mm) thickness: 529 x 387 mm (20,83 x 15,25'')
In the file:
black color - cut
What you receive:
You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:
the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction
If you have any questions feel free to contact me:)
