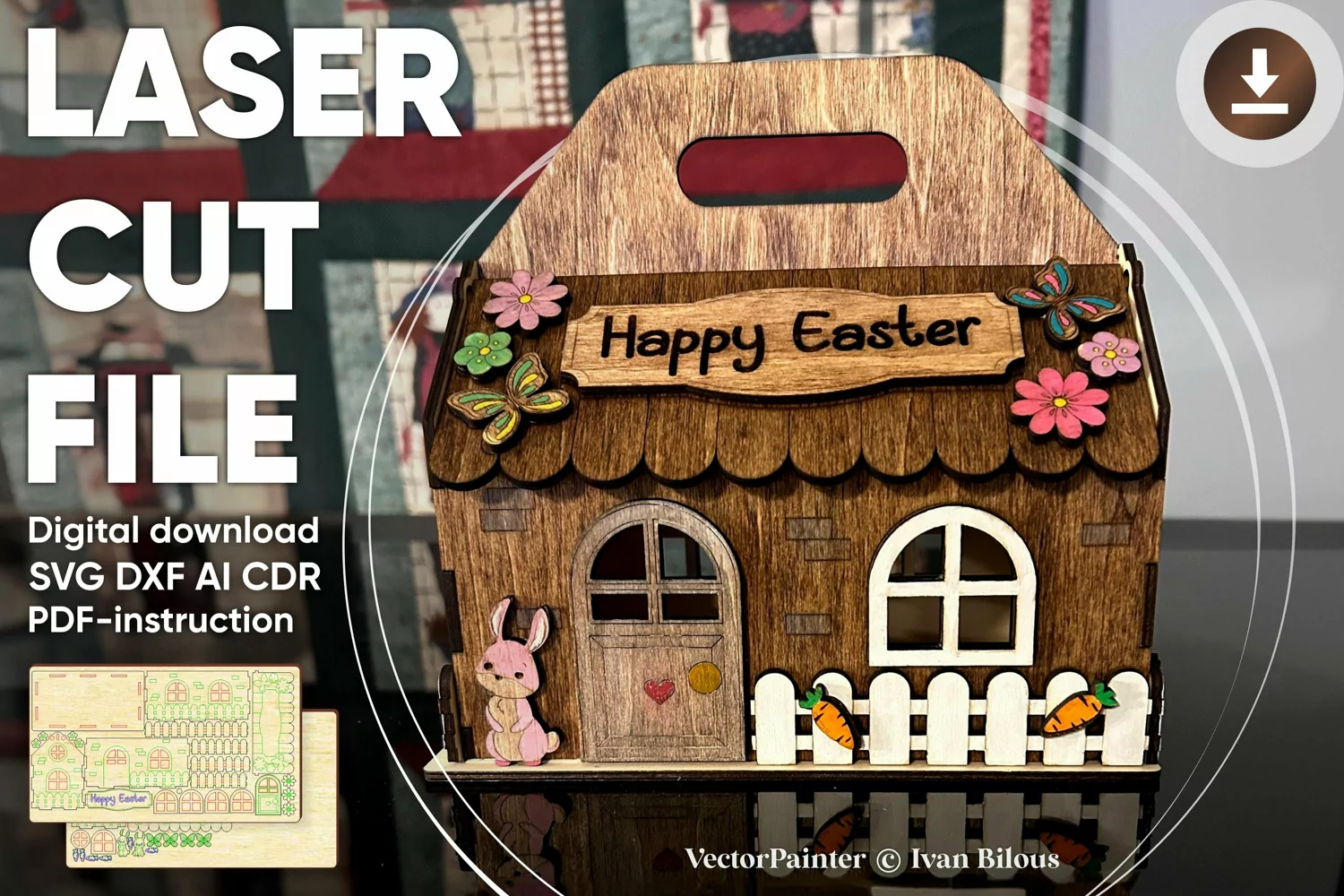

Laser cut design "Easter Candy Box". Vector plan for laser cutting machine
Material thickness (versions of the files): 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)
Sizes:
3 mm thickness: 182 x 97 x 170 mm (7,17 x 3,82 x 6,69'')
1/8''(3.175mm) thickness: 193 x 103 x 180 mm (7,58 x 4,04 x 7,08'')
4 mm thickness: 243 x 129 x 227 mm (9,55 x 5,09 x 8,92'')
6 mm thickness: 364 x 194 x 340 mm (14,33 x 7,64 x 13,39'')
1/4''(6.35mm) thickness: 385 x 205 x 360 mm (15,17 x 8,08 x 14,17'')
Work area:
3 mm thickness: 694 x 236 mm (27,32 x 9,29'')
1/8''(3.175mm) thickness: 734 x 250 mm (28,92 x 9,83'')
4 mm thickness: 925 x 315 mm (36,43 x 12,39'')
6 mm thickness: 1388 x 472 mm (54,65 x 18,58'')
1/4''(6.35mm) thickness: 1469 x 500 mm (57,83 x 19,67'')
Biggest part:
3 mm thickness: 182 x 97 mm (7,17 x 3,82'')
1/8''(3.175mm) thickness: 193 x 103 mm (7,58 x 4,04'')
4 mm thickness: 243 x 129 mm (9,55 x 5,09'')
6 mm thickness: 364 x 194 mm (14,33 x 7,64'')
1/4''(6.35mm) thickness: 385 x 205 mm (15,17 x 8,08'')
In the file:
green color - score (cut with low power and high speed)
blue color - engrave
pink color - cut (inner cut lines)
black color - cut (outer cut lines)
What you receive:
You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:
the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction
If you have any questions feel free to contact me:)
