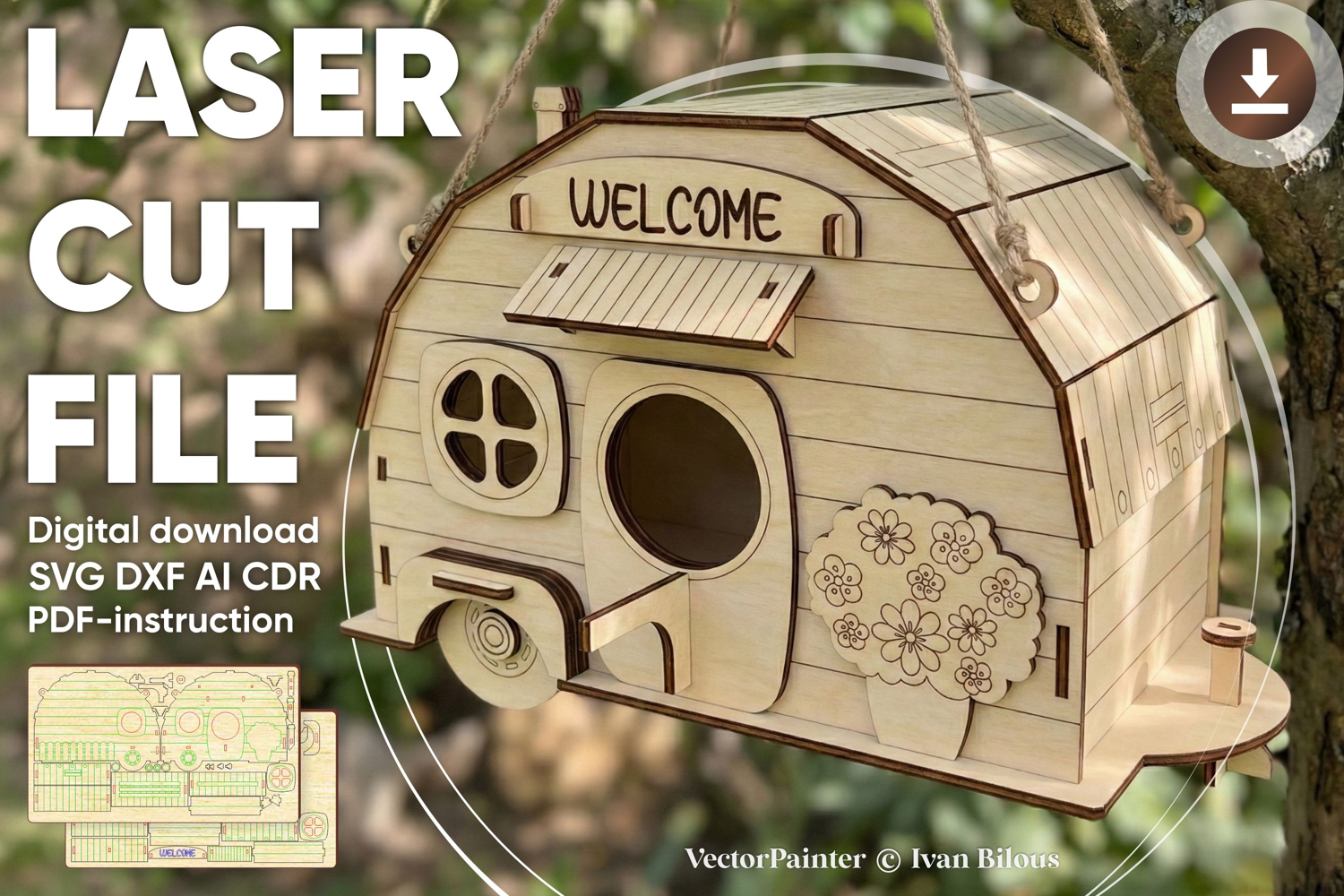

Laser cut design "Camper Birdhouse #2". Vector plan for laser cutting machine
Material thickness (versions of the files): 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)
Sizes:
3 mm thickness: 246 x 138 x 166 mm (9,69 x 5,43 x 6,54'')
1/8''(3.175mm) thickness: 260 x 146 x 176 mm (10,25 x 5,75 x 6,92'')
4 mm thickness: 328 x 184 x 221 mm (12,91 x 7,24 x 8,71'')
6 mm thickness: 492 x 276 x 332 mm (19,37 x 10,87 x 13,07'')
1/4''(6.35mm) thickness: 521 x 292 x 351 mm (20,50 x 11,50 x 13,83'')
Work area:
3 mm thickness: 430 x 475 mm (16,93 x 18,70'')
1/8''(3.175mm) thickness: 455 x 503 mm (17,92 x 19,79'')
4 mm thickness: 573 x 633 mm (22,57 x 24,93'')
6 mm thickness: 860 x 950 mm (33,86 x 37,40'')
1/4''(6.35mm) thickness: 910 x 1005 mm (35,83 x 39,58'')
Biggest part:
3 mm thickness: 246 x 138 mm (9,69 x 5,43'')
1/8''(3.175mm) thickness: 260 x 146 mm (10,25 x 5,75'')
4 mm thickness: 328 x 184 mm (12,91 x 7,24'')
6 mm thickness: 492 x 276 mm (19,37 x 10,87'')
1/4''(6.35mm) thickness: 521 x 292 mm (20,50 x 11,50'')
In the file:
green color - score (cut with low power and high speed)
blue color - engrave
pink color - cut (inner cut lines)
black color - cut (outer cut lines)
What you receive:
You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:
the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction
If you have any questions feel free to contact me:)
