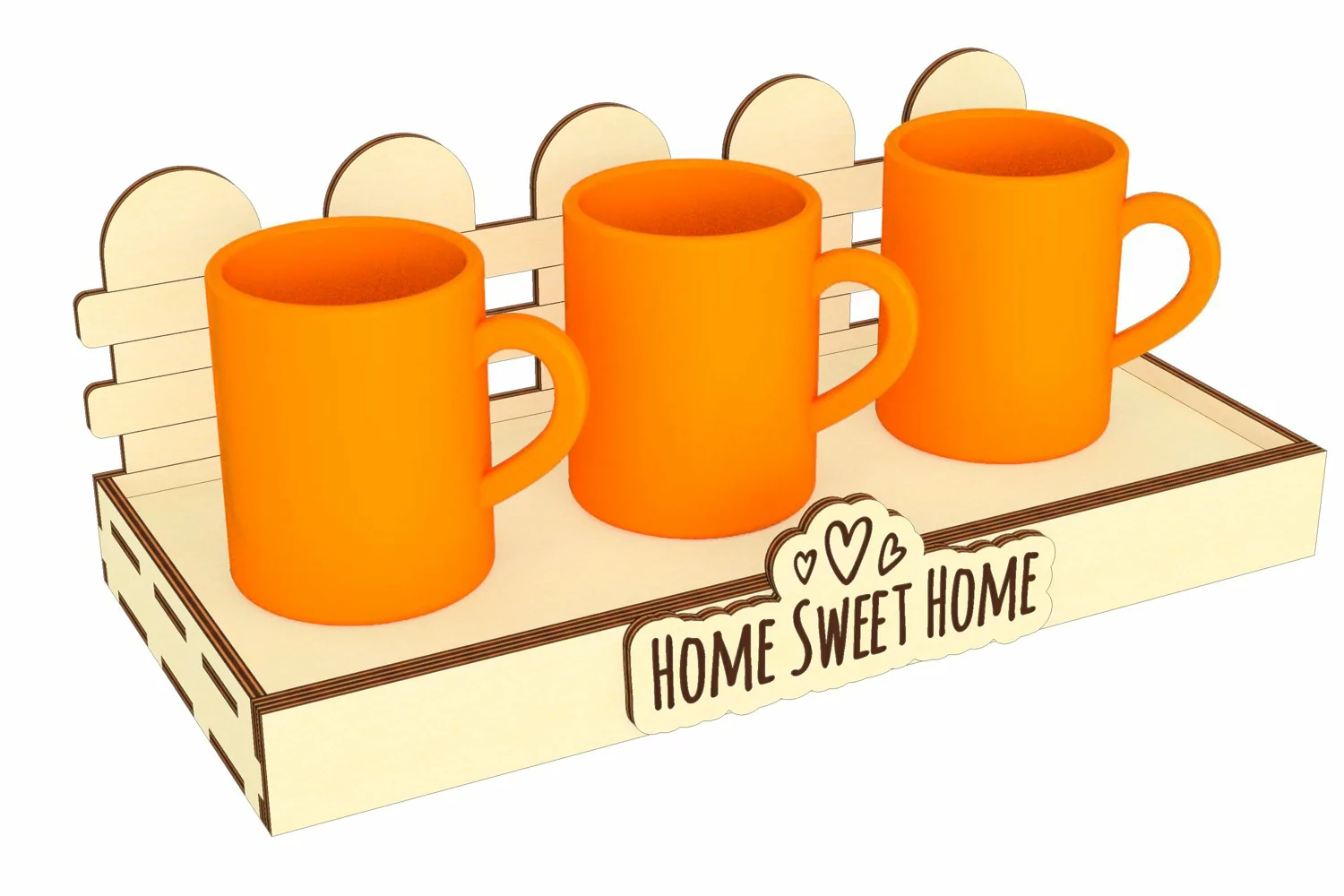

Cup display stand - laser cut files, Glowforge pattern SVG

Laser cut design "Cup Stand". Vector plan for laser cutting machine

Material thickness (versions of the files): 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)

Sizes:

3 mm thickness: 449 x 200 x 170 mm (17,68 x 7,87 x 6,69'')

1/8''(3.175mm) thickness: 475 x 212 x 180 mm (18,71 x 8,33 x 7,08'')

4 mm thickness: 455 x 206 x 171 mm (17,91 x 8,11 x 6,73'')

6 mm thickness: 455 x 206 x 171 mm (17,91 x 8,11 x 6,73'')

1/4''(6.35mm) thickness: 482 x 218 x 181 mm (18,96 x 8,58 x 7,13'')

Work area:

3 mm thickness: 905 x 428 mm (35,63 x 16,85'')

1/8''(3.175mm) thickness: 958 x 453 mm (37,71 x 17,83'')

4 mm thickness: 914 x 436 mm (35,98 x 17,17'')

6 mm thickness: 914 x 436 mm (35,98 x 17,17'')

1/4''(6.35mm) thickness: 967 x 461 mm (38,08 x 18,17'')

Biggest part:

3 mm thickness: 449 x 200 mm (17,68 x 7,87'')

1/8''(3.175mm) thickness: 475 x 212 mm (18,71 x 8,33'')

4 mm thickness: 449 x 200 mm (17,68 x 7,87'')

6 mm thickness: 449 x 200 mm (17,68 x 7,87'')

1/4''(6.35mm) thickness: 475 x 212 mm (18,71 x 8,33'')

In the file:

blue color - engrave

green color - score / drawing (cut mode with low power and high speed)

black color - cut (outer cut lines)

What you receive:

You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:

the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instructions

If you have any questions feel free to contact me:)
