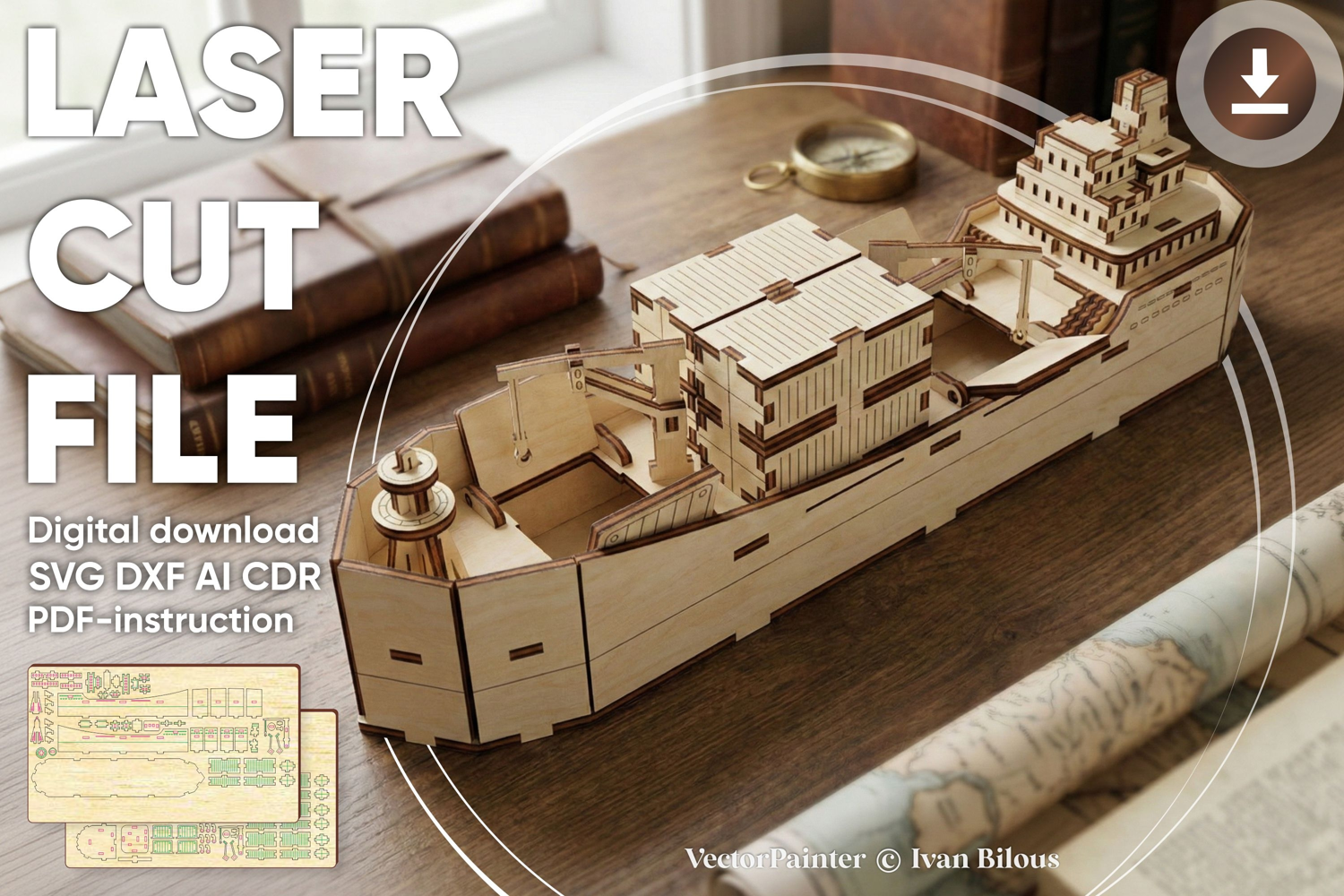

🎨 Laser cut design "Cargo Ship" 🎨
DIGITAL FILE for laser cutting machine with ASSEMBLY INSTRUCTION
🤏Material thickness (versions of the files):
3mm, 1/8''(3.175mm), 3.2 mm, 4mm, 6mm, 1/4''(6.35mm)
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪
📏 Finished SIZE of design
3 mm thickness: 276 x 61 x 71 mm (10,87 x 2,40 x 2,80'')
1/8''(3.175mm) thickness: 292 x 65 x 75 mm (11,50 x 2,54 x 2,96'')
4 mm thickness: 368 x 81 x 95 mm (14,49 x 3,20 x 3,73'')
6 mm thickness: 552 x 122 x 142 mm (21,73 x 4,80 x 5,59'')
1/4''(6.35mm) thickness: 584 x 129 x 150 mm (23,00 x 5,08 x 5,92'')
📐WORK AREA - total area of wood required for cutting
3 mm thickness: 423 x 339 mm (16,65 x 13,35'')
1/8''(3.175mm) thickness: 448 x 359 mm (17,63 x 14,13'')
4 mm thickness: 564 x 452 mm (22,20 x 17,80'')
6 mm thickness: 846 x 678 mm (33,31 x 26,69'')
1/4''(6.35mm) thickness: 895 x 718 mm (35,25 x 28,25'')
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪
🔧SETTINGS and MODES
green color - drawing (score - cut with little power and high speed)
pink color - cut
black color - cut
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪
🛒WHAT YOU RECEIVE
🟢 ready made laser cutting files for 3mm, 1/8''(3.175mm), 3.2 mm, 4mm, 6mm, 1/4''(6.35mm) material thickness
🟢 each file is saved in SVG, DXF, CDR, AI formats
🟢 detailed PDF-instructions with 3D pictures
🟢 free support consultations and small adjustments
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪
📧Feel free to contact me if you have any questions
😊 I always happy to help you
