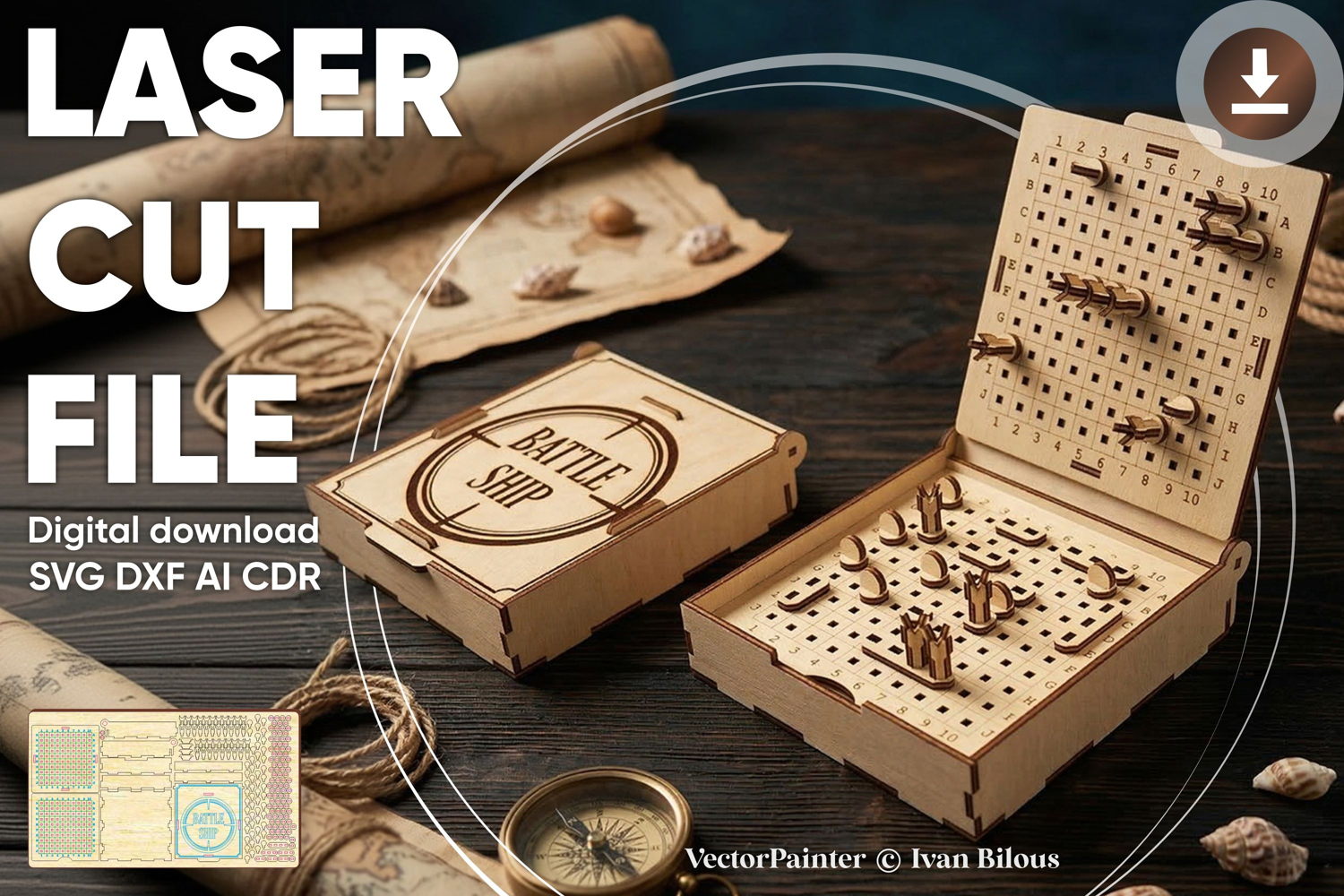

🎨 Laser cut design "Battle Ship" 🎨
DIGITAL FILE for laser cutting machine with ASSEMBLY INSTRUCTION
🤏Material thickness (versions of the files):
3mm, 1/8in (3.175mm), 4mm, 5.5mm, 6mm, 1/4in (6.35mm)
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪
📏 Finished SIZE of design
3 mm thickness: 126 x 139 x 34 mm (4.96 x 5.47 x 1.34'')
1/8in (3.175mm) thickness: 133 x 147 x 36 mm (5.25 x 5.79 x 1.42'')
4 mm thickness: 168 x 185 x 45 mm (6.61 x 7.30 x 1.78'')
6 mm thickness: 252 x 278 x 68 mm (9.92 x 10.94 x 2.68'')
5.5 mm thickness: 231 x 255 x 62 mm (9.09 x 10.03 x 2.46'')
1/4in (6.35mm) thickness: 267 x 294 x 72 mm (10.50 x 11.58 x 2.83'')
📐WORK AREA - total area of wood required for cutting
3 mm thickness: 471 x 265 mm (18.54 x 10.43'')
1/8in (3.175mm) thickness: 499 x 251 mm (19.63 x 11.04'')
4 mm thickness: 628 x 353 mm (24.72 x 13.91'')
5.5 mm thickness: 765 x 486 mm (34 x 19.12)
6 mm thickness: 942 x 530 mm (37.09 x 20.87'')
1/4in (6.35mm) thickness: 997 x 561 mm (39.25 x 22.08'')
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪
🔧SETTINGS and MODES
blue color - engrave
green color - draw (cut with little power and big speed)
pink color - cut
black color - cut
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪
🛒WHAT YOU RECEIVE
🟢 ready made laser cutting files for 3mm, 1/8in (3.175mm), 4mm, 5.5mm, 6mm, 1/4in (6.35mm) material thickness
🟢 each file is saved in SVG, DXF, CDR, AI formats
🟢 detailed PDF-instructions with 3D pictures
🟢 free support consultations and small adjustments
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪
📧Feel free to contact me if you have any questions
😊 I always happy to help you
