Layered Patterned Box - SVG laser cut file, Glowforge plan

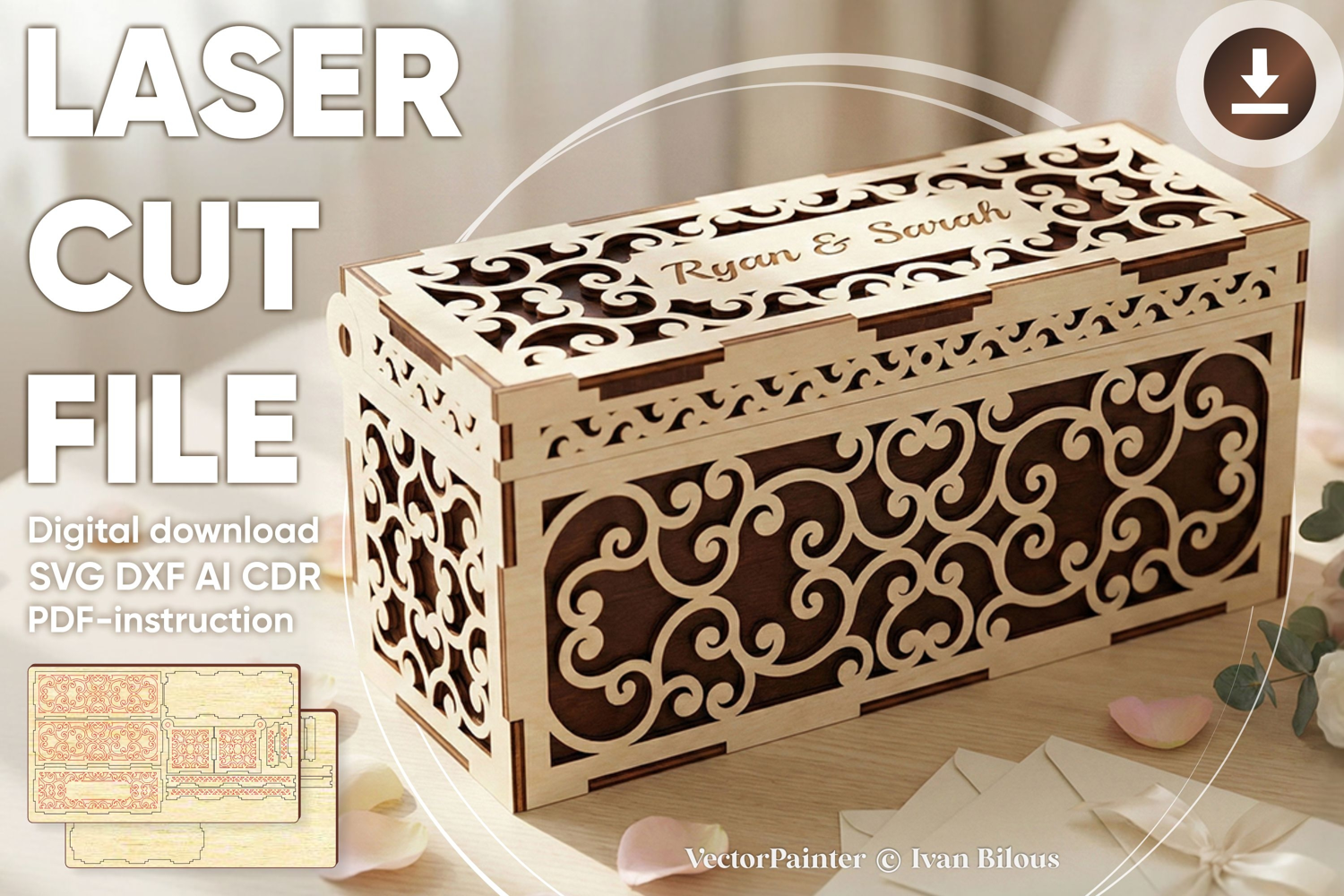

🎨 Laser cut design "Wedding wish box" - 2-layered pattern box with opening lid 🎨

DIGITAL FILE for laser cutting machine with ASSEMBLY INSTRUCTION

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

🤏Material thickness (versions of the files):

3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

📏 Finished SIZE of design

3 mm thickness: 210 x 84 x 95 mm (8,27 x 3,31 x 3,74'')

1/8''(3.175mm) thickness: 222 x 89 x 101 mm (8,75 x 3,50 x 3,96'')

4 mm thickness: 280 x 112 x 127 mm (11,02 x 4,41 x 4,99'')

6 mm thickness: 420 x 168 x 190 mm (16,54 x 6,61 x 7,48'')

1/4''(6.35mm) thickness: 445 x 178 x 201 mm (17,50 x 7,00 x 7,92'')

📐WORK AREA - total area of wood required for cutting

3 mm thickness: 840 x 232 mm (33,07 x 9,13'')

1/8''(3.175mm) thickness: 889 x 246 mm (35,00 x 9,67'')

4 mm thickness: 1120 x 309 mm (44,09 x 12,18'')

6 mm thickness: 1680 x 464 mm (66,14 x 18,27'')

1/4''(6.35mm) thickness: 1778 x 491 mm (70,00 x 19,33'')

🟧 LARGEST PART

3 mm thickness: 210 x 75 mm (8,27 x 2,95'')

1/8''(3.175mm) thickness: 222 x 79 mm (8,75 x 3,13'')

4 mm thickness: 280 x 100 mm (11,02 x 3,94'')

6 mm thickness: 420 x 150 mm (16,54 x 5,91'')

1/4''(6.35mm) thickness: 445 x 159 mm (17,50 x 6,25'')

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

🛒WHAT YOU RECEIVE

🟢 ready made laser cutting files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) material thickness

🟢 each file is saved in SVG, DXF, CDR, AI formats

🟢 detailed PDF-instructions with 3D pictures

🟢 free support consultations and small adjustments

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

📧Feel free to contact me if you have any questions

😊 I always happy to help you
