Forest dollhouse - laser cutting file, CNC plan

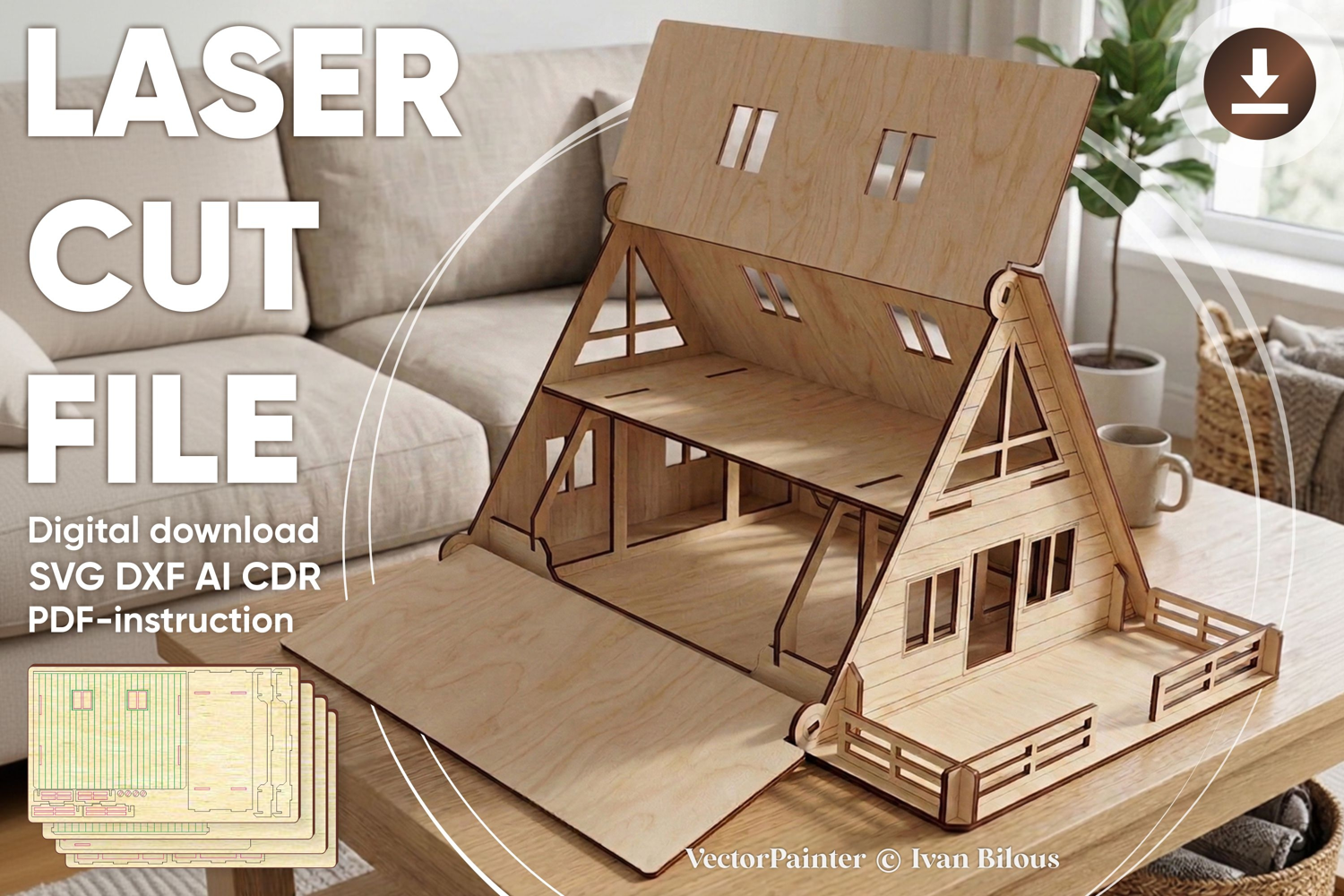

Model "Forest Dollhouse". Vector plan for CNC.

Material thickness: 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)

Sizes:

3 mm thickness: 200 x 306 x 167 mm (7,87 x 12,05 x 6,57'')

1/8''(3.175mm) thickness: 212 x 324 x 177 mm (8,33 x 12,75 x 6,96'')

4 mm thickness: 267 x 408 x 223 mm (10,50 x 16,06 x 8,77'')

6 mm thickness: 400 x 612 x 334 mm (15,75 x 24,09 x 13,15'')

1/4''(6.35mm) thickness: 423 x 648 x 353 mm (16,67 x 25,50 x 13,92'')

Work area:

3 mm thickness: 690 x 468 mm (27,17 x 18,43'')

1/8''(3.175mm) thickness: 730 x 495 mm (28,75 x 19,50'')

4 mm thickness: 920 x 624 mm (36,22 x 24,57'')

6 mm thickness: 1380 x 936 mm (54,33 x 36,85'')

1/4''(6.35mm) thickness: 1461 x 991 mm (57,50 x 39,00'')

Biggest part:

3 mm thickness: 200 x 306 mm (7,87 x 12,05'')

1/8''(3.175mm) thickness: 212 x 324 mm (8,33 x 12,75'')

4 mm thickness: 267 x 408 mm (10,50 x 16,06'')

6 mm thickness: 400 x 612 mm (15,75 x 24,09'')

1/4''(6.35mm) thickness: 423 x 648 mm (16,67 x 25,50'')

In the file:

green color - score (draw, cut mode with low power and high speed)

pink color - cut

black color - cut

What you receive:

You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:

the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction

If you have any questions feel free to contact me:)
