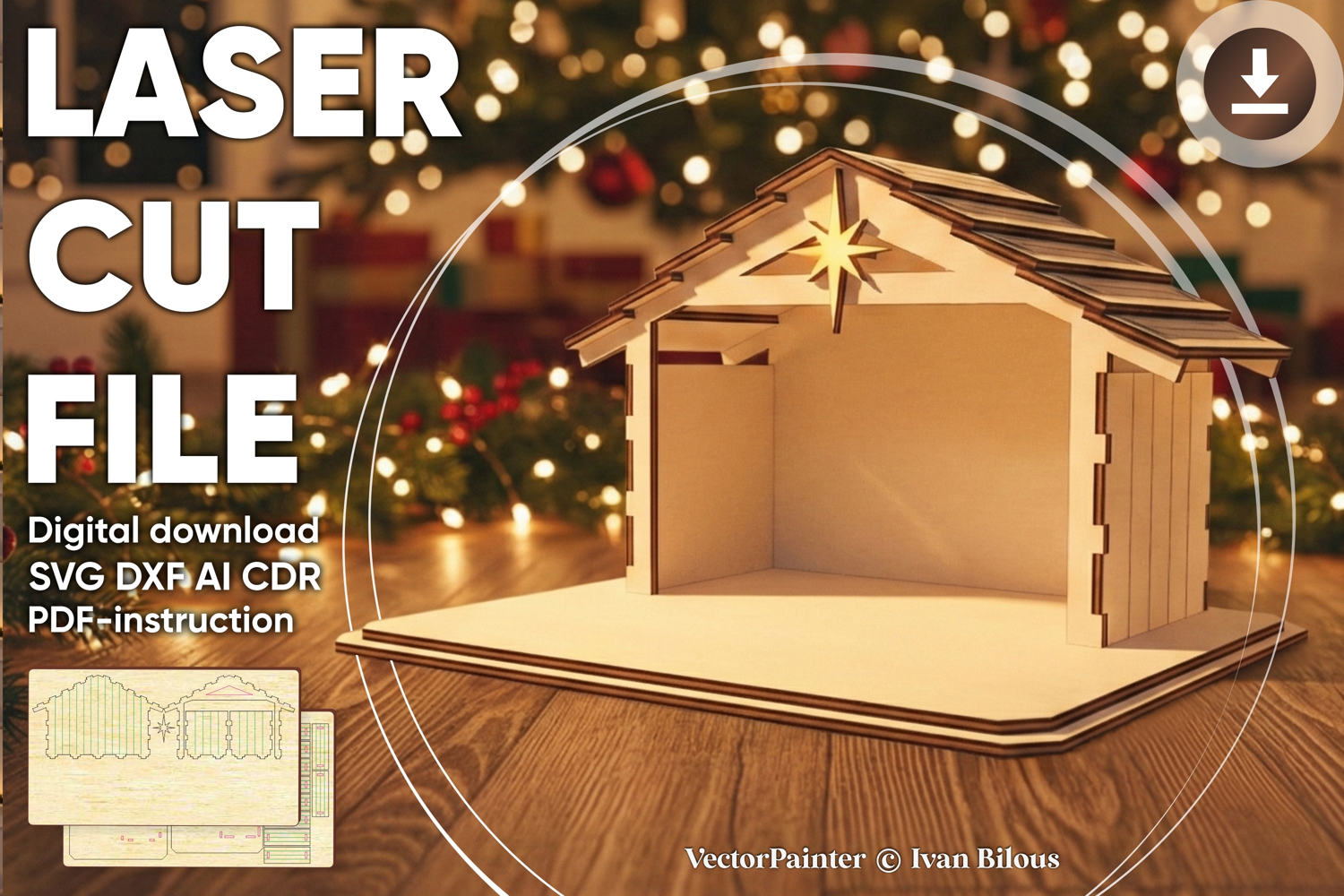

Laser cut design "Nativity barn #2". Vector plan for CNC.
Material thickness: 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)
Sizes:
3 mm thickness: 220 x 160 x 131 mm (8,66 x 6,30 x 5,16'')
1/8''(3.175mm) thickness: 233 x 169 x 139 mm (9,17 x 6,67 x 5,46'')
4 mm thickness: 293 x 213 x 175 mm (11,55 x 8,40 x 6,88'')
6 mm thickness: 440 x 320 x 262 mm (17,32 x 12,60 x 10,31'')
1/4''(6.35mm) thickness: 466 x 339 x 277 mm (18,33 x 13,33 x 10,92'')
Work area:
3 mm thickness: 425 x 355 mm (16,73 x 13,98'')
1/8''(3.175mm) thickness: 450 x 376 mm (17,71 x 14,79'')
4 mm thickness: 567 x 473 mm (22,31 x 18,64'')
6 mm thickness: 850 x 710 mm (33,46 x 27,95'')
1/4''(6.35mm) thickness: 900 x 751 mm (35,42 x 29,58'')
Biggest part:
3 mm thickness: 160 x 220 mm (6,30 x 8,66'')
1/8''(3.175mm) thickness: 169 x 233 mm (6,67 x 9,17'')
4 mm thickness: 213 x 293 mm (8,40 x 11,55'')
6 mm thickness: 320 x 440 mm (12,60 x 17,32'')
1/4''(6.35mm) thickness: 339 x 466 mm (13,33 x 18,33'')
In the file:
green color - draw (cut with little power and big speed)
pink color - cut
black color - cut
What you receive:
You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:
the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction
If you have any questions feel free to contact me:)
