Nativity barn #4 - laser cutting file, Glowforge pattern

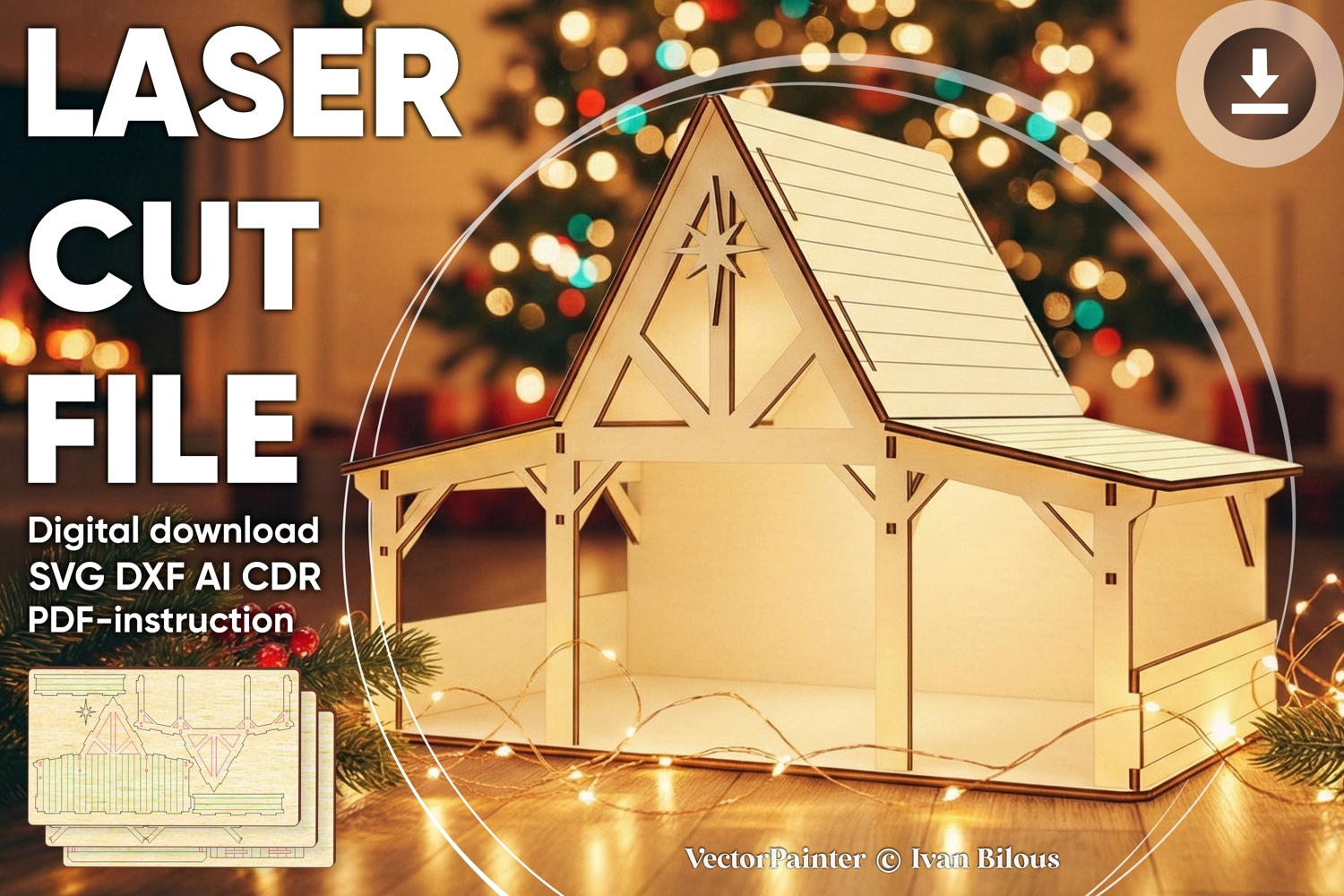

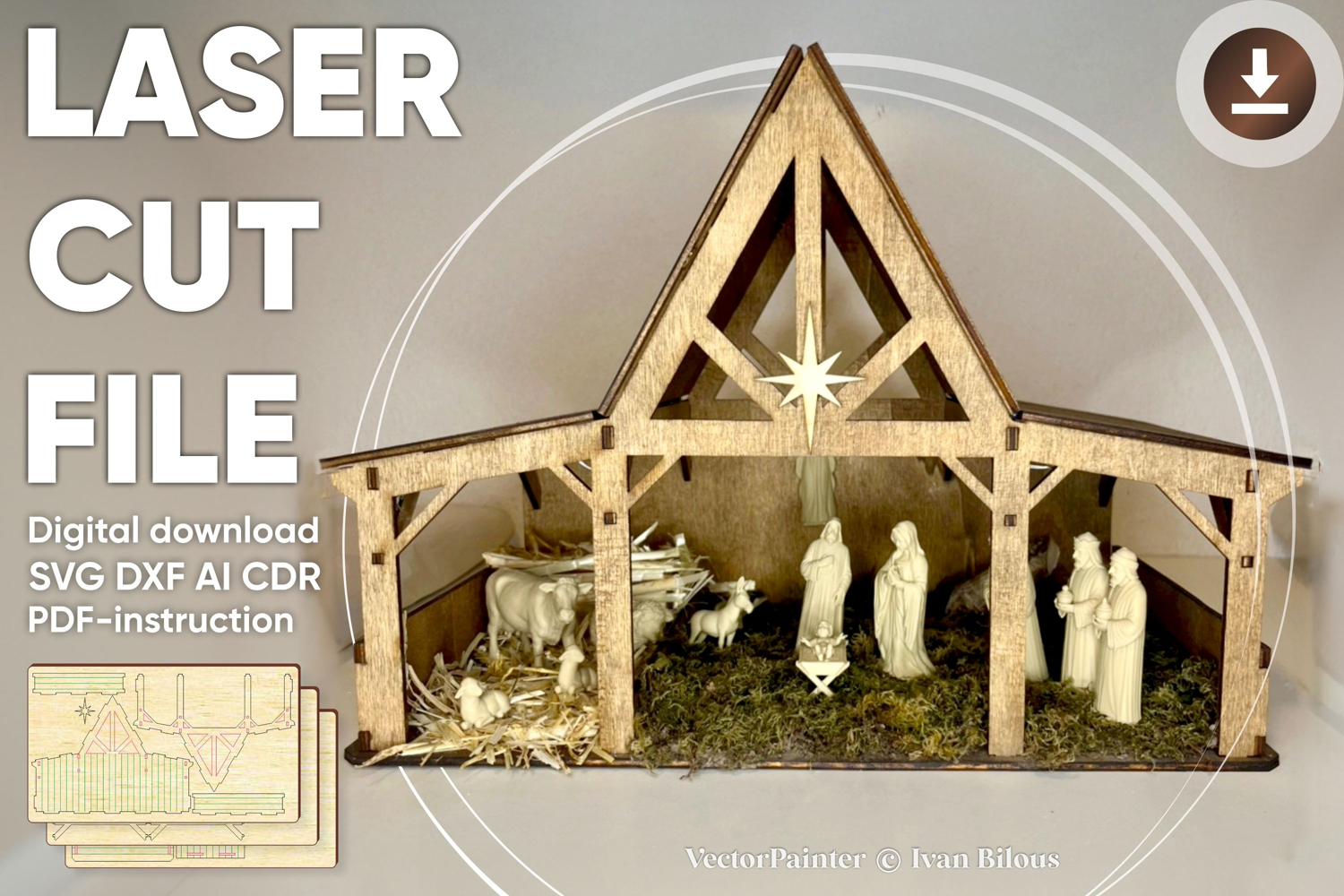

Laser cut design "Nativity barn #4". Vector plan for CNC.

Material thickness: 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)

Sizes:

3 mm thickness: 267 x 160 x 195 mm (10,51 x 6,30 x 7,68'')

1/8''(3.175mm) thickness: 283 x 169 x 206 mm (11,13 x 6,67 x 8,13'')

4 mm thickness: 356 x 213 x 260 mm (14,02 x 8,40 x 10,24'')

6 mm thickness: 534 x 320 x 390 mm (21,02 x 12,60 x 15,35'')

1/4''(6.35mm) thickness: 565 x 339 x 413 mm (22,25 x 13,33 x 16,25'')

Work area:

3 mm thickness: 664 x 484 mm (26,14 x 19,06'')

1/8''(3.175mm) thickness: 703 x 512 mm (27,67 x 20,17'')

4 mm thickness: 885 x 645 mm (34,86 x 25,41'')

6 mm thickness: 1328 x 968 mm (52,28 x 38,11'')

1/4''(6.35mm) thickness: 1405 x 1024 mm (55,33 x 40,33'')

Biggest part:

3 mm thickness: 263 x 193 mm (10,35 x 7,60'')

1/8''(3.175mm) thickness: 278 x 204 mm (10,96 x 8,04'')

4 mm thickness: 351 x 257 mm (13,81 x 10,13'')

6 mm thickness: 526 x 386 mm (20,71 x 15,20'')

1/4''(6.35mm) thickness: 557 x 409 mm (21,92 x 16,08'')

In the file:

green color - draw (cut with little power and big speed)

pink color - cut

black color - cut

What you receive:

You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:

the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction

If you have any questions feel free to contact me:)
