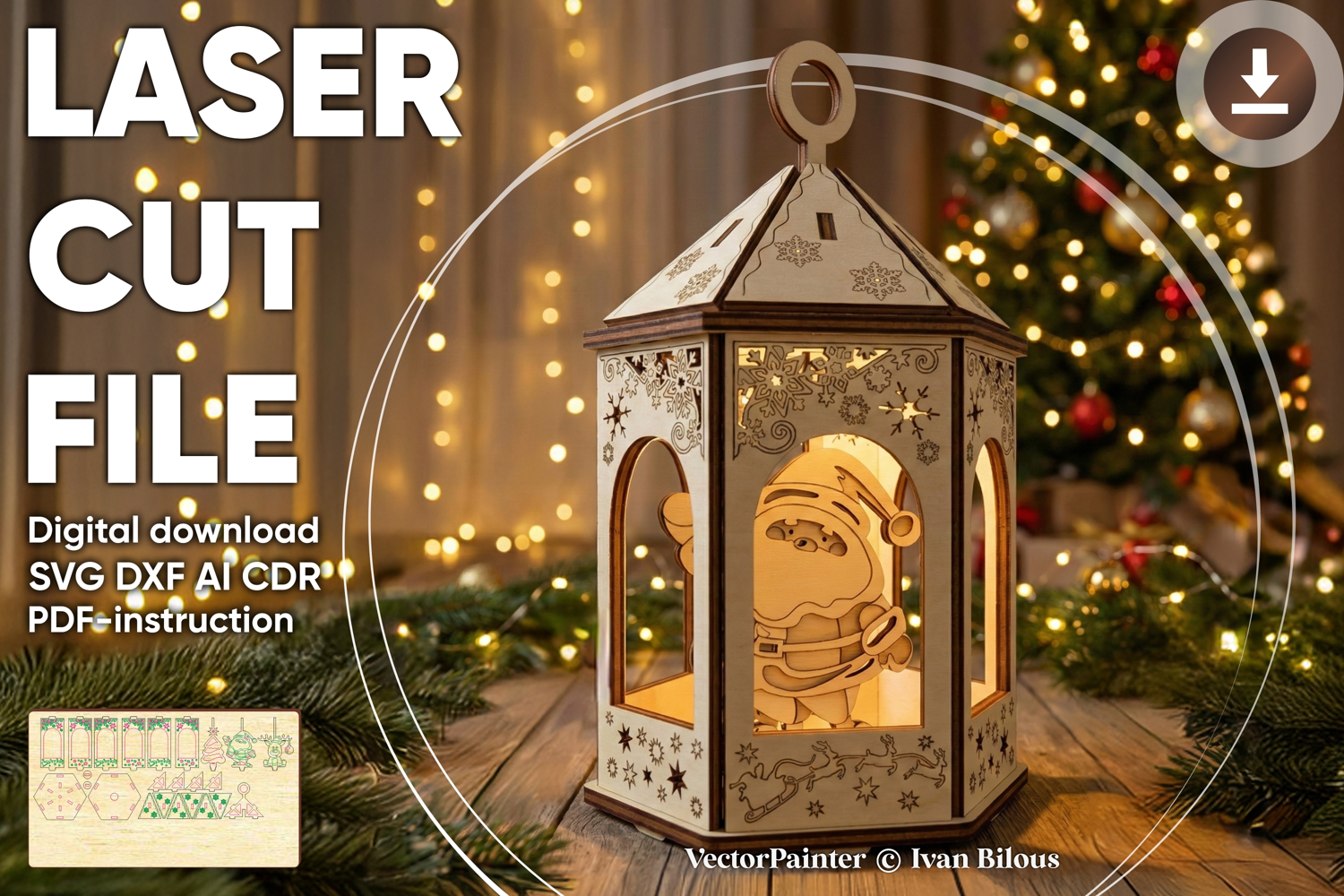

Laser cut design "Christmas alcove". Vector plan for CNC.
Material thickness: 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)
Sizes:
3 mm thickness: 84 x 74 x 142 mm (3.31 x 2.91 x 5.59'')
1/8''(3.175mm) thickness: 89 x 78 x 150 mm (3.50 x 3.08 x 5.92'')
4 mm thickness: 112 x 99 x 189 mm (4.41 x 3.88 x 7.45'')
6 mm thickness: 168 x 148 x 284 mm (6.61 x 5.83 x 11.18'')
1/4''(6.35mm) thickness: 178 x 157 x 301 mm (7.00 x 6.17 x 11.83'')
Work area:
3 mm thickness: 417 x 166 mm (16.42 x 6.54'')
1/8''(3.175mm) thickness: 441 x 176 mm (17.38 x 6.92'')
4 mm thickness: 556 x 221 mm (21.89 x 8.71'')
6 mm thickness: 834 x 332 mm (32.83 x 13.07'')
1/4''(6.35mm) thickness: 883 x 351 mm (34.75 x 13.83'')
In the file:
green color - draw (cut with little power and big speed)
pink color - cut
black color - cut
What you receive:
You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:
the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction
If you have any questions feel free to contact me:)
