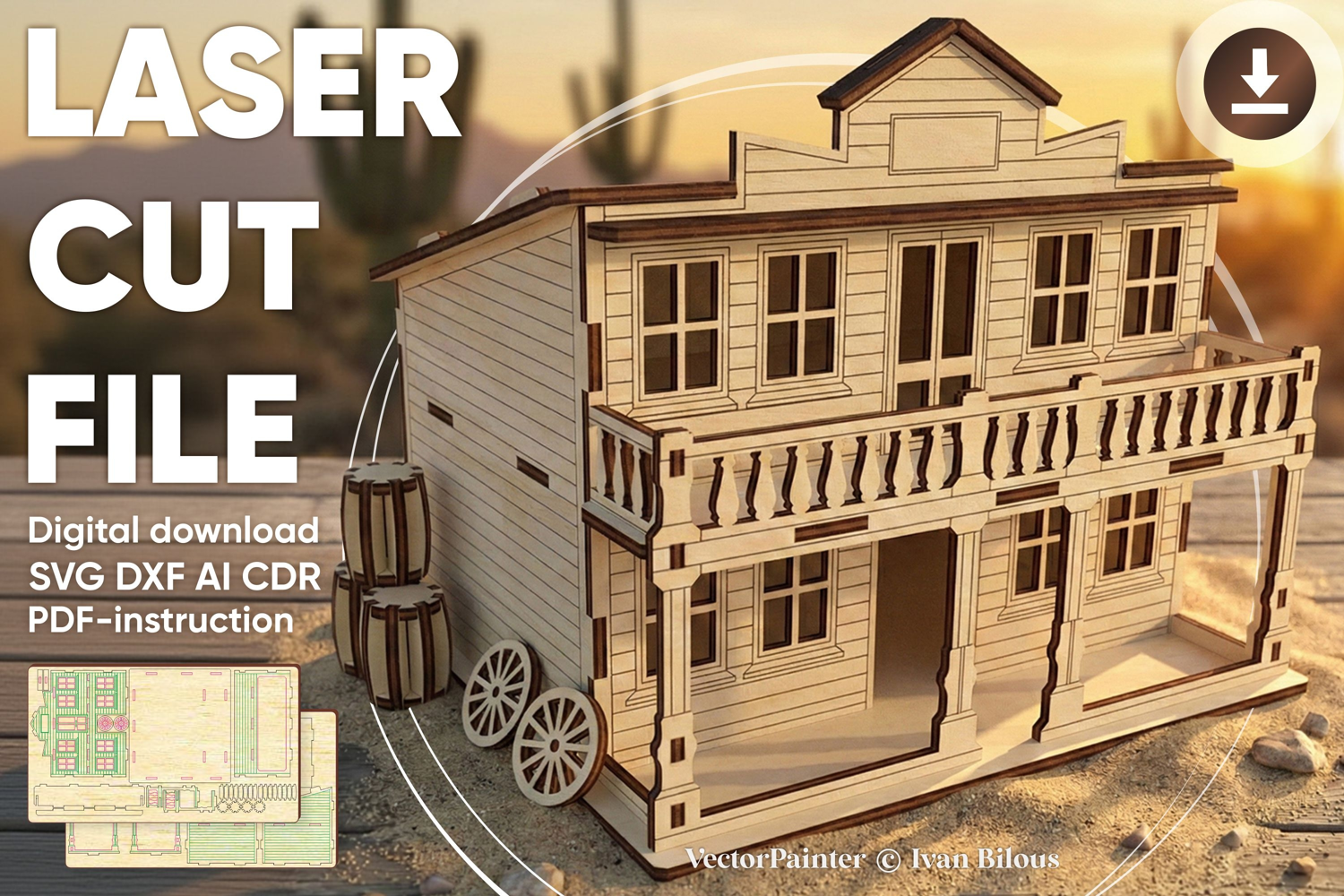

Laser cut design "Western House". Vector plan for CNC.
Material thickness: 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)
Sizes:
3 mm thickness: 182 x 162 x 158 mm (7,17 x 6,38 x 6,22'')
1/8''(3.175mm) thickness: 193 x 171 x 167 mm (7,58 x 6,75 x 6,58'')
4 mm thickness: 243 x 216 x 211 mm (9,55 x 8,50 x 8,29'')
6 mm thickness: 364 x 324 x 316 mm (14,33 x 12,76 x 12,44'')
1/4''(6.35mm) thickness: 385 x 343 x 334 mm (15,17 x 13,50 x 13,17'')
Work area:
3 mm thickness: 867 x 234 mm (34,13 x 9,21'')
1/8''(3.175mm) thickness: 918 x 248 mm (36,13 x 9,75'')
4 mm thickness: 1156 x 312 mm (45,51 x 12,28'')
6 mm thickness: 1734 x 468 mm (68,27 x 18,43'')
1/4''(6.35mm) thickness: 1835 x 495 mm (72,25 x 19,50'')
Biggest part:
3 mm thickness: 162 x 182 mm (6,38 x 7,17'')
1/8''(3.175mm) thickness: 171 x 193 mm (6,75 x 7,58'')
4 mm thickness: 216 x 243 mm (8,50 x 9,55'')
6 mm thickness: 324 x 364 mm (12,76 x 14,33'')
1/4''(6.35mm) thickness: 343 x 385 mm (13,50 x 15,17'')
In the file:
green color - draw (score - cut with low power and high speed)
pink color - cut (inner cut lines)
black color - cut (outer cut lines)
What you receive:
You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:
the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instructions
If you have any questions feel free to contact me:)
