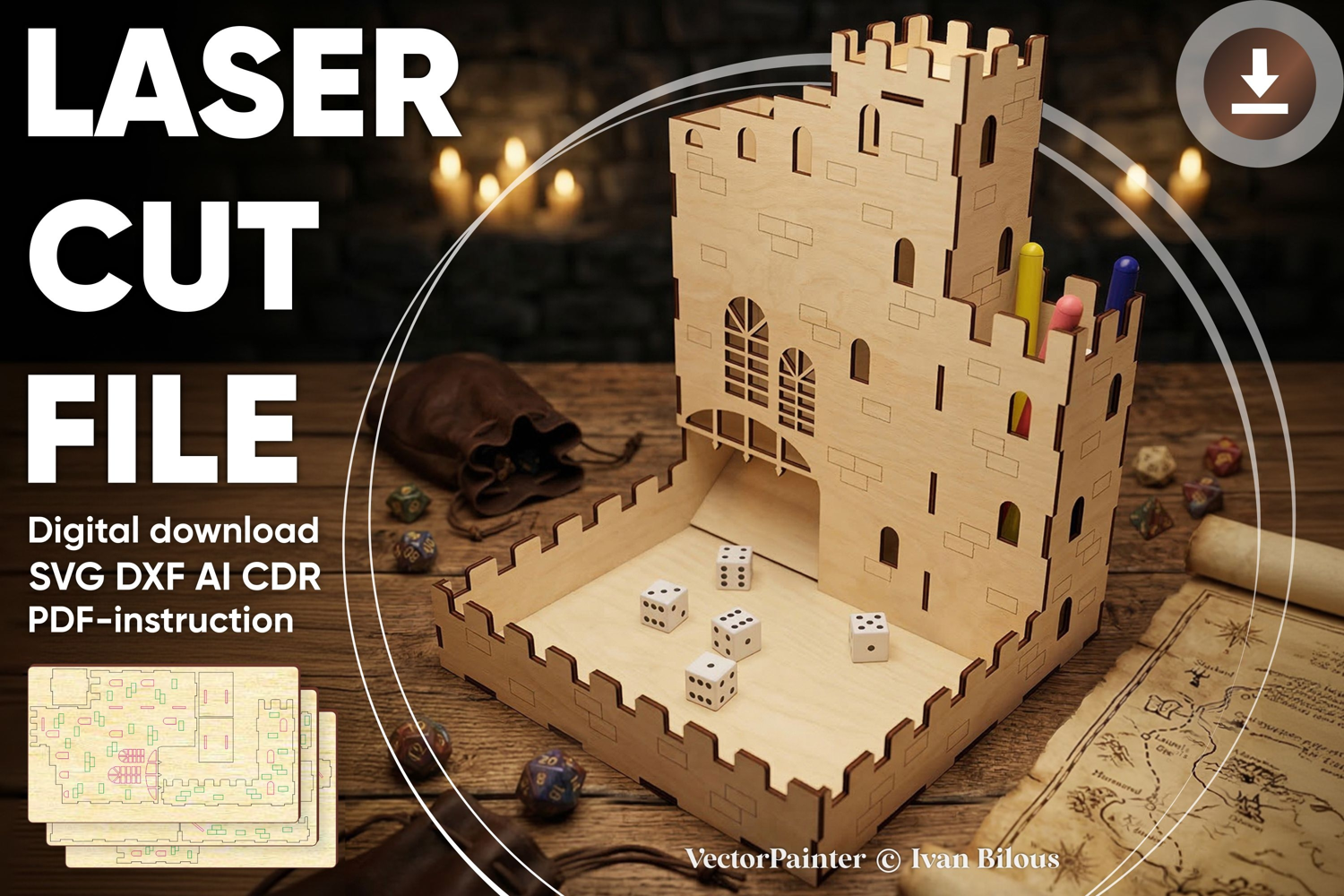

Castle Dice Tower - laser cutting file, vector plan

Laser cut design "Castle Dice Tower". Vector plan for CNC.

Material thickness: 3mm, 1/8''(3.175mm)

Sizes:

3 mm thickness: 210 x 210 x 114 mm (8,27 x 8,27 x 4,49'')

1/8''(3.175mm) thickness: 222 x 222 x 121 mm (8,75 x 8,75 x 4,75'')

Work area:

3 mm thickness: 851 x 435 mm (33,50 x 17,13'')

1/8''(3.175mm) thickness: 901 x 460 mm (35,46 x 18,13'')

Biggest part:

3 mm thickness: 263 x 210 mm (10,35 x 8,27'')

1/8''(3.175mm) thickness: 278 x 222 mm (10,96 x 8,75'')

In the file:

green color - score (draw, cut mode with low power and high speed)

pink color - cut

black color - cut

What you receive:

You will download 1 ZIP files for 3mm, 1/8''(3.175mm) containing the following:

the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction

If you have any questions feel free to contact me:)
