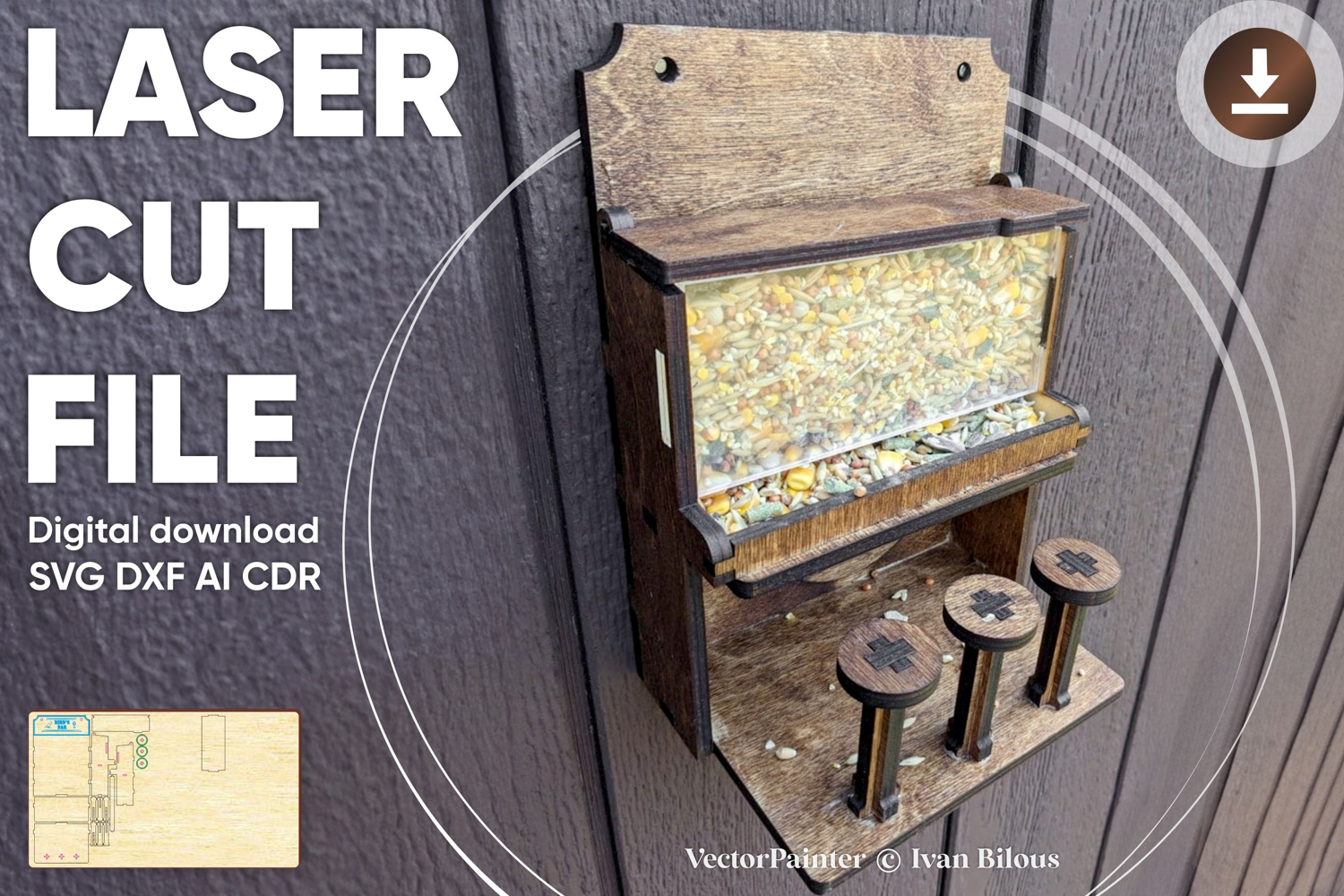

Bird's Bar feeder - laser cut file, Glowforge pattern

Laser cut design "Bird's Bar (feeder)". Vector plan for CNC.

Material thickness: 3mm, 4mm, 6mm, 1/4in, 1/8in

Sizes:

3 mm: 149 x 104 x 212 mm (5.87 x 4.09 x 8.35'')

4 mm: 149 x 104 x 212 mm (5.87 x 4.09 x 8.35'')

6 mm: 149 x 104 x 212 mm (5.87 x 4.09 x 8.35'')

1/8 in (3,175mm): 158 x 110 x 224 mm (6.21 x 4.33 x 8.84'')

1/4 in (6,35mm): 158 x 110 x 224 mm (6.21 x 4.33 x 8.84'')

Size of work area: 500 x 392 mm (19.69 x 15.43'')

In the drawing:

blue color - engrave

green color - draw (CUT with little power and big speed)

pink color - cut

black color - cut

What you receive:

You will download 1 ZIP files for 3mm and 4mm containing the following:

the CDR, DXF, AI and SVG file for laser cutting

If you have any questions feel free contact me:)
