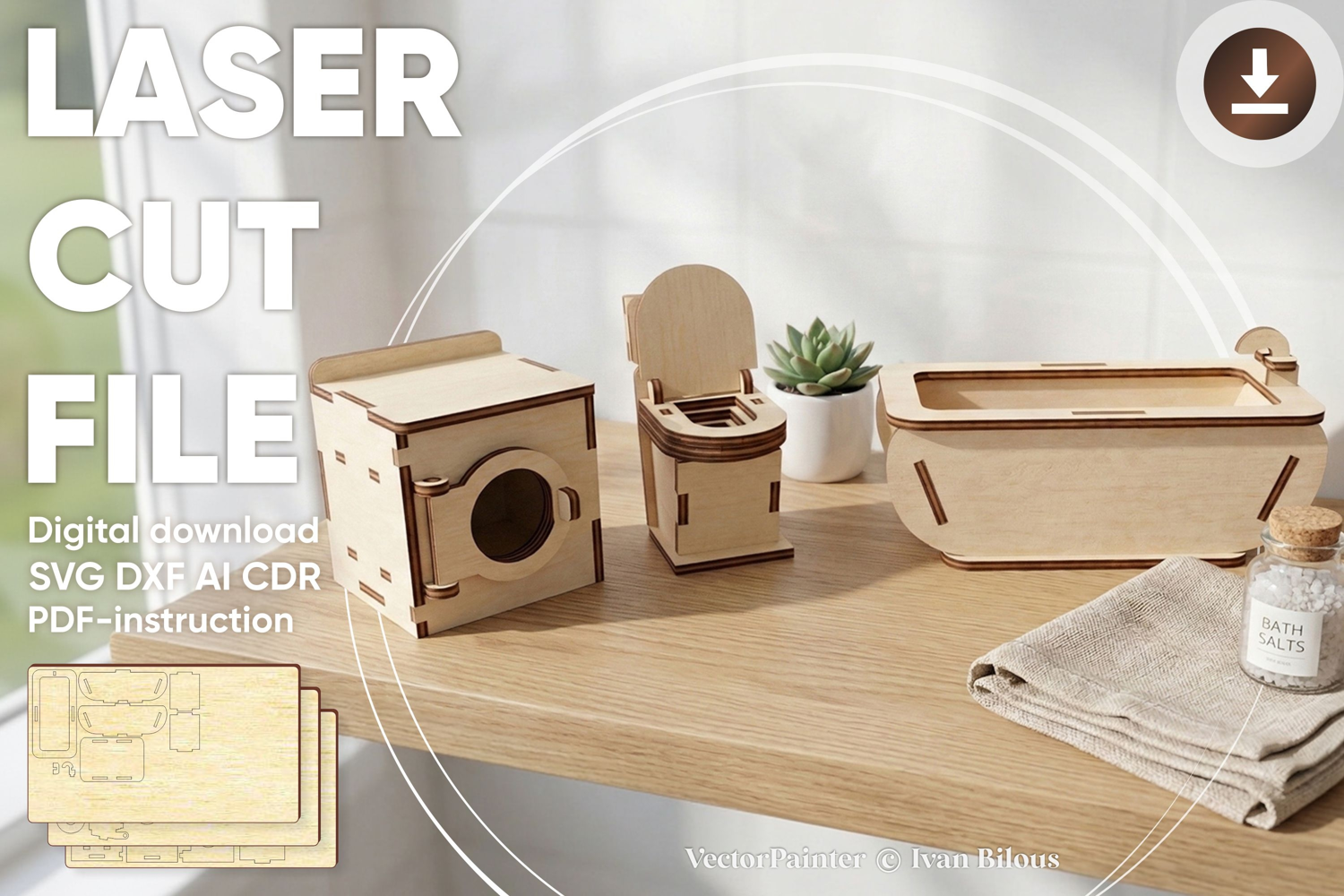

Laser cut design "Bath". Vector plan for CNC.
Material thickness: 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)
Size of the bath:
3 mm thickness: 60 x 120 x 58 mm (2,36 x 4,72 x 2,28'')
1/8''(3.175mm) thickness: 64 x 127 x 61 mm (2,50 x 5,00 x 2,42'')
4 mm thickness: 80 x 160 x 77 mm (3,15 x 6,30 x 3,04'')
6 mm thickness: 120 x 240 x 116 mm (4,72 x 9,45 x 4,57'')
1/4''(6.35mm) thickness: 127 x 254 x 123 mm (5,00 x 10,00 x 4,83'')
Work area of the bath:
3 mm thickness: 227 x 152 mm (8,94 x 5,98'')
1/8''(3.175mm) thickness: 240 x 161 mm (9,46 x 6,33'')
4 mm thickness: 303 x 203 mm (11,92 x 7,98'')
6 mm thickness: 454 x 304 mm (17,87 x 11,97'')
1/4''(6.35mm) thickness: 480 x 322 mm (18,92 x 12,67'')
Biggest part of the bath:
3 mm thickness: 120 x 60 mm (4,72 x 2,36'')
1/8''(3.175mm) thickness: 127 x 64 mm (5,00 x 2,50'')
4 mm thickness: 160 x 80 mm (6,30 x 3,15'')
6 mm thickness: 240 x 120 mm (9,45 x 4,72'')
1/4''(6.35mm) thickness: 254 x 127 mm (10,00 x 5,00'')
In the file:
black color - cut
What you receive:
You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:
the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction
If you have any questions feel free to contact me:)
