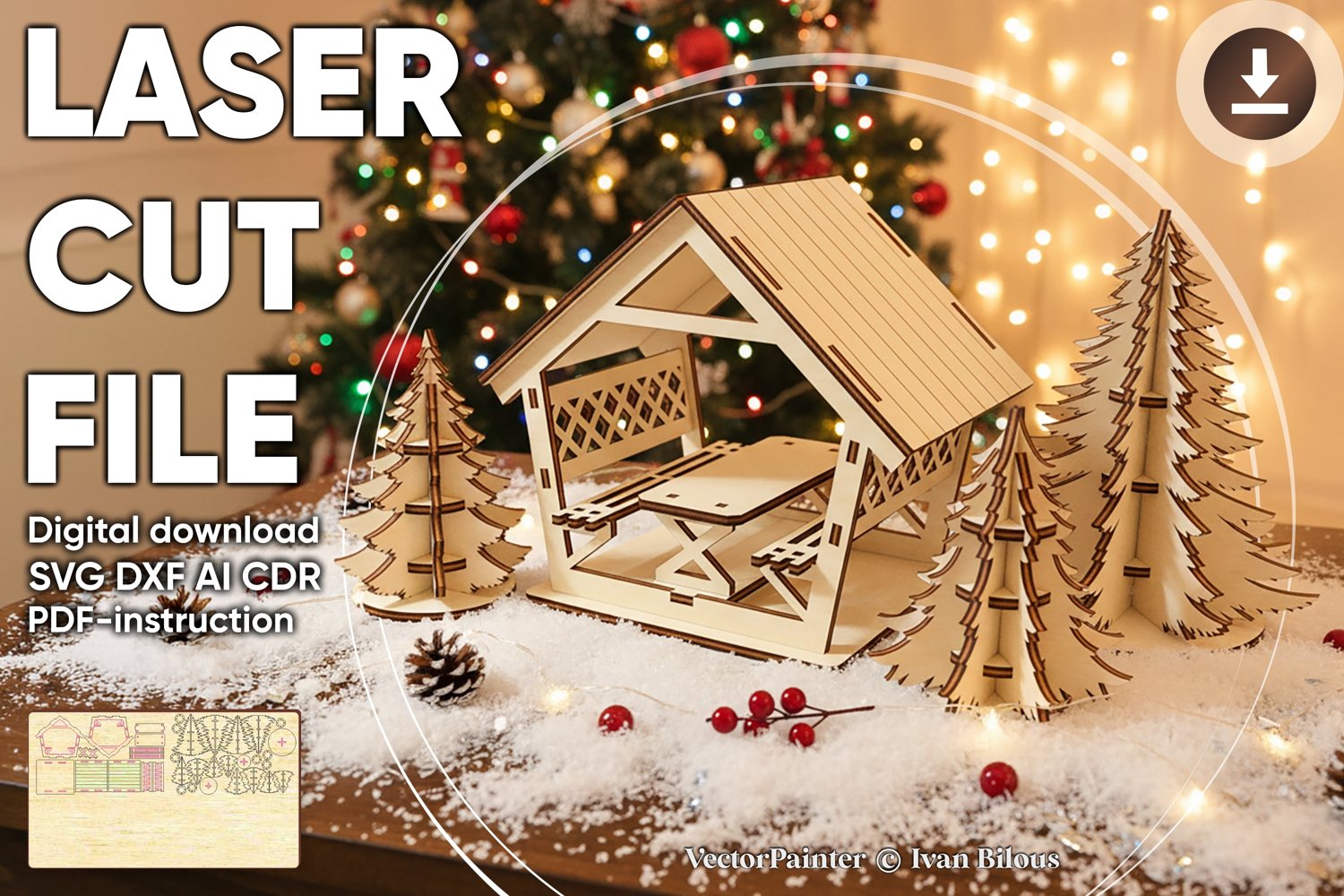

Alcove dollhouse & Christmas tree - laser cut file

Laser cut design "Alcove with Christmas trees". Vector plan for CNC.

Material thickness: 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)

Sizes:

3 mm thickness: 144 x 100 x 126 mm (5,67 x 3,94 x 4,96'')

1/8''(3.175mm) thickness: 152 x 106 x 133 mm (6,00 x 4,17 x 5,25'')

4 mm thickness: 192 x 133 x 168 mm (7,56 x 5,25 x 6,61'')

6 mm thickness: 288 x 200 x 252 mm (11,34 x 7,87 x 9,92'')

1/4''(6.35mm) thickness: 305 x 212 x 267 mm (12,00 x 8,33 x 10,50'')

Work area:

3 mm thickness: 757 x 234 mm (29,80 x 9,21'')

1/8''(3.175mm) thickness: 801 x 248 mm (31,54 x 9,75'')

4 mm thickness: 1009 x 312 mm (39,74 x 12,28'')

6 mm thickness: 1514 x 468 mm (59,61 x 18,43'')

1/4''(6.35mm) thickness: 1602 x 495 mm (63,08 x 19,50'')

Biggest part:

3 mm thickness: 141 x 123 mm (5,55 x 4,84'')

1/8''(3.175mm) thickness: 149 x 130 mm (5,88 x 5,13'')

4 mm thickness: 188 x 164 mm (7,40 x 6,46'')

6 mm thickness: 282 x 246 mm (11,10 x 9,69'')

1/4''(6.35mm) thickness: 298 x 260 mm (11,75 x 10,25'')

In the file:

green color - draw (cut with low power and high speed)

pink color - cut

black color - cut

What you receive:

You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:

the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction

If you have any questions feel free to contact me:)
