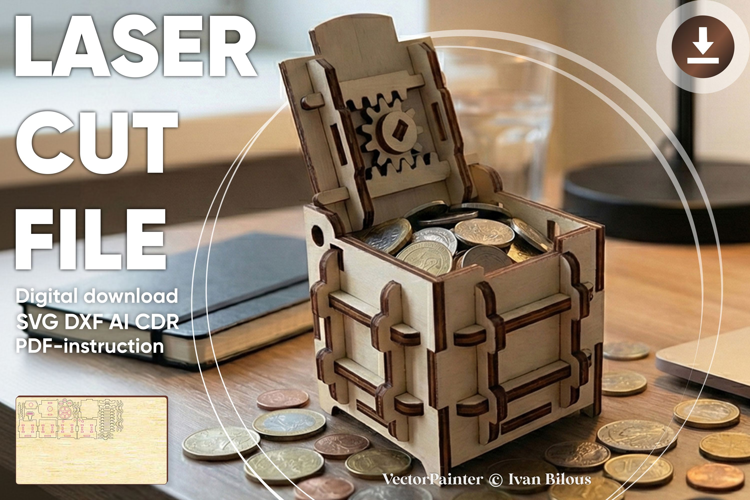

Secret safe box - laser cut file, Glowforge pattern

Laser cut design  "Safe Box". Vector plan for CNC.

Material thickness: 1/4in, 1/8in, 3mm, 4mm, 5mm, 6 mm plywood.

Sizes:

3 mm thickness: 50 x 50 x 62 mm (1.97 x 1.97 x 2.44'')

1/8''(3.175mm) thickness: 53 x 53 x 66 mm (2,08 x 2,08 x 2,58'')

4 mm thickness: 67 x 67 x 82 mm (2.63 x 2.63 x 3.26'')

5 mm thickness: 83 x 83 x 103 mm (3.28 x 3.28 x 4.07'')

6 mm thickness: 100 x 100 x 124 mm (3.94 x 3.94 x 4.88'')

1/4''(6.35mm) thickness: 106 x 106 x 131 mm (4,17 x 4,17 x 5,17'')

In the file:

pink color - cut

black color - cut

What you receive:

You will download 1 ZIP files for 1/4in, 1/8in, 3 mm, 4 mm, 5 mm and 6 mm containing the following:

the CDR, DXF, AI and SVG file for laser cutting and PDF-file with assembly instructions

If you have any questions feel free to contact me:)
