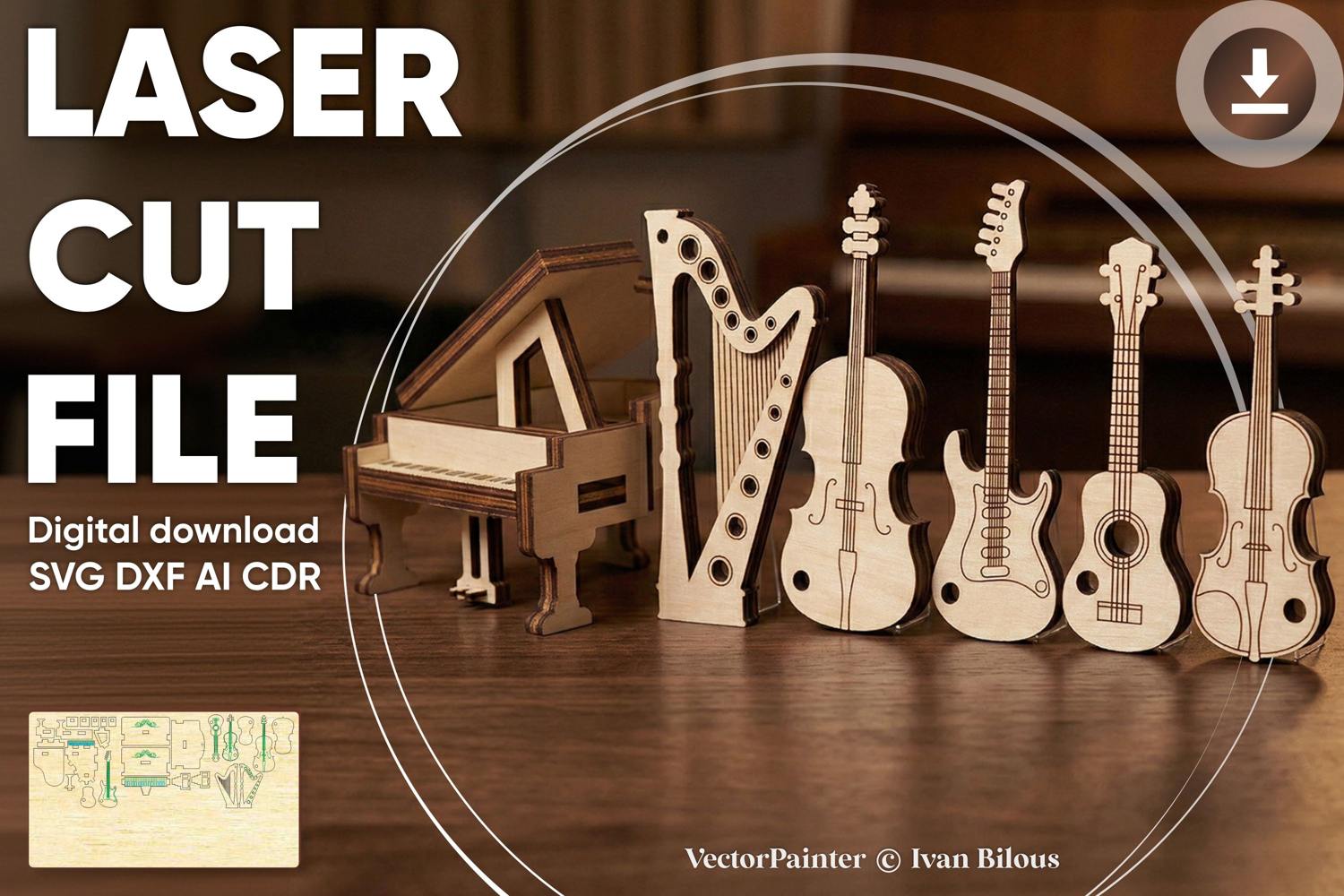

Laser cut design "Musical instrucments keychains". Vector plan for laser cutting machine
Material thickness: 3mm, 1/8''(3.175mm)
Sizes:
Fortepiano
3 mm thickness: 19 x 51 x 35 mm (0,75 x 2,01 x 1,38'')
1/8''(3.175mm) thickness: 20 x 54 x 37 mm (0,79 x 2,13 x 1,46'')
Harp
3 mm thickness: 47 x 26 x 6 mm (1,85 x 1,02 x 0,24'')
1/8''(3.175mm) thickness: 50 x 28 x 6 mm (1,96 x 1,08 x 0,25'')
Guitar
3 mm thickness: 60 x 20 x 6 mm (2,36 x 0,77 x 0,24'')
1/8''(3.175mm) thickness: 64 x 21 x 6 mm (2,50 x 0,81 x 0,25'')
Ukulele
3 mm thickness: 50 x 16 x 6 mm (1,97 x 0,63 x 0,24'')
1/8''(3.175mm) thickness: 53 x 17 x 6 mm (2,08 x 0,67 x 0,25'')
Grand piano
3 mm thickness: 34 x 46 x 38 mm (1,34 x 1,81 x 1,50'')
1/8''(3.175mm) thickness: 36 x 49 x 40 mm (1,42 x 1,92 x 1,58'')
Cello
3 mm thickness: 60 x 23 x 6 mm (2,36 x 0,91 x 0,24'')
1/8''(3.175mm) thickness: 64 x 24 x 6 mm (2,50 x 0,96 x 0,25'')
Work area:
3 mm thickness: 276 x 100 mm (10,87 x 3,94'')
1/8''(3.175mm) thickness: 292 x 106 mm (11,50 x 4,17'')
In the file:
green color - score / drawing
blue color - engrave
black color - cut
What you receive:
You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:
the CDR, DXF, AI and SVG file for laser cutting
If you have any questions feel free to contact me:)
