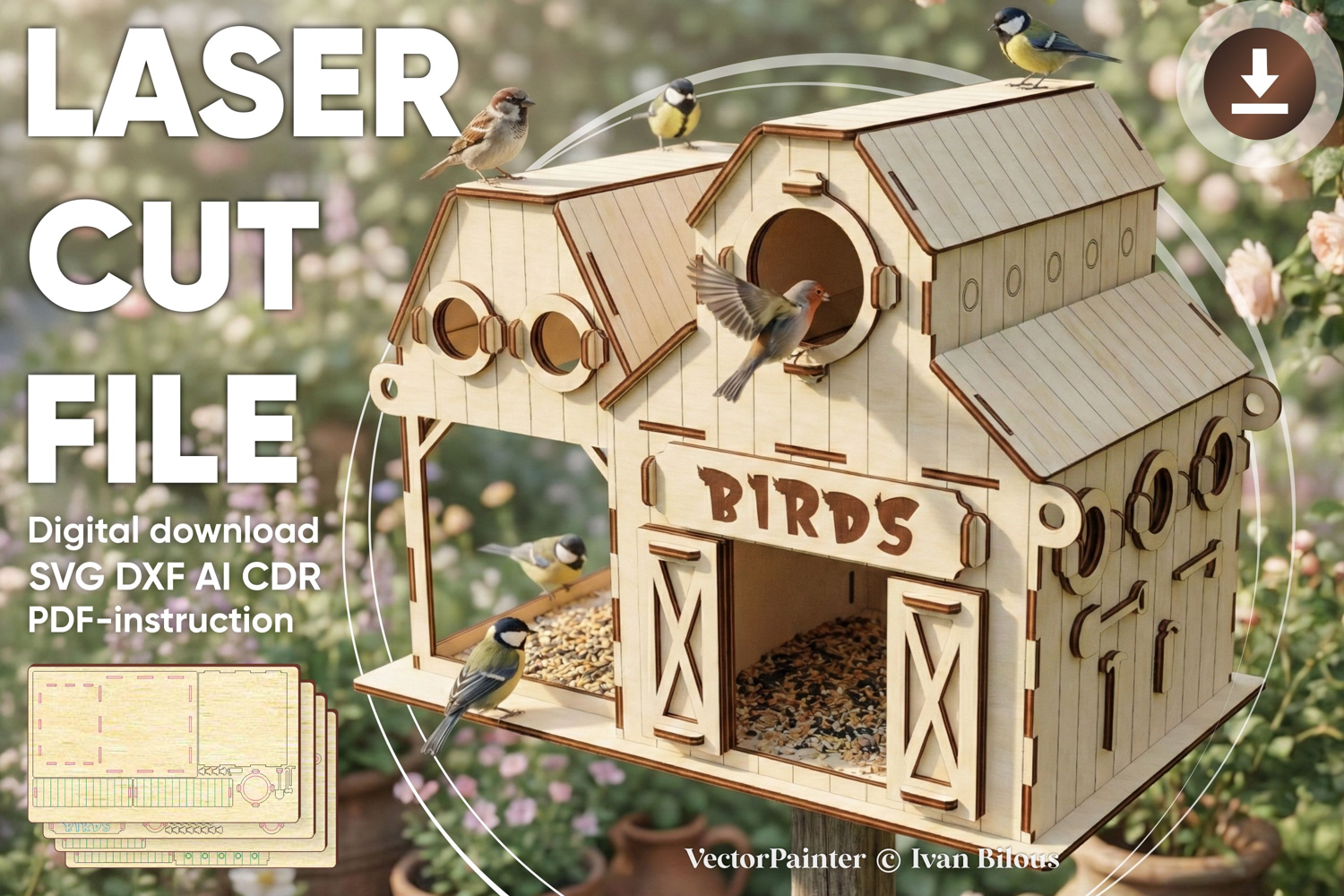

Barn Birdhouse - laser cut file, Glowforge pattern

Laser cut design "Barn Birdhouse". Vector plan for laser cutting machine

Material thickness (versions of the files): 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)

Sizes:

3 mm thickness: 268 x 173 x 206 mm (10,55 x 6,81 x 8,11'')

1/8''(3.175mm) thickness: 284 x 183 x 218 mm (11,17 x 7,21 x 8,58'')

4 mm thickness: 357 x 231 x 275 mm (14,07 x 9,08 x 10,81'')

6 mm thickness: 536 x 346 x 412 mm (21,10 x 13,62 x 16,22'')

1/4''(6.35mm) thickness: 567 x 366 x 436 mm (22,33 x 14,42 x 17,17'')

Work area:

3 mm thickness: 803 x 474 mm (31,61 x 18,66'')

1/8''(3.175mm) thickness: 850 x 502 mm (33,46 x 19,75'')

4 mm thickness: 1071 x 632 mm (42,15 x 24,88'')

6 mm thickness: 1606 x 948 mm (63,23 x 37,32'')

1/4''(6.35mm) thickness: 1700 x 1003 mm (66,92 x 39,50'')

Biggest part:

3 mm thickness: 268 x 173 mm (10,55 x 6,81'')

1/8''(3.175mm) thickness: 284 x 183 mm (11,17 x 7,21'')

4 mm thickness: 357 x 231 mm (14,07 x 9,08'')

6 mm thickness: 536 x 346 mm (21,10 x 13,62'')

1/4''(6.35mm) thickness: 567 x 366 mm (22,33 x 14,42'')

In the file:

green color - score/drawing (cut mode with low power and high speed)

blue color - engrave

pink color - cut

black color - cut

What you receive:

You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:

the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction

If you have any questions feel free to contact me:)
