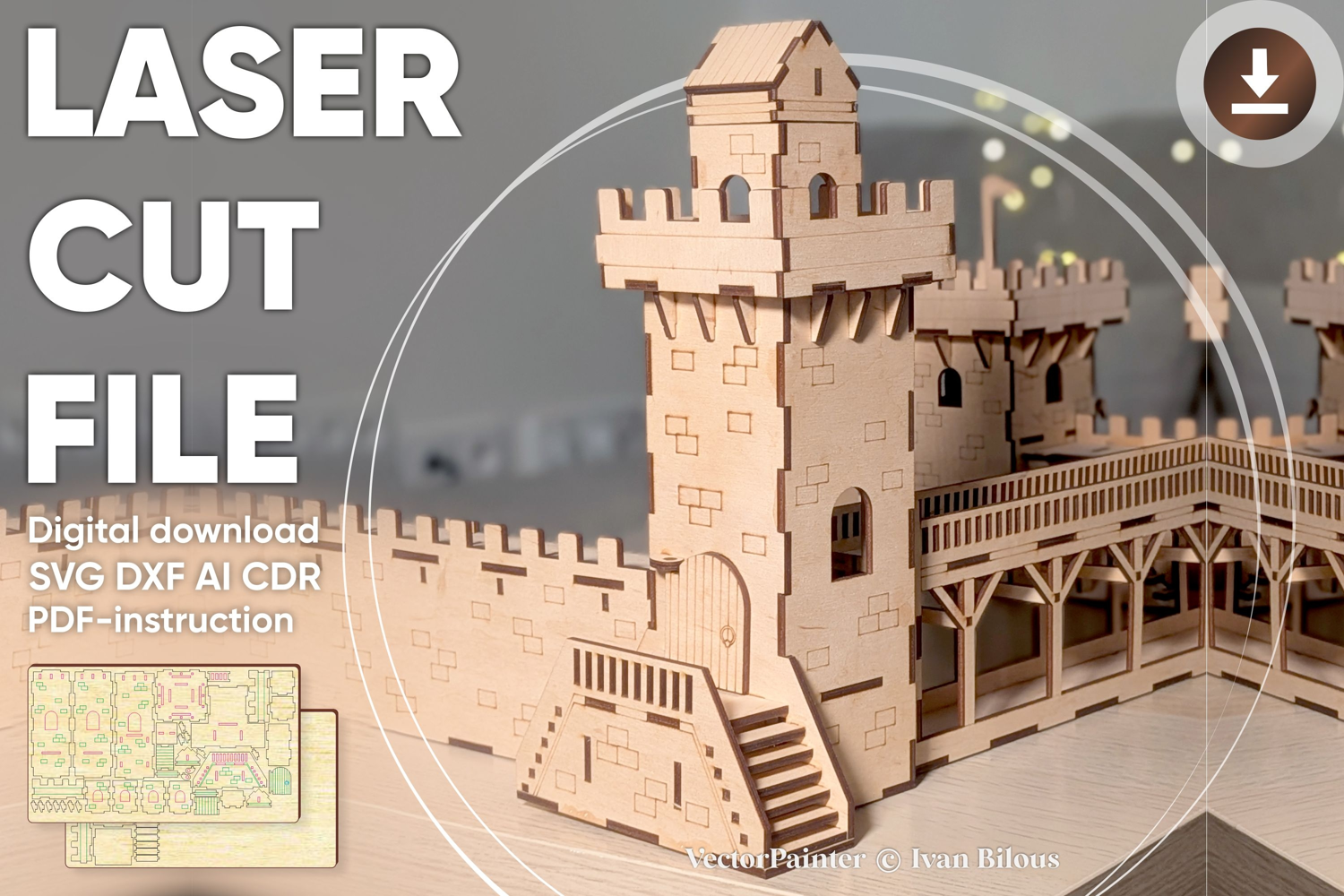

Big Tower of the Castle - laser cut file, Glowforge pattern

Laser cut design "Big tower of the Castle Set". Vector plan for CNC laser machines, Glowforge.

This is one of the blocks of the Castle. In the future, I plan to expand this design and create many additions for it (towers, walls, gates, bridges, etc.) that can be combined with each other.

You will be able to design and connect these blocks to create a wide variety of the castles.

Watch for new additions in my store in a separate category "Castle set" or just text in the search field "Castle" to see everything that is available at the moment

Also you can see full blocks of the Castle designs by this link

https://designbundles.net/vectorpainter/castle-set

Material thickness: 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)

Sizes:

3 mm thickness: 120 x 111 x 257 mm (4,72 x 4,37 x 10,12'')

1/8''(3.175mm) thickness: 127 x 117 x 272 mm (5,00 x 4,63 x 10,71'')

4 mm thickness: 160 x 148 x 343 mm (6,30 x 5,83 x 13,49'')

6 mm thickness: 240 x 222 x 514 mm (9,45 x 8,74 x 20,24'')

1/4''(6.35mm) thickness: 254 x 235 x 544 mm (10,00 x 9,25 x 21,42'')

Work area:

3 mm thickness: 578 x 236 mm (22,76 x 9,29'')

1/8''(3.175mm) thickness: 612 x 250 mm (24,08 x 9,83'')

4 mm thickness: 771 x 315 mm (30,34 x 12,39'')

6 mm thickness: 1156 x 472 mm (45,51 x 18,58'')

1/4''(6.35mm) thickness: 1223 x 500 mm (48,17 x 19,67'')

Biggest part:

3 mm thickness: 120 x 175 mm (4,72 x 6,89'')

1/8''(3.175mm) thickness: 127 x 185 mm (5,00 x 7,29'')

4 mm thickness: 160 x 233 mm (6,30 x 9,19'')

6 mm thickness: 240 x 350 mm (9,45 x 13,78'')

1/4''(6.35mm) thickness: 254 x 370 mm (10,00 x 14,58'')

In the file:

blue color - engrave

green color - draw (cut with little power and big speed)

pink color - cut

black color - cut

What you receive:

You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:

the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction

If you have any questions feel free to contact me:)
