Eternal calendar - SVG DXF laser cut file, Glowforge pattern

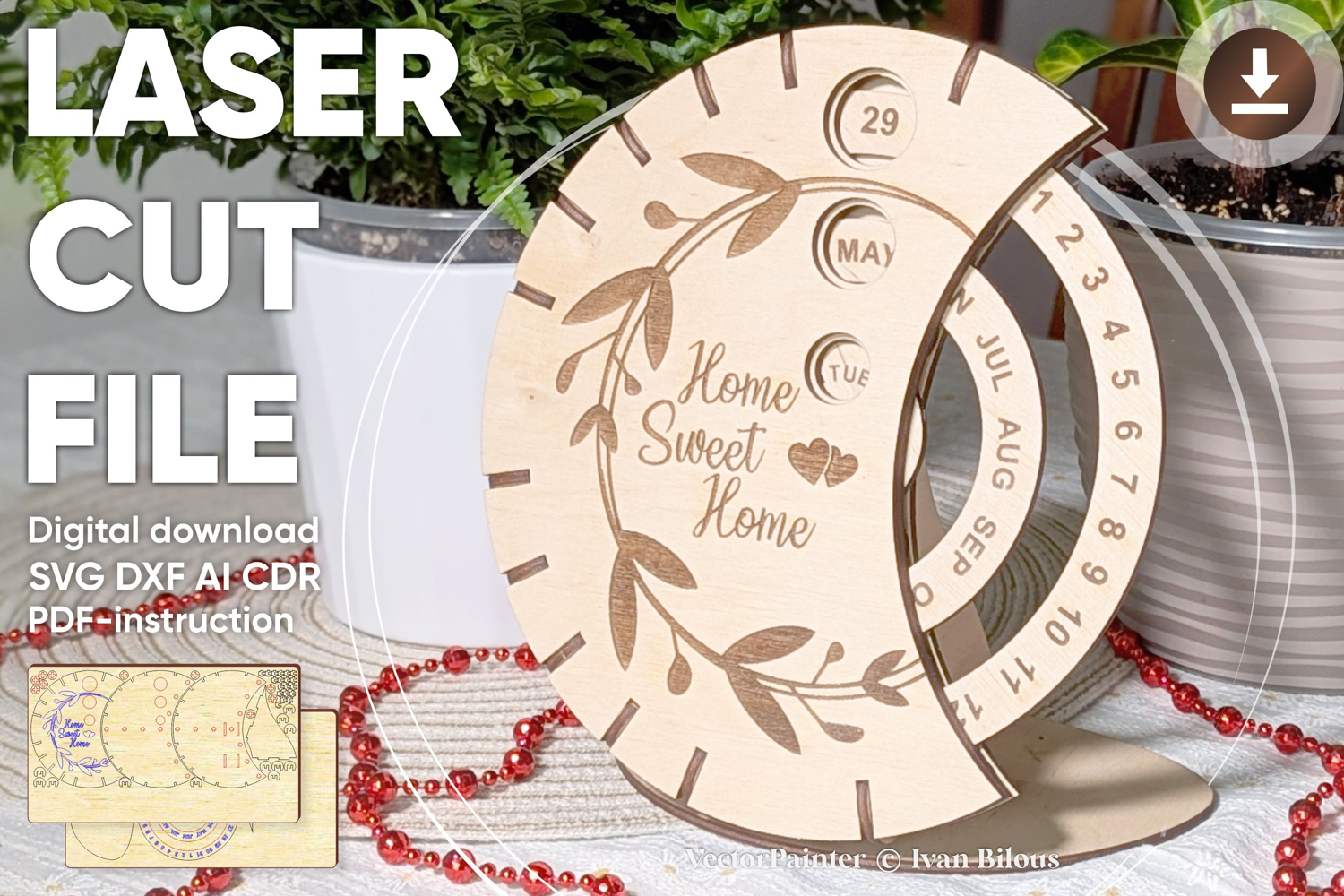

Laser cut design "Round calendar". Vector plan for laser cutting machine

Material thickness (versions of the files): 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)

Sizes:

3 mm thickness: 108 x 175 x 188 mm (4,25 x 6,89 x 7,40'')

1/8''(3.175mm) thickness: 114 x 185 x 199 mm (4,50 x 7,29 x 7,83'')

4 mm thickness: 144 x 233 x 251 mm (5,67 x 9,19 x 9,87'')

6 mm thickness: 216 x 350 x 376 mm (8,50 x 13,78 x 14,80'')

1/4''(6.35mm) thickness: 229 x 370 x 398 mm (9,00 x 14,58 x 15,67'')

Work area:

3 mm thickness: 429 x 357 mm (16,89 x 14,06'')

1/8''(3.175mm) thickness: 454 x 378 mm (17,88 x 14,88'')

4 mm thickness: 572 x 476 mm (22,52 x 18,74'')

6 mm thickness: 858 x 714 mm (33,78 x 28,11'')

1/4''(6.35mm) thickness: 908 x 756 mm (35,75 x 29,75'')

Biggest part:

3 mm thickness: 151 x 189 mm (5,94 x 7,44'')

1/8''(3.175mm) thickness: 160 x 200 mm (6,29 x 7,88'')

4 mm thickness: 201 x 252 mm (7,93 x 9,92'')

6 mm thickness: 302 x 378 mm (11,89 x 14,88'')

1/4''(6.35mm) thickness: 320 x 400 mm (12,58 x 15,75'')

In the file:

blue color - engrave

pink color - cut (inner cut lines)

black color - cut (outer cut lines)

What you receive:

You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:

the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction

If you have any questions feel free to contact me:)
