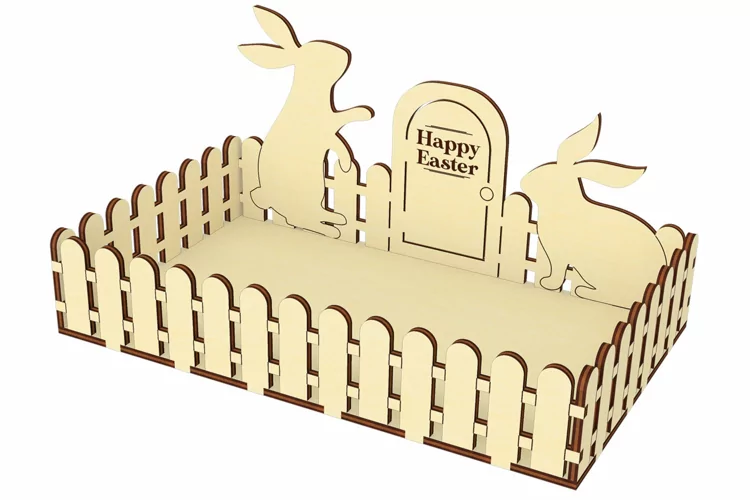

Laser cut design "Easter fence". Vector plan for laser cutting machine.
Material thickness: 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)
Sizes:
3 mm thickness: 200 x 120 x 96 mm (7,87 x 4,72 x 3,78'')
1/8''(3.175mm) thickness: 212 x 127 x 102 mm (8,33 x 5,00 x 4,00'')
4 mm thickness: 267 x 160 x 128 mm (10,50 x 6,30 x 5,04'')
6 mm thickness: 400 x 240 x 192 mm (15,75 x 9,45 x 7,56'')
1/4''(6.35mm) thickness: 423 x 254 x 203 mm (16,67 x 10,00 x 8,00'')
Work area:
3 mm thickness: 403 x 163 mm (15,87 x 6,42'')
1/8''(3.175mm) thickness: 427 x 173 mm (16,79 x 6,79'')
4 mm thickness: 537 x 217 mm (21,15 x 8,56'')
6 mm thickness: 806 x 326 mm (31,73 x 12,83'')
1/4''(6.35mm) thickness: 853 x 345 mm (33,58 x 13,58'')
Biggest part:
3 mm thickness: 200 x 120 mm (7,87 x 4,72'')
1/8''(3.175mm) thickness: 212 x 127 mm (8,33 x 5,00'')
4 mm thickness: 267 x 160 mm (10,50 x 6,30'')
6 mm thickness: 400 x 240 mm (15,75 x 9,45'')
1/4''(6.35mm) thickness: 423 x 254 mm (16,67 x 10,00'')
In the file:
blue color - engrave
green color - draw (cut with little power and big speed)
pink color - cut
black color - cut
What you receive:
You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:
the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction
If you have any questions feel free to contact me:)
