Medieval House of the Castle - SVG laser cut file, Glowforge

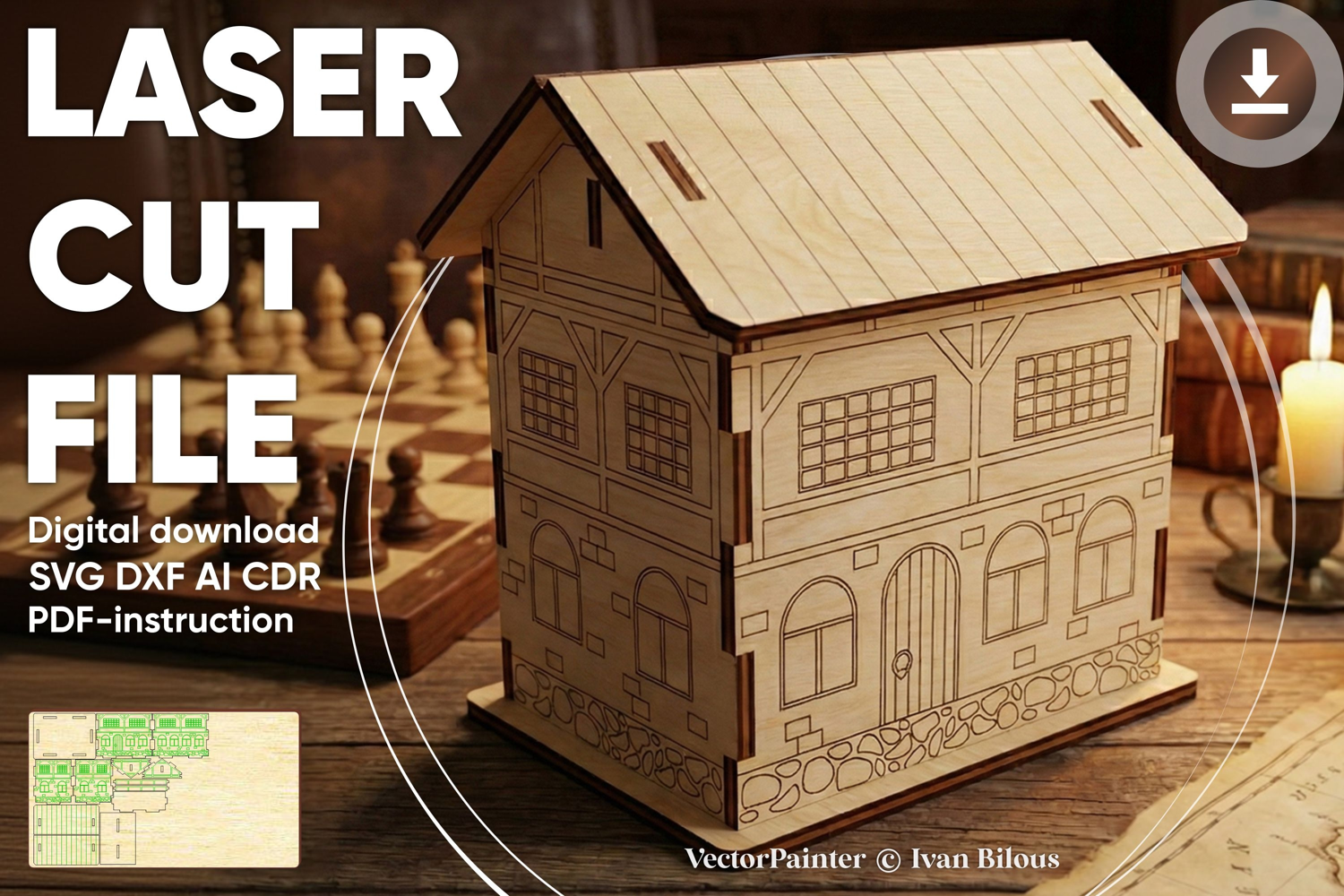

Laser cut design "Medieval House of the Castle Set". Vector plan for CNC laser machines, Glowforge.

This is one of the blocks of the Castle. In the future, I plan to expand this design and create many additions for it (towers, walls, gates, bridges, etc.) that can be combined with each other.

You will be able to design and connect these blocks to create a wide variety of the castles.

Watch for new additions in my store in a separate category "Castle set" or just text in the search field "Castle" to see everything that is available at the moment

Also you can see full blocks of the Castle designs by this link

https://designbundles.net/vectorpainter/castle-set

Material thickness: 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)

Sizes:

3 mm thickness: 76 x 100 x 100 mm (2,99 x 3,94 x 3,94'')

1/8''(3.175mm) thickness: 80 x 106 x 106 mm (3,17 x 4,17 x 4,17'')

4 mm thickness: 101 x 133 x 133 mm (3,99 x 5,25 x 5,25'')

6 mm thickness: 152 x 200 x 200 mm (5,98 x 7,87 x 7,87'')

1/4''(6.35mm) thickness: 161 x 212 x 212 mm (6,33 x 8,33 x 8,33'')

Work area:

3 mm thickness: 267 x 231 mm (10,51 x 9,09'')

1/8''(3.175mm) thickness: 283 x 244 mm (11,13 x 9,63'')

4 mm thickness: 356 x 308 mm (14,02 x 12,13'')

6 mm thickness: 534 x 462 mm (21,02 x 18,19'')

1/4''(6.35mm) thickness: 565 x 489 mm (22,25 x 19,25'')

Biggest part:

3 mm thickness: 95 x 70 mm (3,74 x 2,76'')

1/8''(3.175mm) thickness: 101 x 74 mm (3,96 x 2,92'')

4 mm thickness: 127 x 93 mm (4,99 x 3,67'')

6 mm thickness: 190 x 140 mm (7,48 x 5,51'')

1/4''(6.35mm) thickness: 201 x 148 mm (7,92 x 5,83'')

In the file:

green color - score / draw (cut with low power and high speed)

black color - cut

What you receive:

You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:

the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction

If you have any questions feel free to contact me:)
