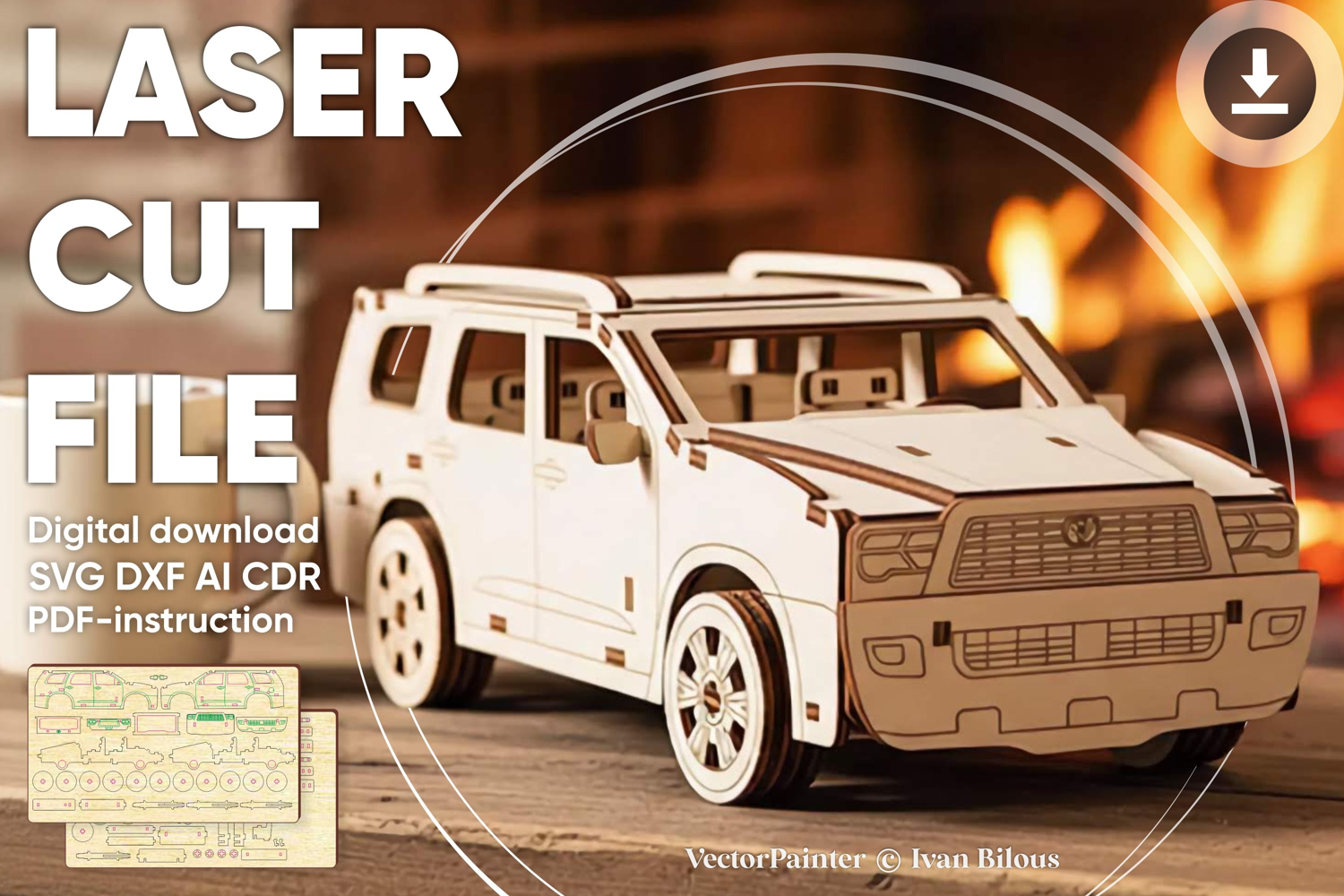

🎨 Laser cut design "Big Car" 🎨

DIGITAL FILE for laser cutting machine with ASSEMBLY INSTRUCTION

🤏Material thickness (versions of the files):

3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

📏 Finished SIZE of design

3 mm thickness: 222 x 107 x 84 mm (8.74 x 4.21 x 3.31'')

1/8''(3.175mm) thickness: 235 x 113 x 89 mm (9.25 x 4.46 x 3.50'')

4 mm thickness: 296 x 143 x 112 mm (11.65 x 5.62 x 4.41'')

6 mm thickness: 444 x 214 x 168 mm (17.48 x 8.43 x 6.61'')

1/4''(6.35mm) thickness: 470 x 226 x 178 mm (18.50 x 8.92 x 7.00'')

📐WORK AREA - total area of wood required for cutting

3 mm thickness: 836 x 242 mm (32.91 x 9.53'')

1/8''(3.175mm) thickness: 885 x 256 mm (34.83 x 10.08'')

4 mm thickness: 1115 x 323 mm (43.88 x 12.70'')

6 mm thickness: 1672 x 484 mm (65.83 x 19.06'')

1/4''(6.35mm) thickness: 1769 x 512 mm (69.67 x 20.17'')

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

🔧SETTINGS and MODES

green color - draw (cut with little power and big speed)

pink color - cut

black color - cut

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

🛒WHAT YOU RECEIVE

🟢 ready made laser cutting files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)

material thickness

🟢 each file is saved in SVG, DXF, CDR, AI formats

🟢 detailed PDF-instructions with 3D pictures

🟢 free support consultations and small adjustments

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

📧Feel free to contact me if you have any questions

😊 I always happy to help you
