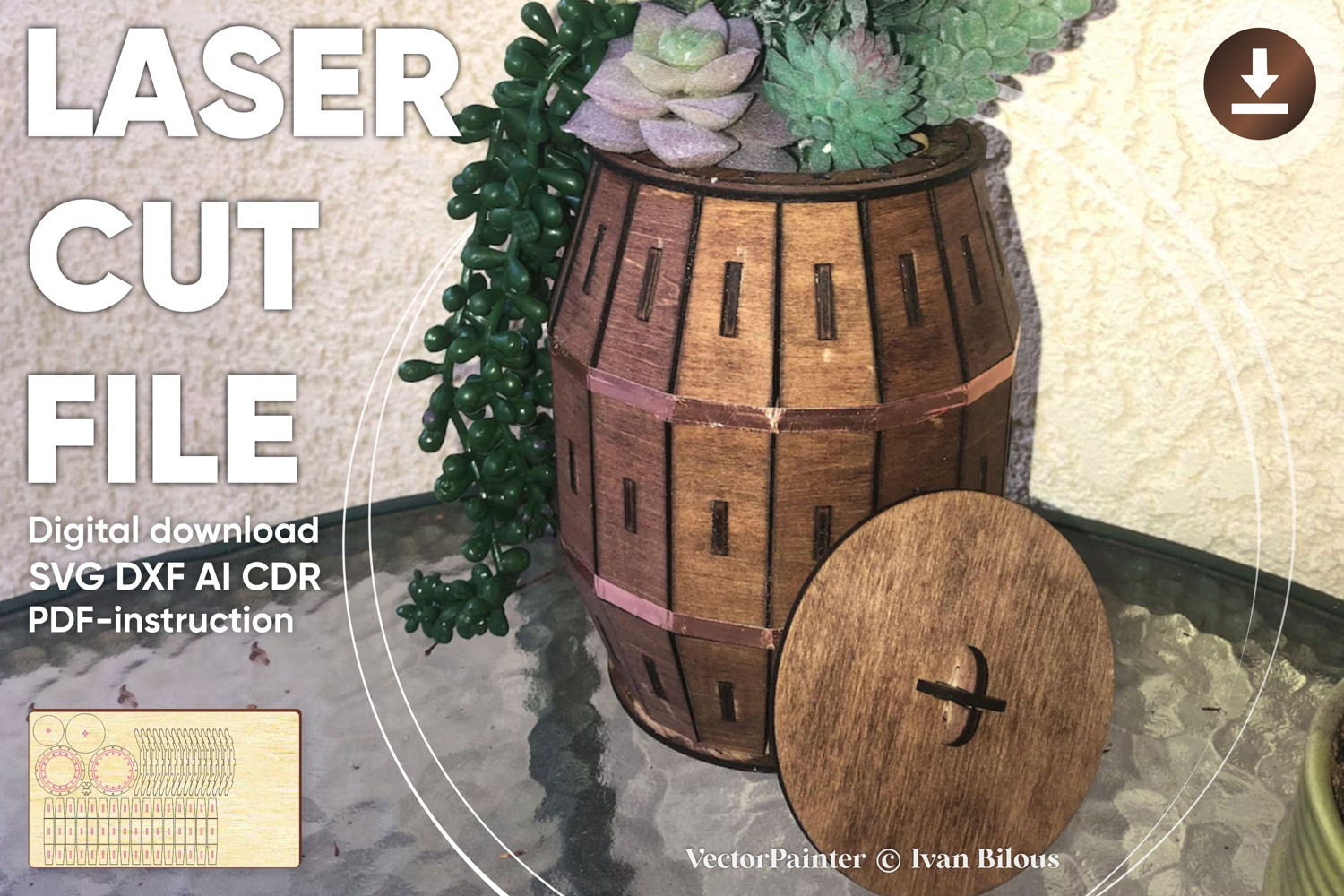

Barrel - laser cut file, cask SVG DXF laser machine plans

🎨 Laser cut design "Barrel" 🎨

DIGITAL FILE for laser cutting machine

🤏Material thickness (versions of the files):

3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

📏 Finished SIZE of design

3 mm thickness: 121 x 121 x 167 mm (4,76 x 4,76 x 6,57'')

1/8''(3.175mm) thickness: 128 x 128 x 177 mm (5,04 x 5,04 x 6,96'')

4 mm thickness: 161 x 161 x 223 mm (6,35 x 6,35 x 8,77'')

6 mm thickness: 242 x 242 x 334 mm (9,53 x 9,53 x 13,15'')

1/4''(6.35mm) thickness: 256 x 256 x 353 mm (10,08 x 10,08 x 13,92''

📐WORK AREA - total area of wood required for cutting

3 mm thickness: 474 x 354 mm (18,66 x 13,94'')

1/8''(3.175mm) thickness: 502 x 375 mm (19,75 x 14,75'')

4 mm thickness: 632 x 472 mm (24,88 x 18,58'')

6 mm thickness: 948 x 708 mm (37,32 x 27,87'')

1/4''(6.35mm) thickness: 1003 x 749 mm (39,50 x 29,50'')

🟧 LARGEST PART

3 mm thickness: 24 x 156 mm (0,94 x 6,14'')

1/8''(3.175mm) thickness: 25 x 165 mm (1,00 x 6,50'')

4 mm thickness: 32 x 208 mm (1,26 x 8,19'')

6 mm thickness: 48 x 312 mm (1,89 x 12,28'')

1/4''(6.35mm) thickness: 51 x 330 mm (2,00 x 13,00'')

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

🔧SETTINGS and MODES

pink color - cut

black color - cut

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

🛒WHAT YOU RECEIVE

🟢 ready made laser cutting files for 3mm, 1/8''(3.175mm), 4mm, 6 mm, 1/4'' (6.35 mm) material thickness

🟢 each file is saved in SVG, DXF, CDR, AI formats

🟢 free support consultations and small adjustments

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

📧Feel free to contact me if you have any questions

😊 I always happy to help you
