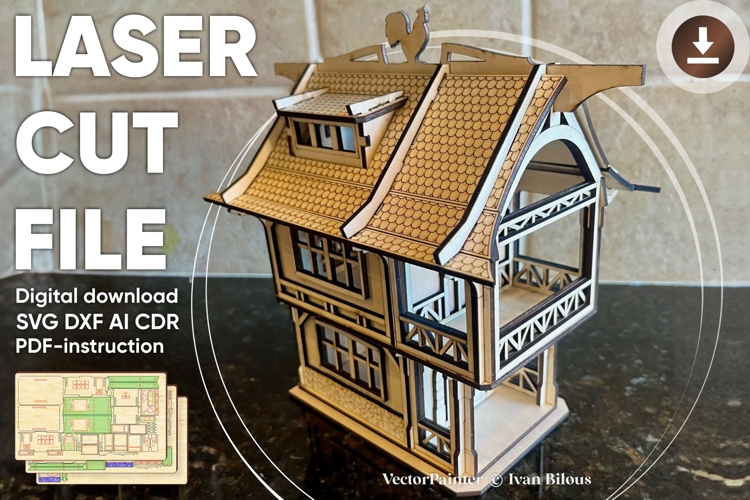

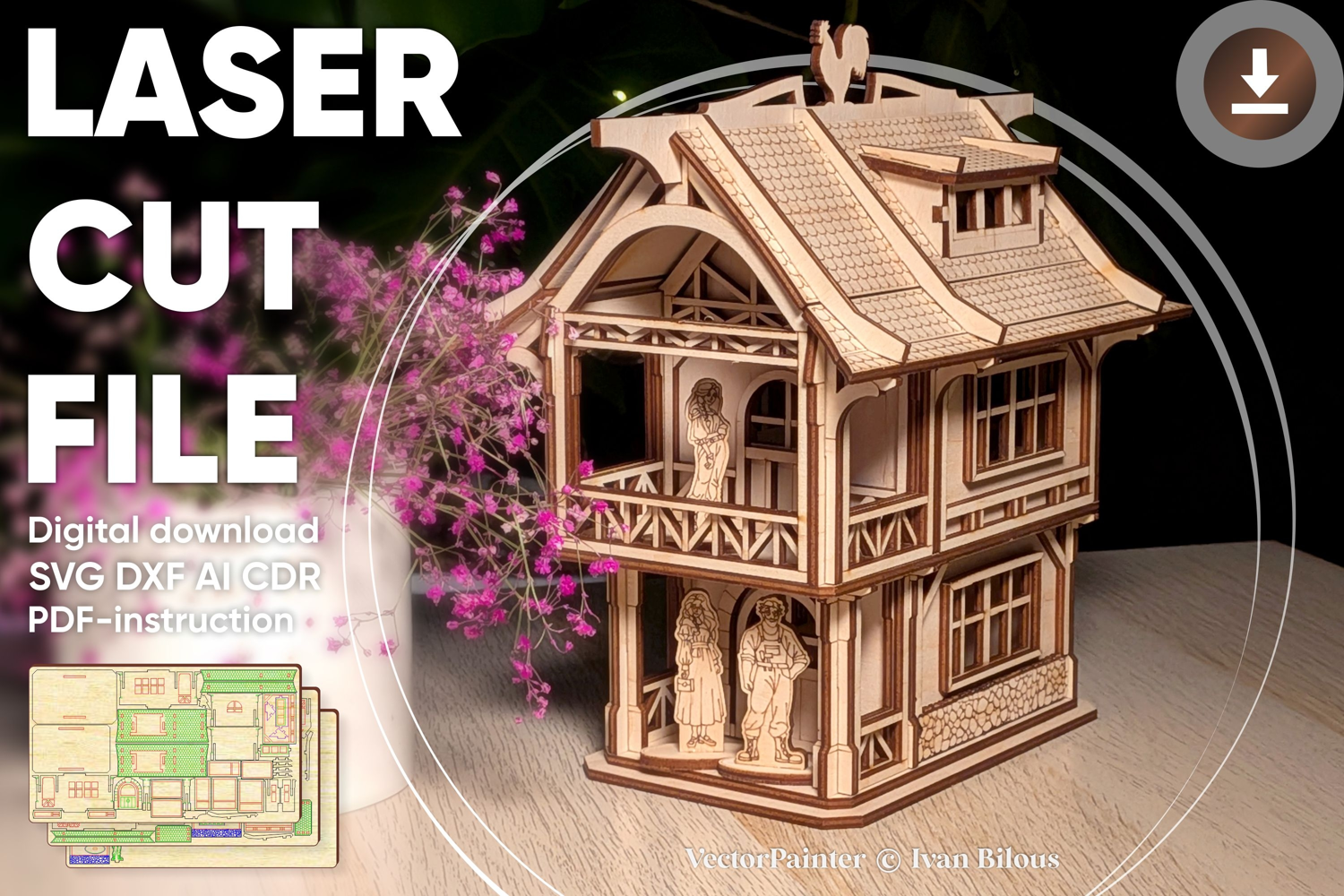

Build a piece of history with this Medieval Town House Laser Cut File – a highly detailed SVG template perfect for laser cutting machines and designed for crafting a miniature wooden building with classic medieval charm. Ideal for DIY projects, dioramas, fantasy displays, or dollhouse collections, this plywood-ready file includes everything you need for clean cuts and easy assembly. Add a touch of old-world architecture to your next creative build!
🎨 Laser cut design Medieval Townhouse 🎨
DIGITAL FILE for laser cutting machine
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪
🤏Material thickness (versions of the files): 3 mm, 1/8'' (3.175 mm), 4 mm, 5 mm, 6 mm, 1/4'' (6.35 mm)
Level of assembly difficulty: ⚫⚫⚫⚫⚪
⚠️ Contains small parts
⚠️ Some parts are glued
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪
📏 Finished SIZE
3 mm thickness: 198 x 125 x 192 mm (7,80 x 4,92 x 7,56'')
1/8''(3.175mm) thickness: 210 x 132 x 203 mm (8,25 x 5,21 x 8,00'')
4 mm thickness: 264 x 167 x 256 mm (10,39 x 6,56 x 10,08'')
5 mm thickness: 330 x 208 x 320 mm (12,99 x 8,20 x 12,60'')
6 mm thickness: 396 x 250 x 384 mm (15,59 x 9,84 x 15,12'')
1/4''(6.35mm) thickness: 419 x 265 x 406 mm (16,50 x 10,42 x 16,00'')
📐WORK AREA - total area of wood required for cutting
3 mm thickness: 555 x 480 mm (21,85 x 18,90'')
1/8''(3.175mm) thickness: 587 x 508 mm (23,13 x 20,00'')
4 mm thickness: 740 x 640 mm (29,13 x 25,20'')
5 mm thickness: 979 x 847 mm (38,54 x 33,33'')
6 mm thickness: 1110 x 960 mm (43,70 x 37,80'')
1/4''(6.35mm) thickness: 1175 x 1016 mm (46,25 x 40,00'')
🟧 LARGEST PART
3 mm thickness: 198 x 36 mm (7,80 x 1,42'')
1/8''(3.175mm) thickness: 210 x 38 mm (8,25 x 1,50'')
4 mm thickness: 264 x 48 mm (10,39 x 1,89'')
5 mm thickness: 349 x 64 mm (13,75 x 2,50'')
6 mm thickness: 396 x 72 mm (15,59 x 2,83'')
1/4''(6.35mm) thickness: 419 x 76 mm (16,50 x 3,00'')
⚠️ If you are using wood whose thickness is not included in the design, you can easily scale the file.
1) Import a file that is thicker than the thickness of your wood.
2) Multiply the width and length of the file by your actual thickness and divide by the thickness of the wood in the file.
For example, your wood is 4.5 mm thick.
Import the file for 5 mm. Multiply the width and length of the imported file by 4.5 and divide by 5.
This will give you a 4.5 mm file.
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪
🛒WHAT YOU RECEIVE
🟢 ready made laser cutting files for 3mm, 1/8''(3.175mm), 4mm, 5 mm, 6 mm, 1/4'' (6.35 mm) material thickness
🟢 detailed PDF-instructions with 3D pictures
🟢 each file is saved in SVG, DXF, CDR, AI formats
🟢 free support consultations and small adjustments
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪
📧Feel free to contact me if you have any questions
😊 I always happy to help you
