BBQ Grill Miniature Laser Cut File - 3D Plywood Model

$4.00 USD
Premium License
Add to Cart - $4.00 USD
2

Share this product

More information on this Design

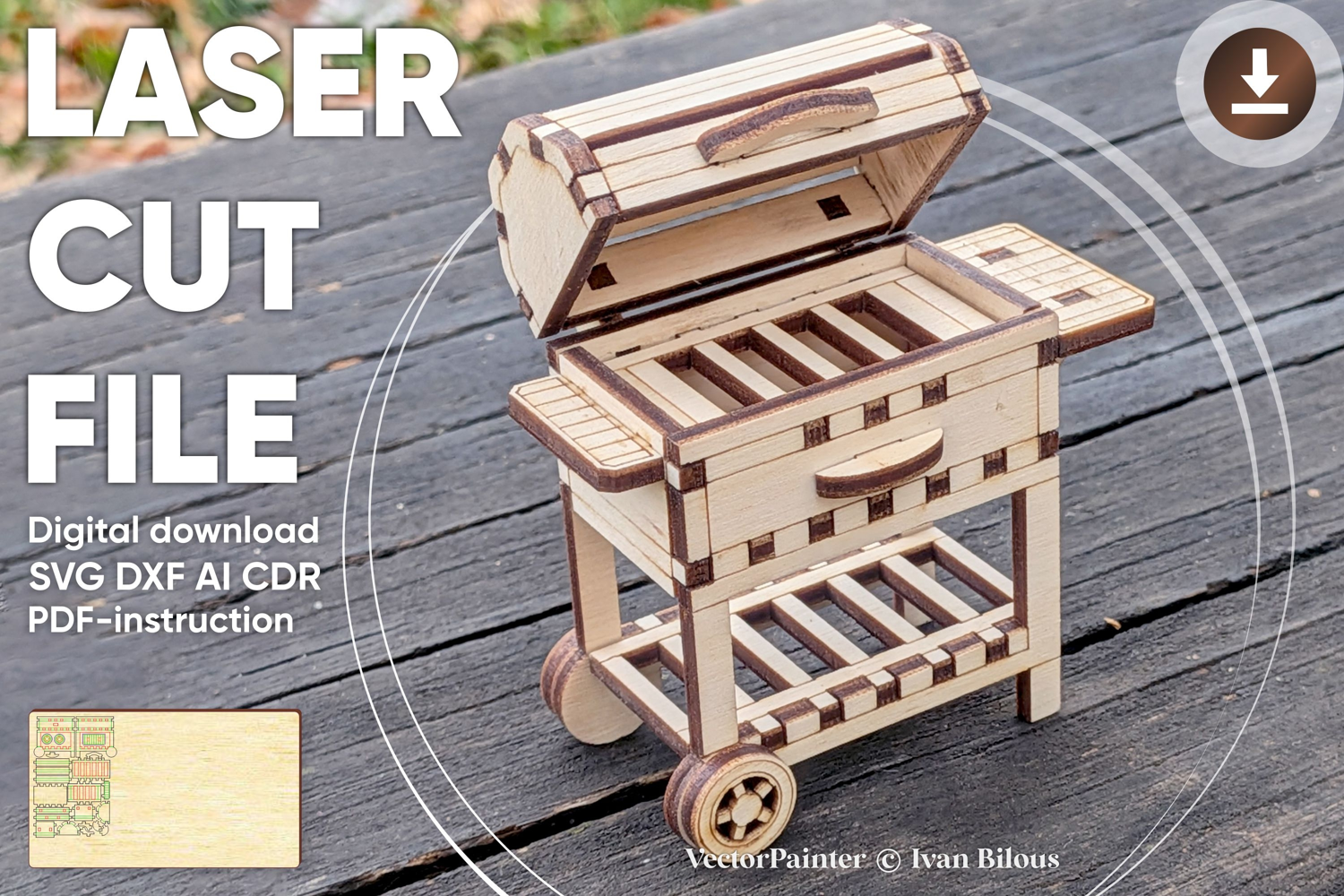

Laser cut file – Miniature Grill BBQ model for plywood crafting. Inspired by classic outdoor cookouts, this tiny grill brings fun and charm to any miniature or dollhouse scene. Designed for laser cutting machines, this digital plan includes layered parts and realistic details like a lid, grate, and handles. A perfect project for DIY lovers and collectors, it also makes a great gift or display piece.


🎨 Laser cut design Grill Miniature 🎨

DIGITAL FILE for laser cutting machine


▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪


🤏Material thickness (versions of the files): 3 mm, 1/8'' (3.175 mm), 4 mm, 5 mm, 6 mm, 1/4'' (6.35 mm)

The photos show the 3 mm version.


Level of assembly difficulty: ⚫⚫⚪⚪⚪

⚠️ Contains small parts

⚠️ Some parts are glued


▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪


📏 Finished SIZE

3 mm thickness: 73 x 44 x 87 mm (2,87 x 1,73 x 3,43'')

1/8''(3.175mm) thickness: 77 x 47 x 92 mm (3,04 x 1,83 x 3,63'')

4 mm thickness: 97 x 59 x 116 mm (3,83 x 2,31 x 4,57'')

5 mm thickness: 122 x 73 x 145 mm (4,79 x 2,89 x 5,71'')

6 mm thickness: 146 x 88 x 174 mm (5,75 x 3,46 x 6,85'')

1/4''(6.35mm) thickness: 155 x 93 x 184 mm (6,08 x 3,67 x 7,25'')


📐CUT FILE LAYOUT DIMENSIONS - total area of wood required for cutting

3 mm thickness: 110 x 161 mm (4,33 x 6,34'')

1/8''(3.175mm) thickness: 116 x 170 mm (4,58 x 6,71'')

4 mm thickness: 147 x 215 mm (5,77 x 8,45'')

5 mm thickness: 194 x 284 mm (7,64 x 11,18'')

6 mm thickness: 220 x 322 mm (8,66 x 12,68'')

1/4''(6.35mm) thickness: 233 x 341 mm (9,17 x 13,42'')


🟧 LARGEST PART

3 mm thickness: 54 x 54 mm (2,13 x 2,13'')

1/8''(3.175mm) thickness: 57 x 57 mm (2,25 x 2,25'')

4 mm thickness: 72 x 72 mm (2,83 x 2,83'')

5 mm thickness: 95 x 95 mm (3,75 x 3,75'')

6 mm thickness: 108 x 108 mm (4,25 x 4,25'')

1/4''(6.35mm) thickness: 114 x 114 mm (4,50 x 4,50'')


⚠️ If you are using wood whose thickness is not included in the design, you can easily scale the file.

1) Import a file that is thicker than the thickness of your wood.

2) Multiply the width and length of the file by your actual thickness and divide by the thickness of the wood in the file.


For example, your wood is 4.5 mm thick.

Import the file for 5 mm. Multiply the width and length of the imported file by 4.5 and divide by 5.

This will give you a 4.5 mm file.


▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪



🛒WHAT YOU RECEIVE



🟢 ready made laser cutting files for 3mm, 1/8''(3.175mm), 4mm, 5 mm, 6 mm, 1/4'' (6.35 mm) material thickness

🟢 detailed PDF-instructions with 3D pictures

🟢 each file is saved in SVG, DXF, CDR, AI formats

🟢 free support consultations and small adjustments



▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪



📧Feel free to contact me if you have any questions

😊 I always happy to help you
