Brother scan and cut- Understanding the setting screens
Posted on 27th August 2017
*note CM900 machine used.
1- Turn on your scan and cut machine.

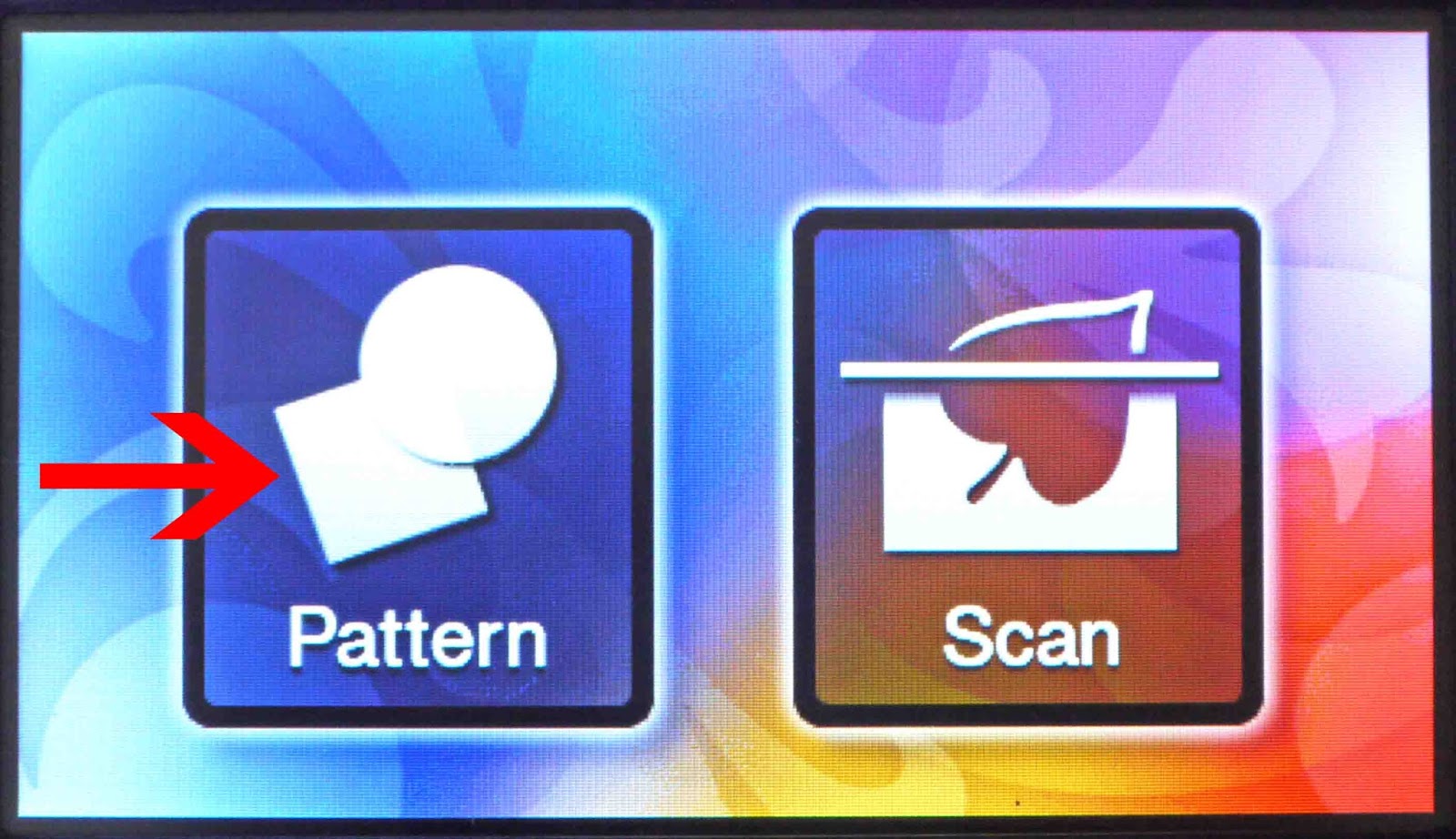

2- Click on the pattern icon.

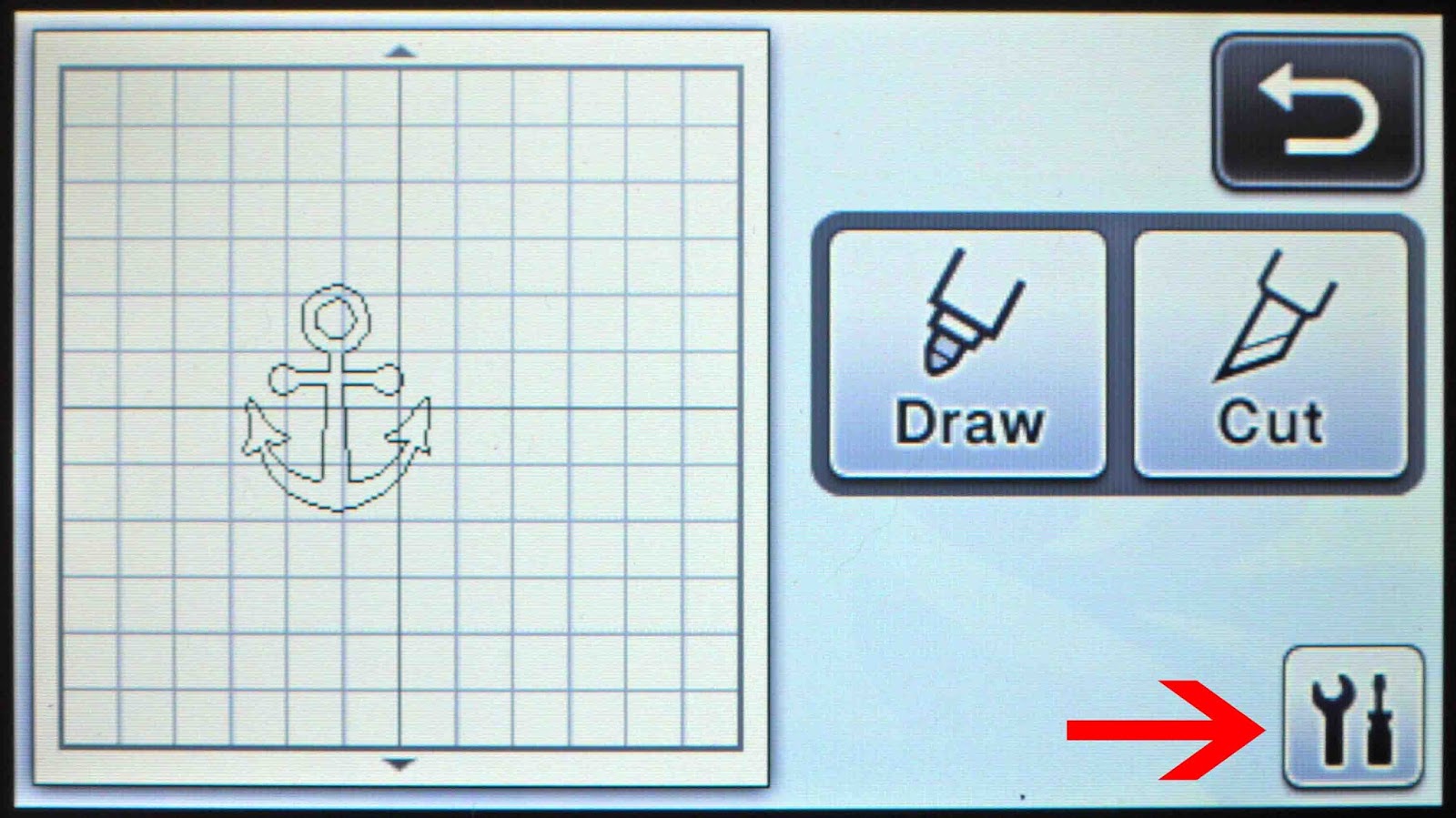

3- You can create your design once on the cut screen you can select the settings icon.
4- The settings icon has several screen which can help you correct and change different settings to help you cut and adjust your design.

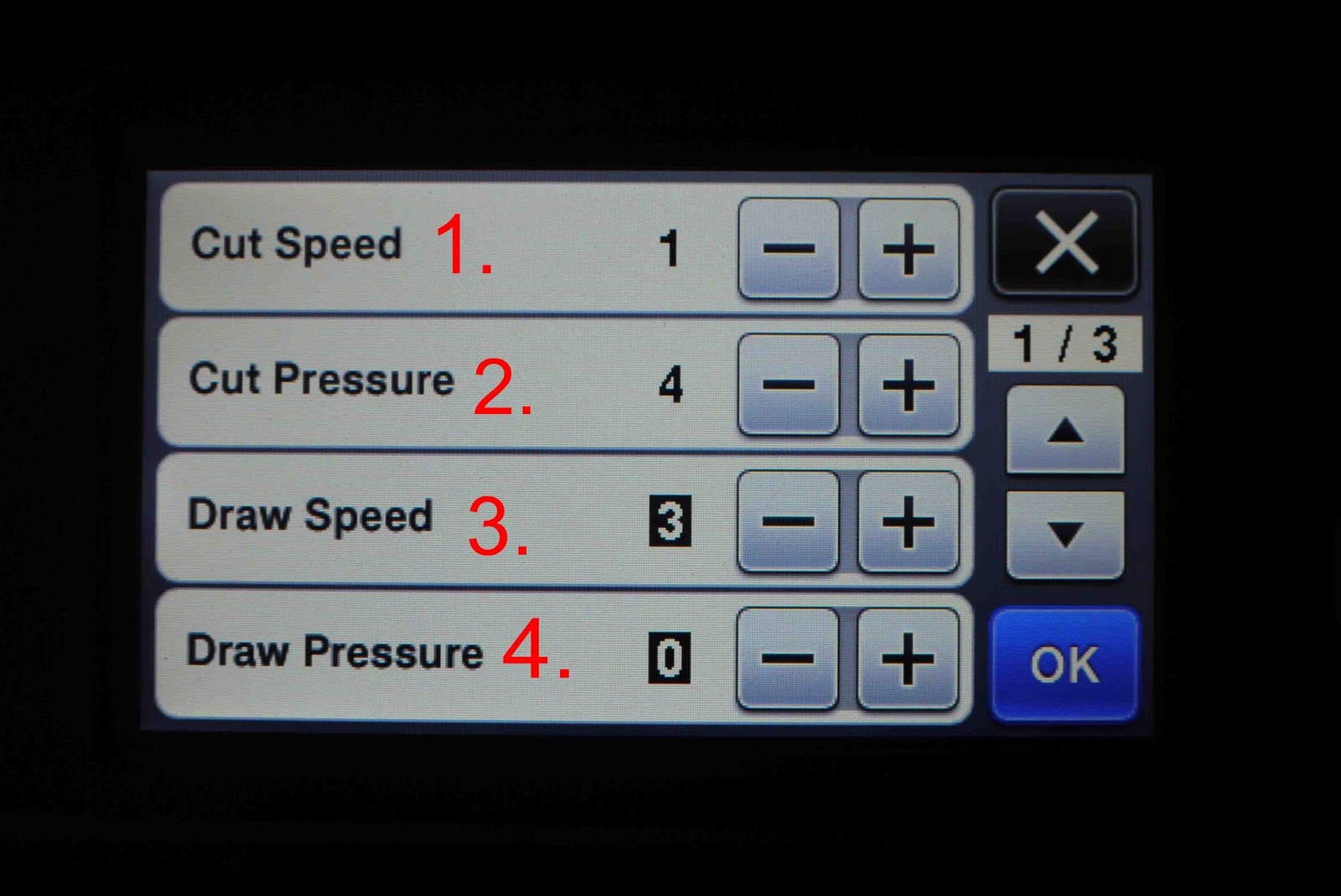

1- Cut speed- this can be changed dependent on the material you are cutting.
2- Cut pressure - change this to affect how much pressure that will be used when cutting the media.
3- Draw speed- when using the scan and cut markers you can change the speed.
4- Draw pressure - this will adjust how hard the pen will push on the media.
5- 1- Fill pattern- you can use this to change the background pattern if using the pen tool.
2- Fill line spacing- you can change the mm on this setting.
3- Fill direction- the angle that the pen will colour and fill in.

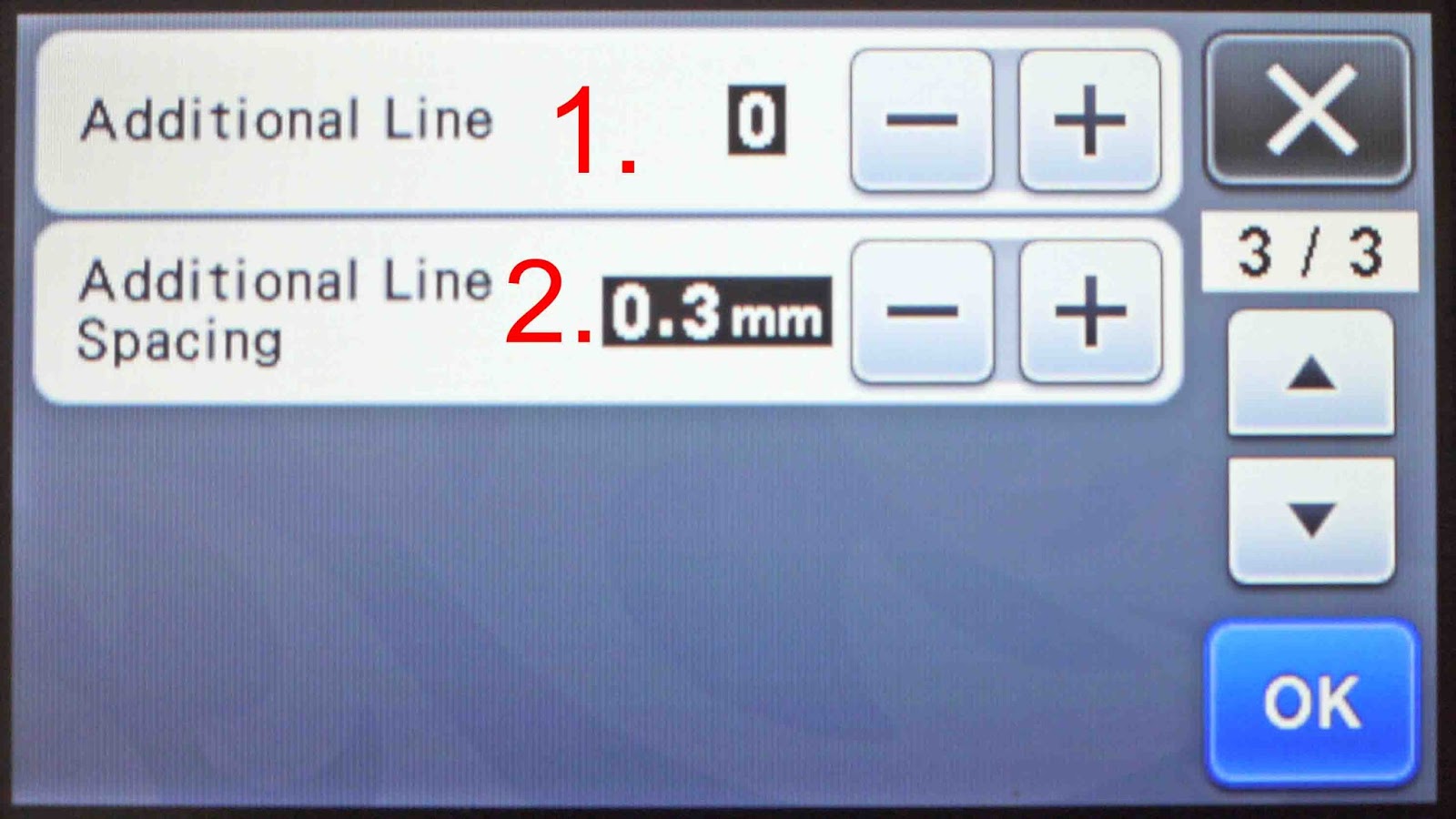

6- 1- Additional line- You can add additional lines when using the pen tool.
2- Additional line spacing- you can change the line spacing.

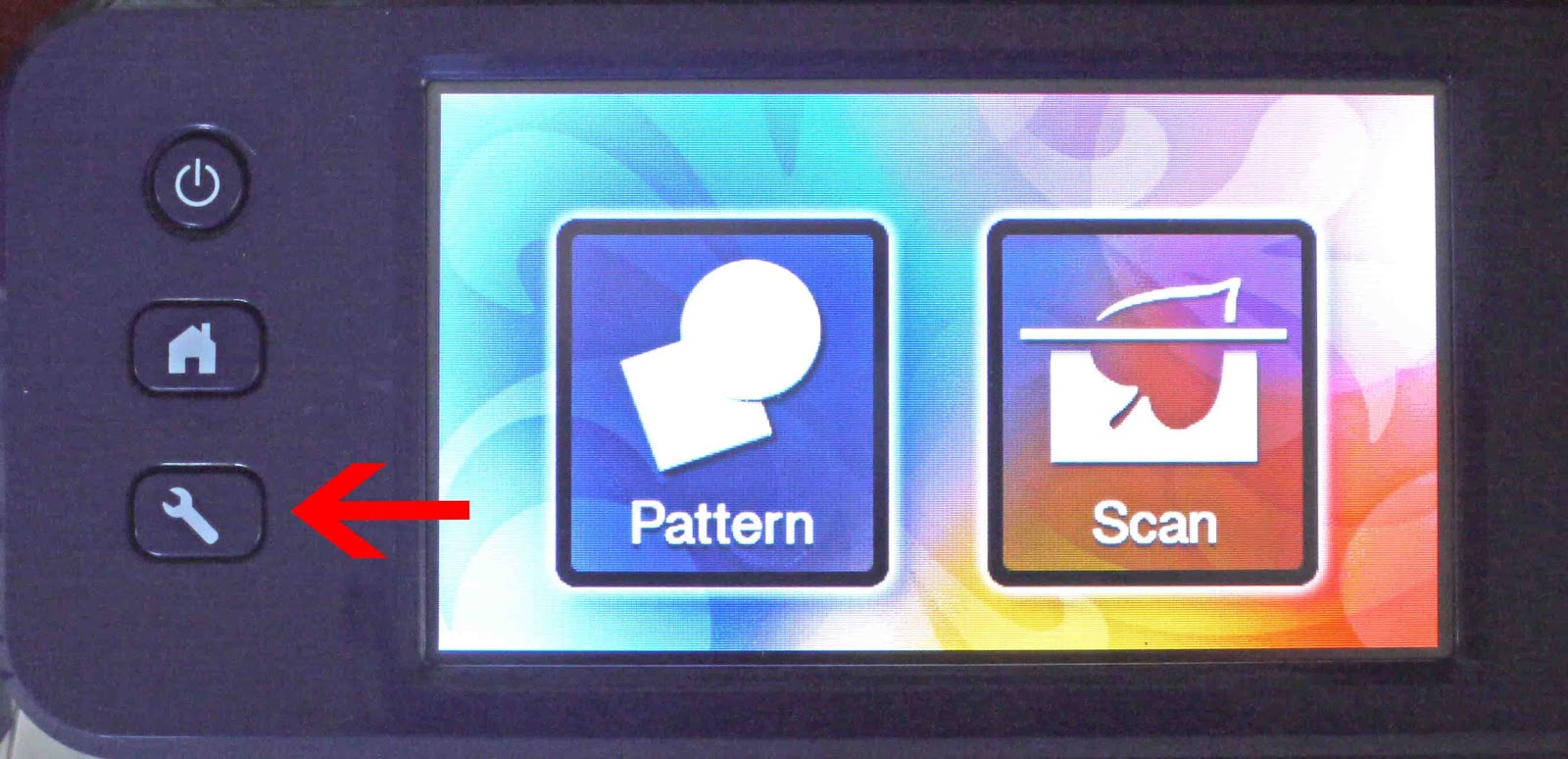

7- You also have a settings button on the actual machine. These settings are general ones for the working of the machine.

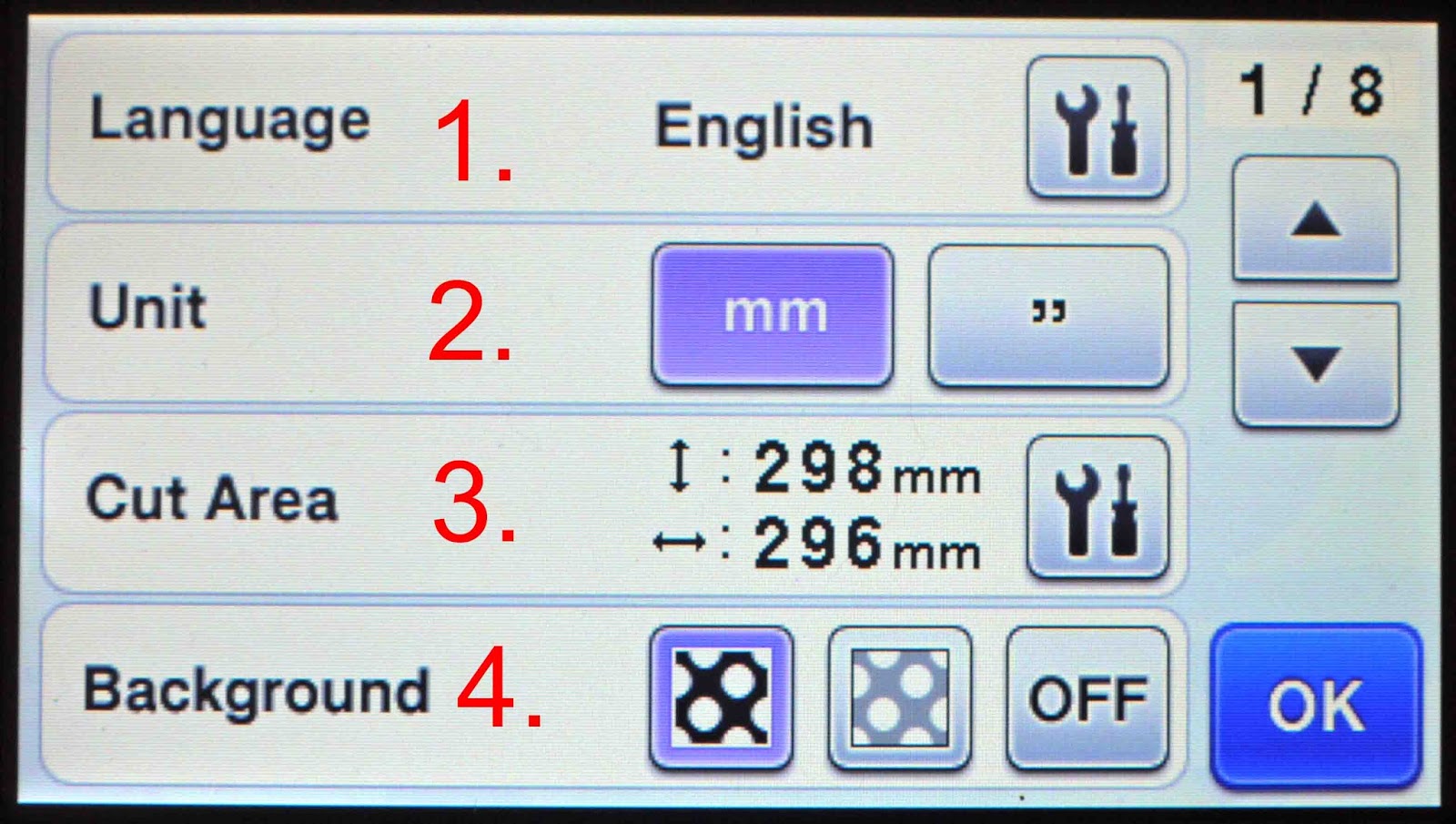

8- 1- Language
2- Metric/imperial change.
3- Cut area
4- Screen background.

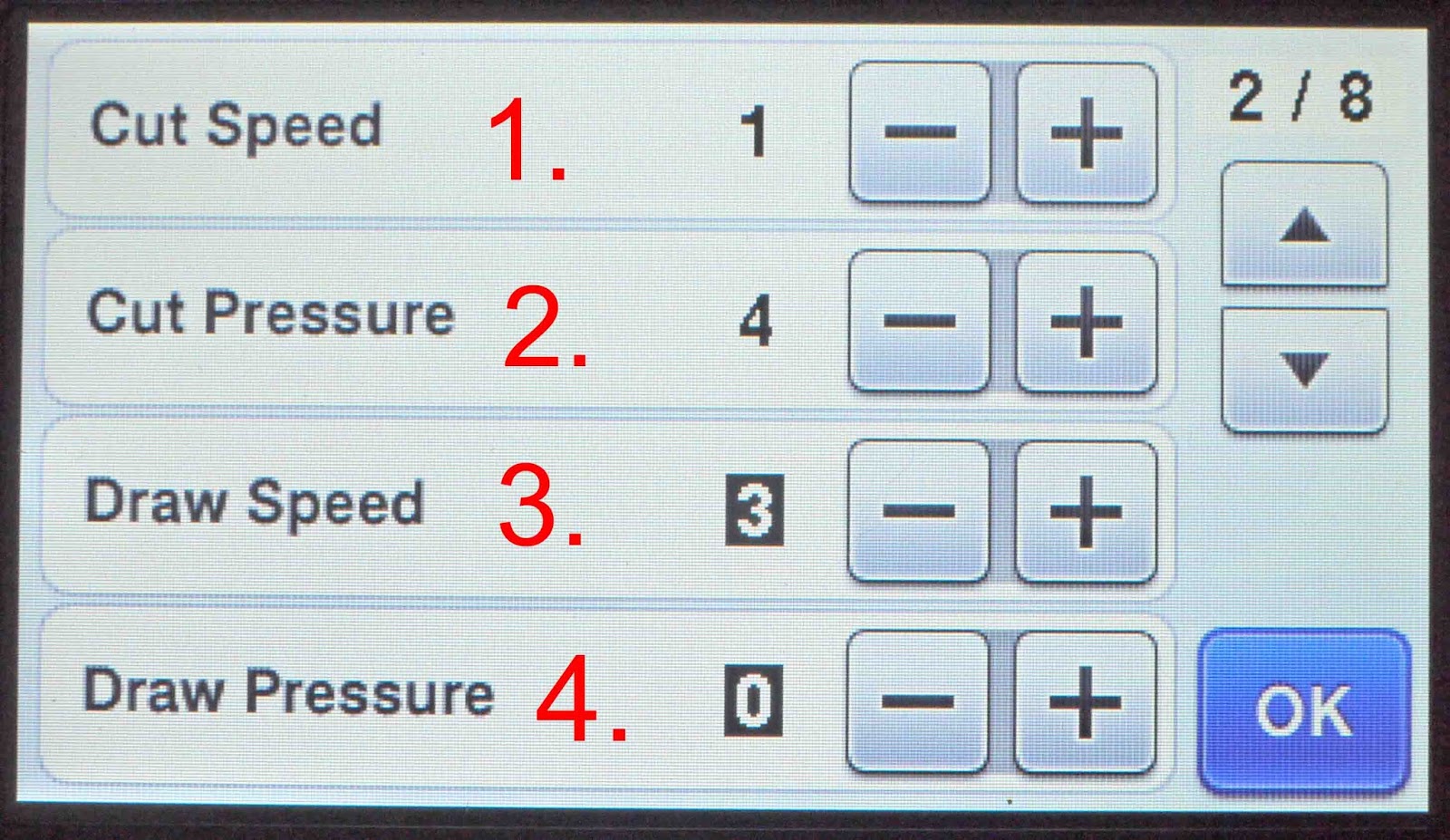

9- 1- Cut speed.
2- cut pressure.
3- Draw speed.
4- Draw pressure.

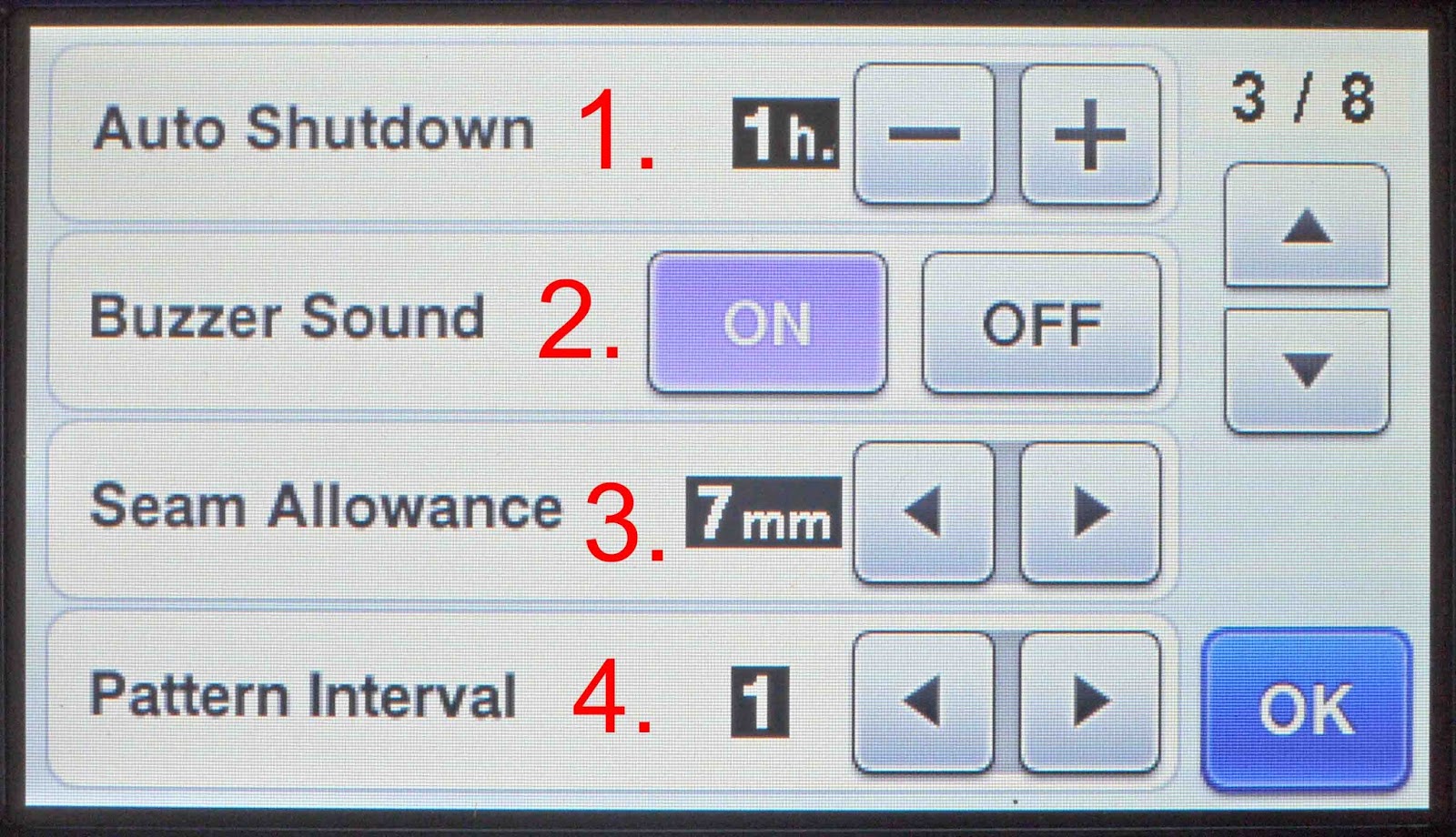

10- 1- Auto shutdown. The amount of time can be changed,
2- Buzzer sound.
3- Seam allowance- for quilting.
4- Pattern interval- set the spacing between patterns.

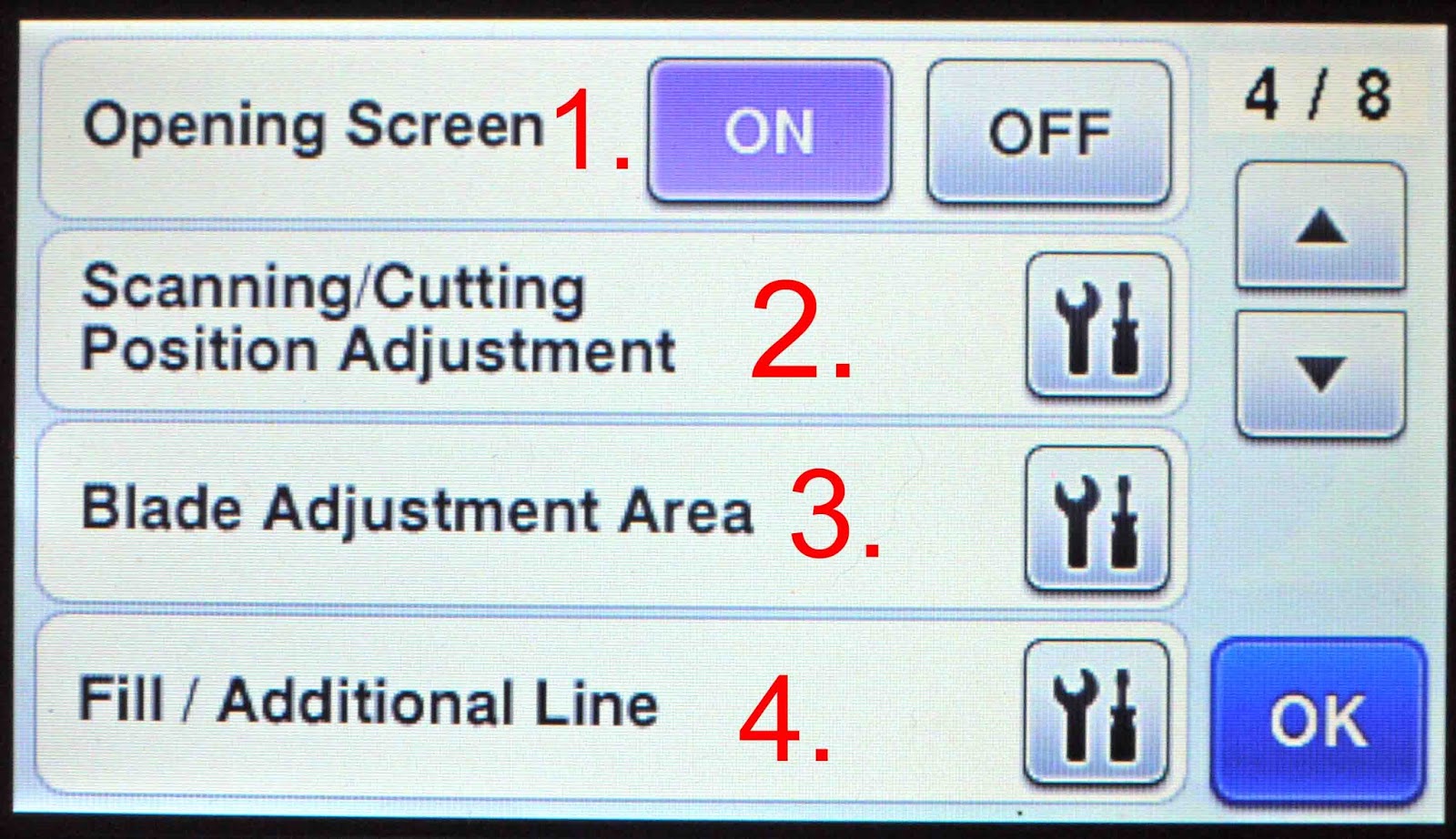

11- 1- Opening screen on/off option.
2- Position adjustment. To adjust the scanning and cutting position.
3- Blade adjustment area.
4- Fill/ additional line.

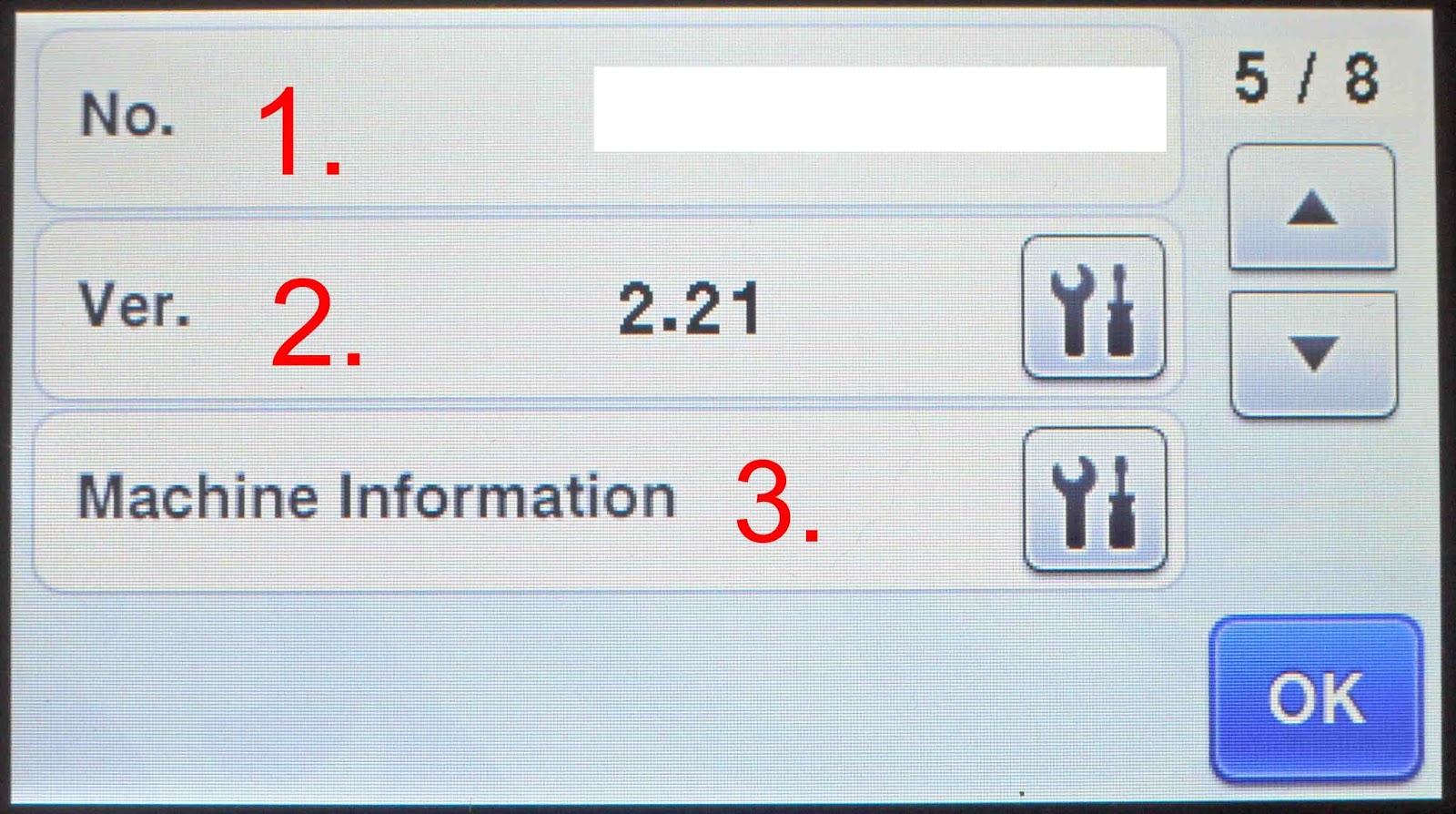

12- 1- Displays the serial number of the machine
2- Displays the software version that is being used.
3- Machine information. click on the icon to get the machine information.

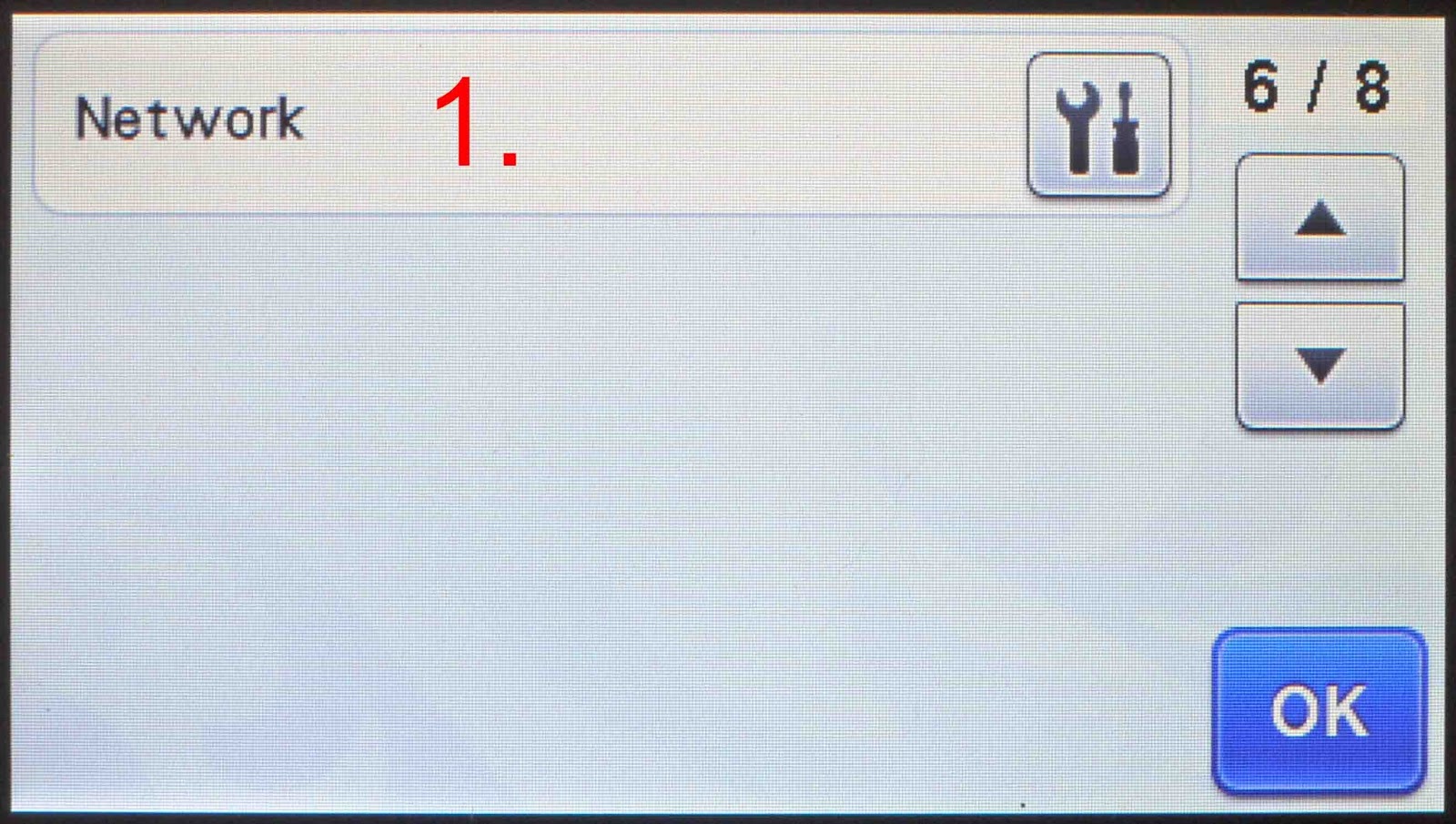

13- Network. Use this to set up a wireless network set up. * only certain models

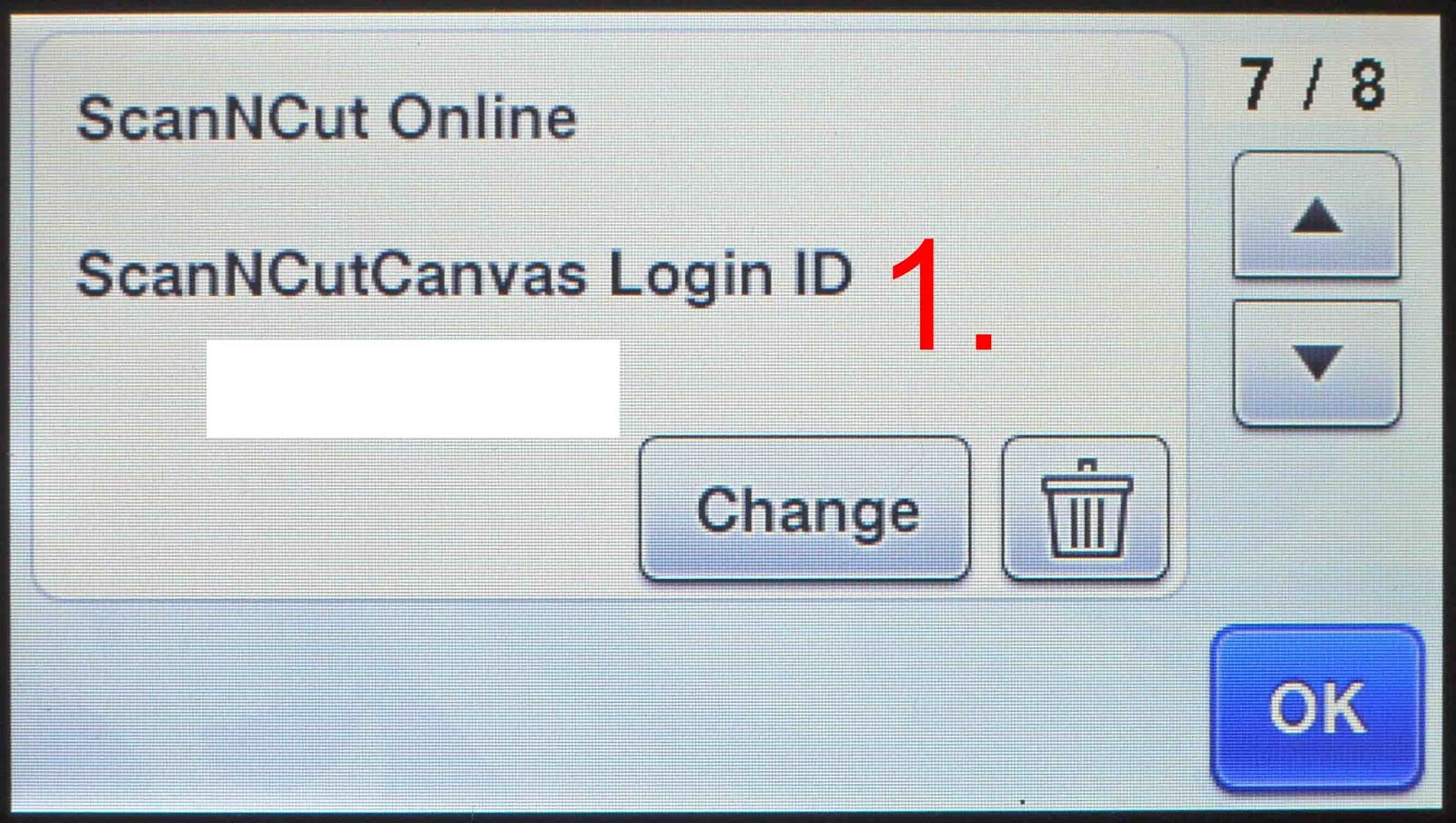

14- 1- Scan and cut online login ID.
15- 1- Premium functions. This is used when you purchase extra premium packs.
